3. Place the end of the maintenance hose in the oil receptacle and secure it in place.
4. Open the shut-off valve 11 .
5. Slowly open the shut off valve 7 in the maintenance hose to release oil and close immediately
when air escapes.
6. Close the shut-off valve 11 and unplug the male hose fitting.
Draining the oil from the cooler

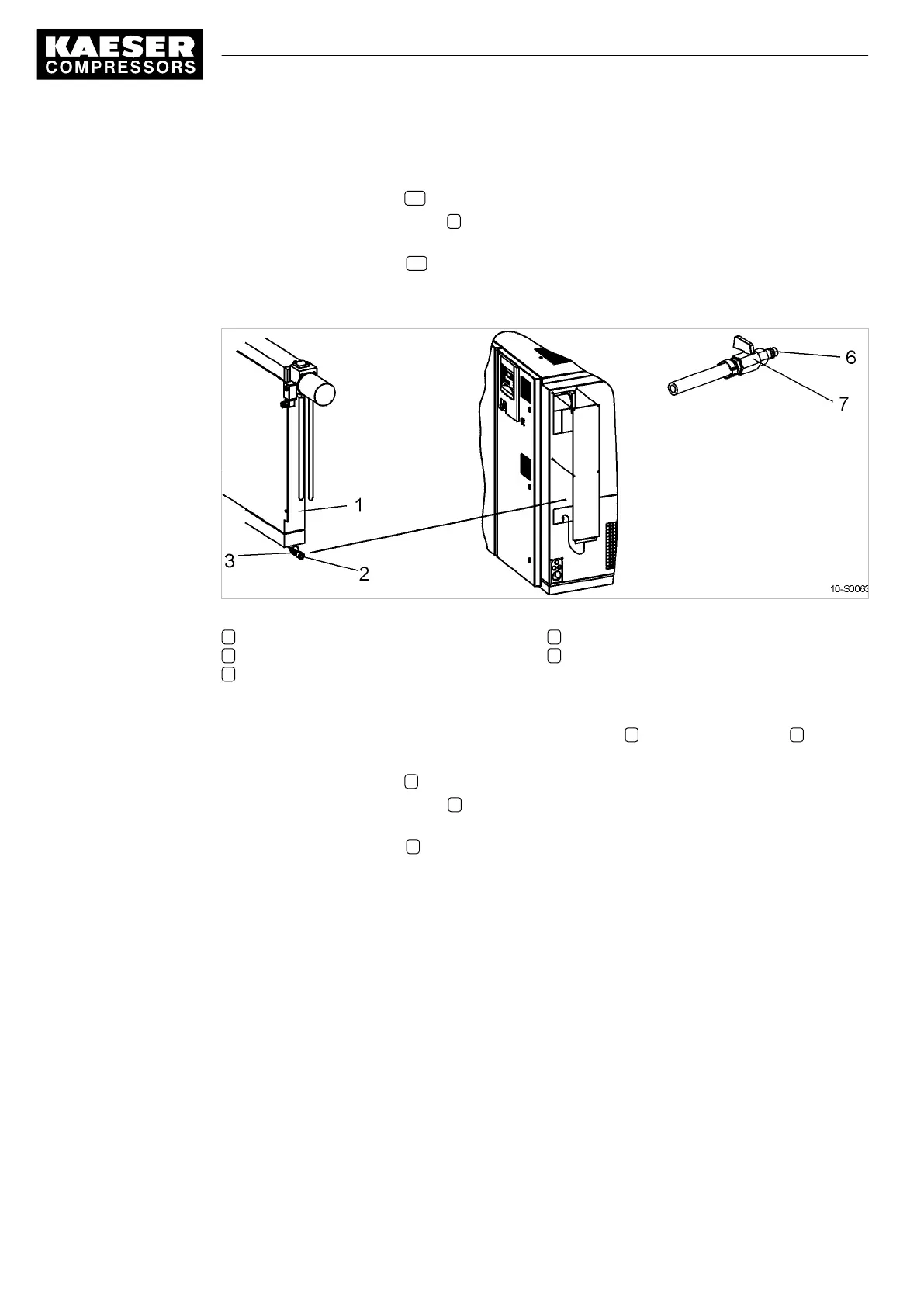

Fig. 33 Changing the cooling oil, oil cooler
1 oil cooler
2 Hose coupling (oil drainage)
3 Shut-off valve
6 Male hose fitting
7 Shut-off valve
1. Have an oil receptacle ready.
2. With the shut-off valve closed, insert the male hose fitting 6 into the hose coupling 2 .
3. Place the end of the maintenance hose in the oil receptacle and secure it in place.
4. Open the shut-off valve 3 .
5. Slowly open the shut-off valve 7 and allow cooling oil and air to escape completely until the
pressure gauge reads 0 psig.
6. Close the shut-off valve 2 and unplug the male hose fitting.
10 Maintenance
10.15 Changing the Cooling Oil
76
Service Manual Screw Compressor
ASD T Tri-Voltage 9_5721 06 USE
