Item Description Function
9 «enter» Only affects the value in the third line of the display.
Enters the selected menu option.
Exits the edit mode and saves.
10 «Events and
information»
Displays the event memory.
Selection is possible from every menu.
Return with «esc» key.
11 «Reset» Signifies recognition of alarms and warning messages.
Resets the event memory (when permitted).
Tab. 34 Keys

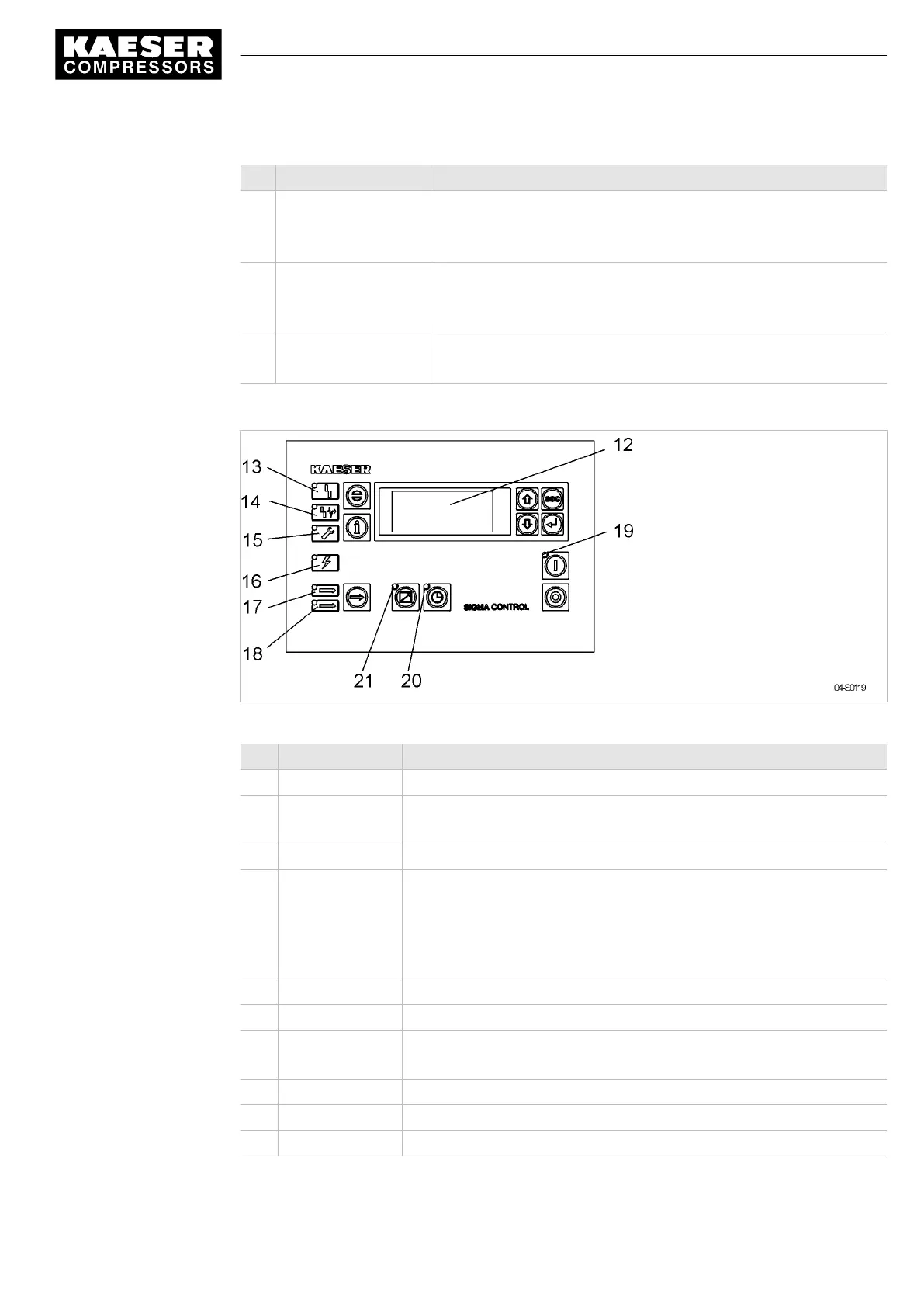

Fig. 12 Indicators
Item Description Function
12 Display field Alphanumeric display with 4 lines.
13 Alarm Flashes red when an alarm occurs.
Lights continuously when acknowledged.
14 Communication Lights red if communication via the Profibus interface is interrupted.
15 Warning Flashes yellow for:
■ maintenance work due,
■ warning messages
Lights continuously when acknowledged.
16 Controller power Lights green when the power supply to the controller is switched on.
17 LOAD Lights green when the compressor is running under LOAD.
18 IDLE Lights green when the compressor is running in IDLE.
Flashes when the «LOAD/IDLE» toggle key is pressed.
19 Machine ON Lights green when the machine switched on.
20 Clock The LED lights when the machine is in clock control.
21 Remote control The LED lights when the machine is in remote control.
Tab. 35 Indicators
4 Design and Function
4.9 SIGMA CONTROL Keys and Indicators
9_5721 06 USE
Service Manual Screw Compressor
ASD T Tri-Voltage
31
