KAESER ASD T Series User Manual

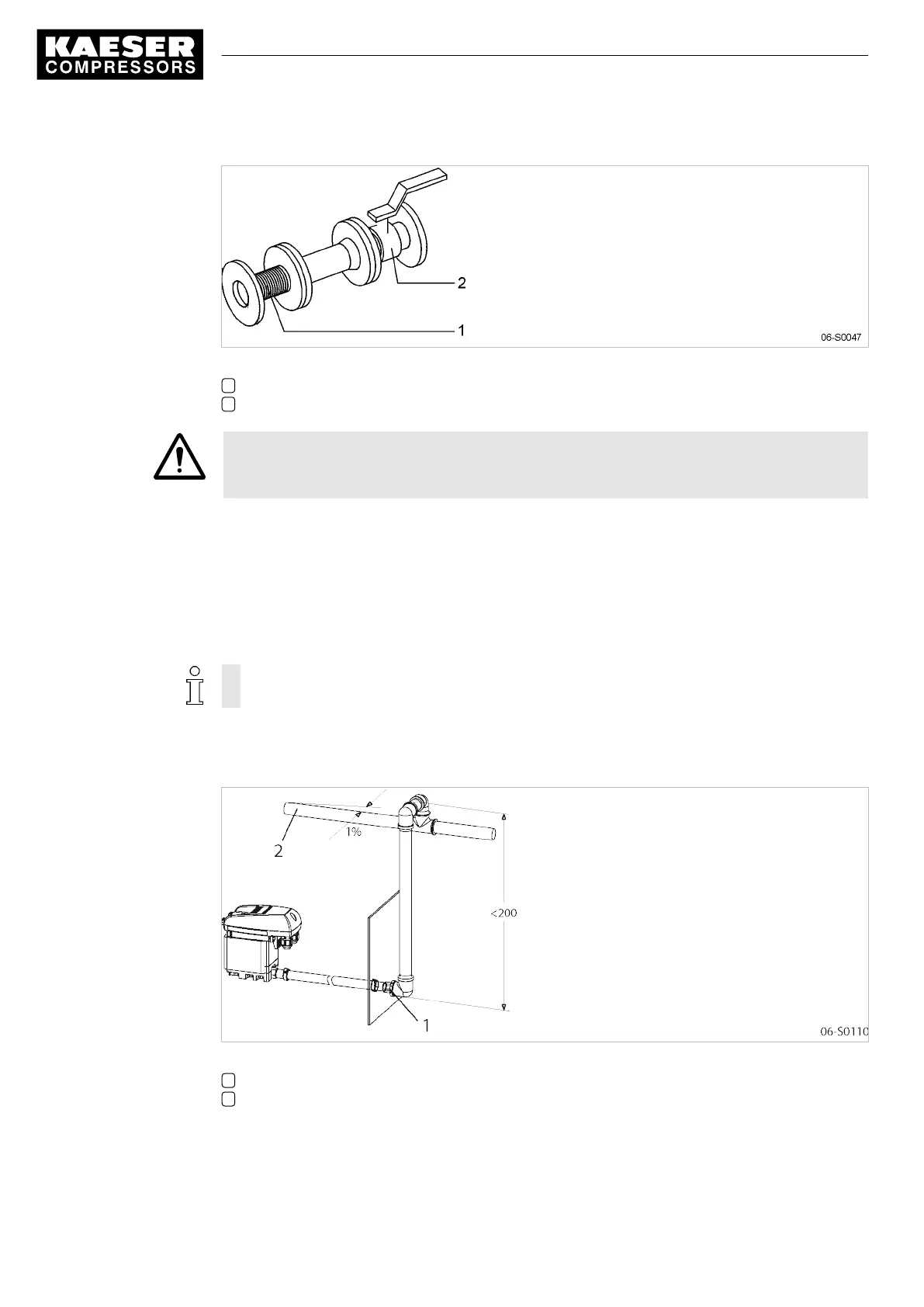

Fig. 14 Compressed air connection
1 Axial compensator or hose
2 Shut-off valve
WARNING
Serious injury or death can result from loosening or opening components under pressure.
➤ Vent all pressurized components and chambers completely.
1. A shut off valve must be installed by the user in the connection line.
2. Make the compressed air connection with an axial compensator or hose.
6.4 Connecting the condensate drain
A threaded hose connection is provided to connect the drain hose to the condensate drain outlet.
Condensate must drain freely.
The illustration shows typical installations.
Condensate flows into the collecting line from above, thereby preventing any backflow to the com‐
pressor.
Fig. 15 Condensate drain dimensions [inch]
1 Threaded connection
2 Condensate collecting line
➤ Connecting the condensate drain line.
6 Installation
6.4 Connecting the condensate drain
36
Service Manual Screw Compressor
ASD T Tri-Voltage 9_5721 06 USE
