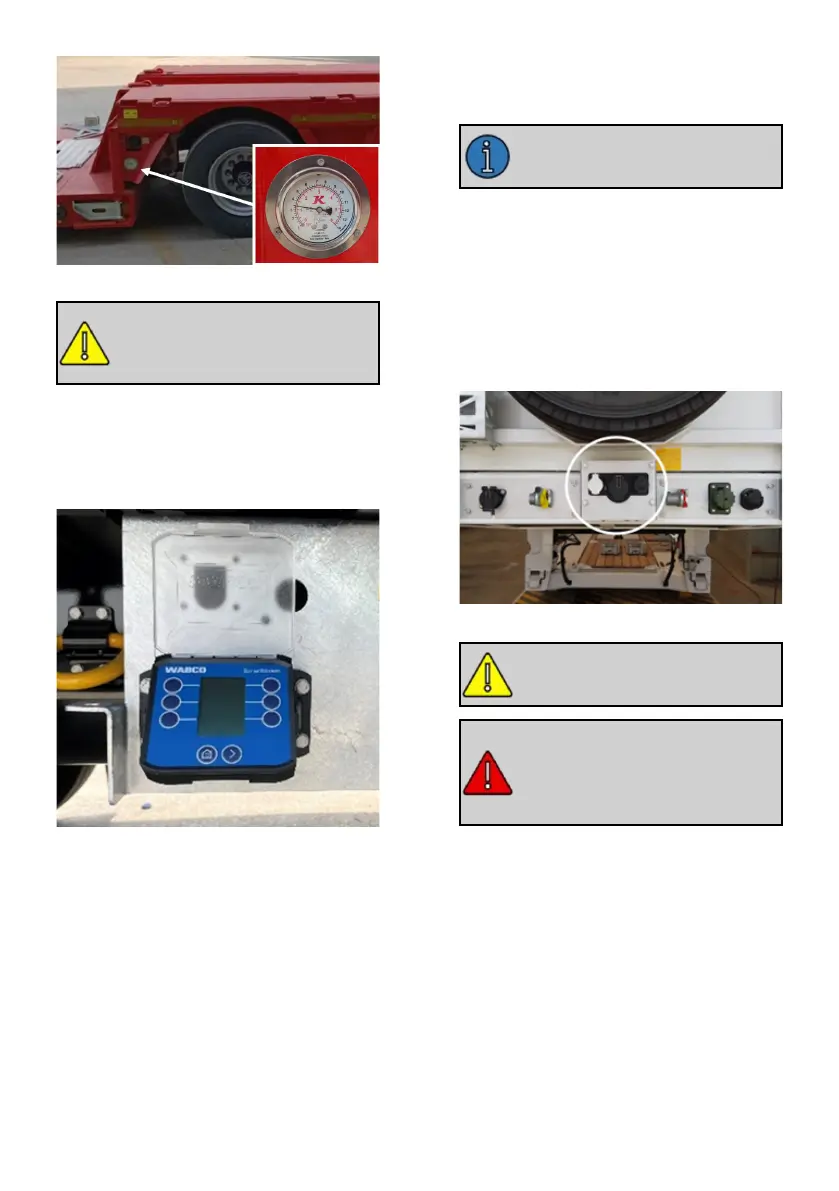

Manometer
This manometer shows only
the estimated axle load. It can-
not be used as a legal
measurement.
3.2.5. Smartboard (Info Center)
Thanks to Smartboard, the operator may
see failure codes, axle load etc. informa-
tion and control the axle lifting system.
Smartboard
The functions provided by the Smart-
board are as follows:
• It can be used as a control panel in
vehicles with ECAS (including dou-
ble level).
• AKS load indicator
• Diagnostic memory
• Lift axle control for vehicles with au-
tomatic axle lift
If your Smartboard includes the battery,
you may use some control even if the
truck is not connected.
You may check Smartboard
user Manuel for the detail
information.
3.3. Electrical System
15-pin socket (ISO 12098) + 2x7-pin
socket (ISO 1185 (24N) / ISO 3731
(24S)) are used to supply the lighting
system in our vehicles. With the help of a
15-pin socket or a 2x7-pin socket, you
can supply electricity from the truck to
your vehicle.
Electrical system
When driving, the electrical
sockets between the truck
and trailer must be connected.
Please be sure that the truck
and trailer are suitable for the
norms/standard about electri-
cal systems. Otherwise, elec-
trical problems will occur.
3.3.1. 15 Pin Socket
This system provides electricity for the
electrical system on the vehicle like stop
lamps, signal lamps etc. 15 pin socket
connections are made according to ISO
12098.
Open the protection cover and mount
the sockets regularly.
You may find extra information about the
pins function in below.
