Kässbohrer LOW-LOADER Series - King Pin Assembly Bolt; Changement of King Pin

77 / 84

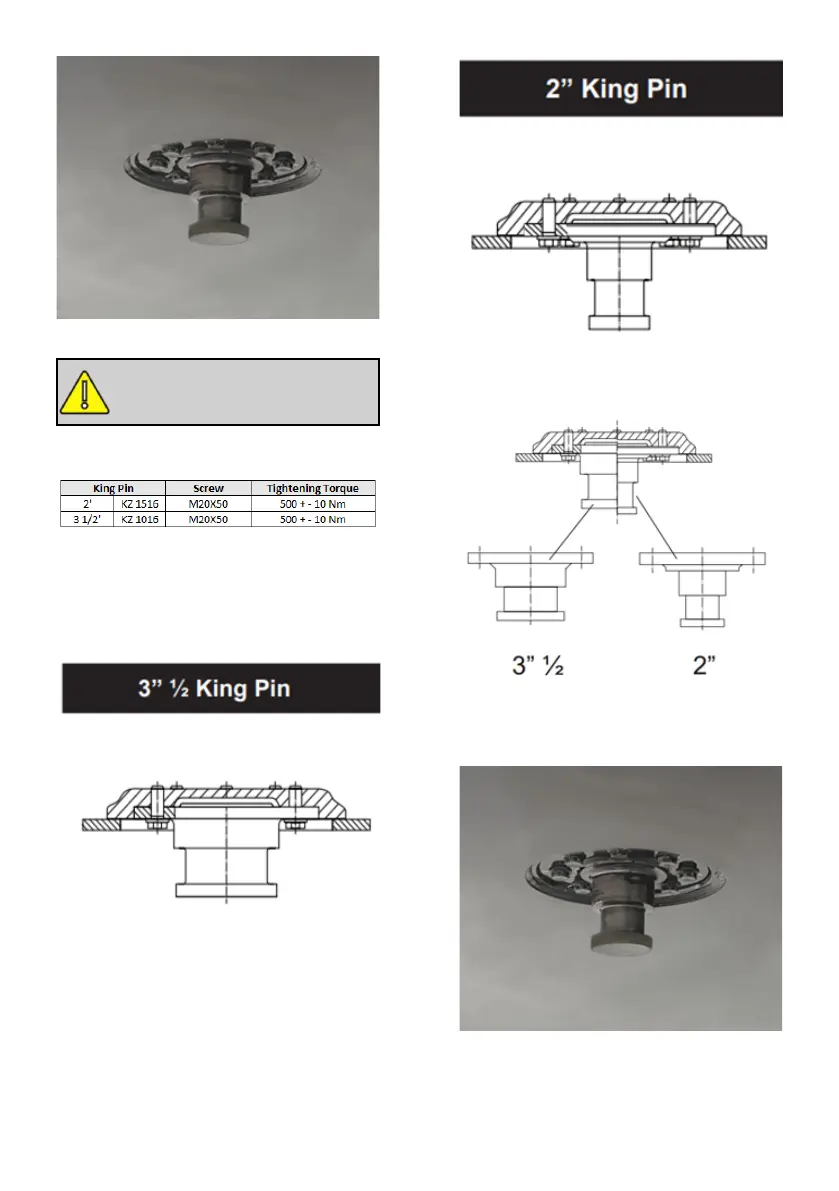

King Pin
If the wearing on the king pin
is bigger than 2 mm, the king
pin must be replaced.
8.8.1. King Pin Assembly Bolt
8.8.2. Changement of King Pin
The King Pin's slot on the gooseneck is
suitable for mounting the following pins
(alternatively):
3.5 inch king pin
2 inch king pin
Comparison of 2 inch and 3.5 inch king pins
King Pin
Changing the King Pin can be done sim-
ply by removing the 8 bolts on it.
