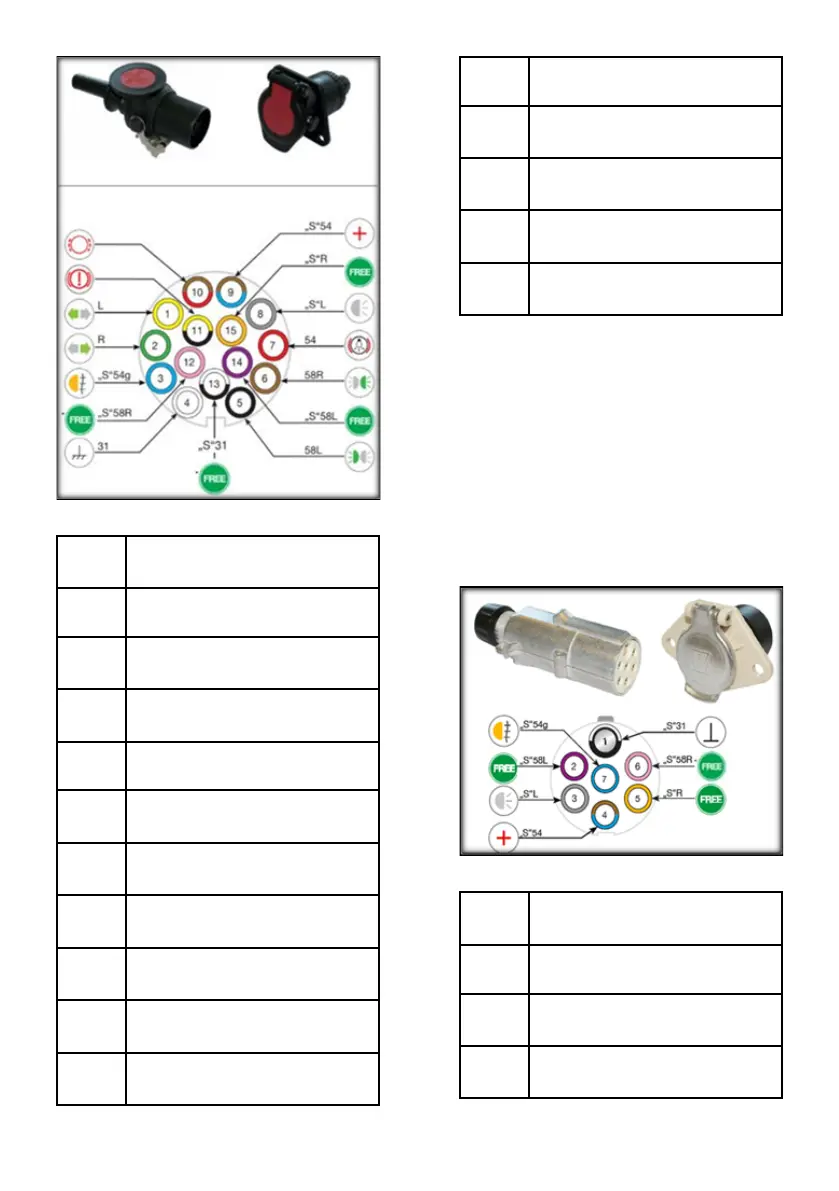

ISO12098 Socket
Pin Explanation
1 Left indicator
2 Right indicator
3 Fog lamp
4 Ground
5 Left taillight
6 Right taillight
7 Brake light
8 Reverse light
9 Supply line
10 Empty
11 EBS
12 Empty
13 Empty
14 Empty
15 Empty
3.3.2. 2x7 Pin Socket
This system provides electricity for the
electrical system on the vehicle like stop
lamps, signal lamps etc. 2x7 pin socket
pin connec-tions are made suitable for
24S ISO 3731 and 24N ISO 1185 norm.
Open the protection cover and mount
the sockets regularly.
You may find extra information about the
pins function in below.
ISO3731 Socket
Pin Explanation
1 Ground
2 Empty
3 Reverse light
