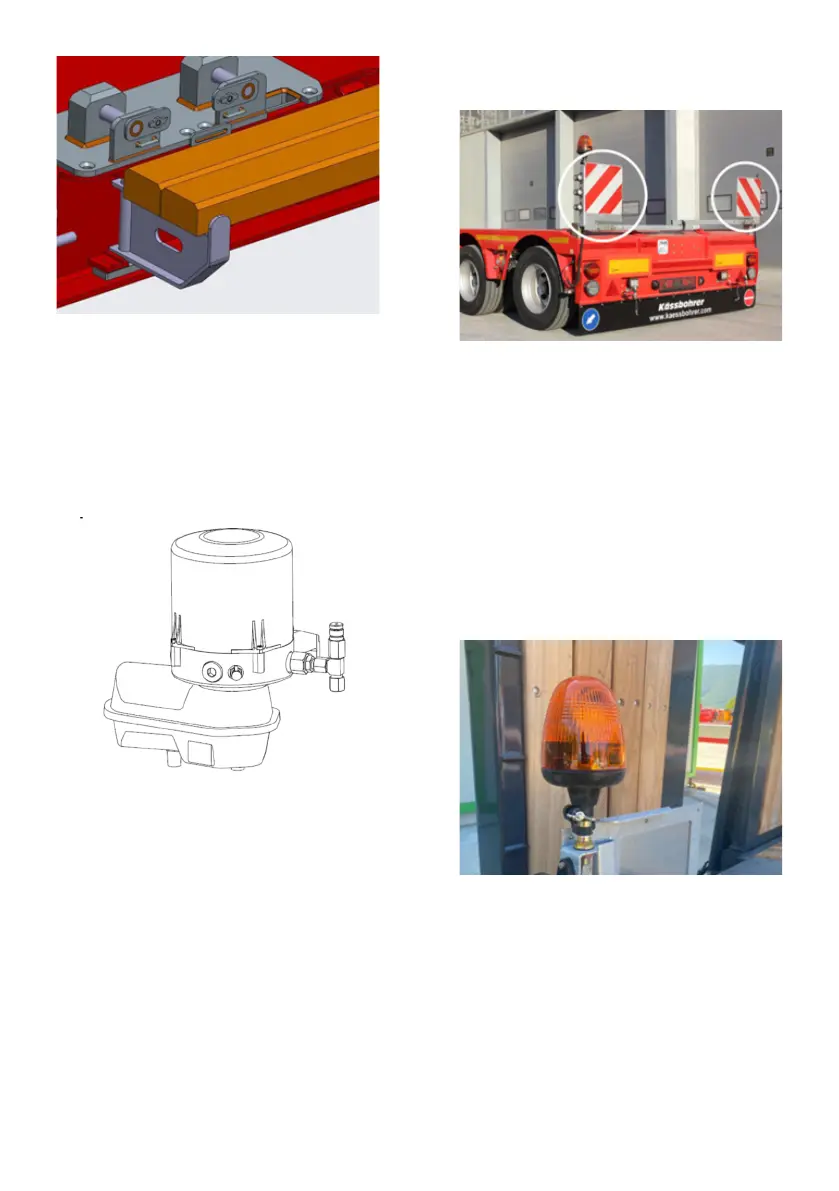

Side extension woods
3.16. Lubrication System
Your vehicle may have an automatic lu-
brication system that allows the axles,
steering system and/or tail lift to be
steered. For more detailed information
about the lubrication system, see the
manufacturer's manual.
Lubrication Pomp
3.17. Warning Signs
It is used to warn other drivers when the
transported loads are wider than the
trailer. To use the expansion labels, loos-
en the 2 thumbscrews on the brackets.
Extend the expansion label as long as
you want, then slide the expansion label
until the holes on the expansion label
profile and the fixing bracket match up.
When the holes match each other, tight-
en the wing bolt that meets this hole.
Then tighten the contra nut on this bolt
for safety. In this way, you fix the expan-
sion label. Then tighten the other wing
bolt and tighten the lock nut on it. Thus,
you reduce the vibration by taking the
space in the expansion label.
Warning signs
3.18. Rotating Warning Lamp
A warning lamp is used to warn other
drivers while the vehicle is loaded in traf-
fic. When the parking lights are turned
on from the truck, the rotating warning
lamp also comes on. There are a total of
4 rotating warning lamp sockets on the
vehicle warning signs.
Rotating warning lamp can be supplied
as bulb or LED according to customer
request.
Bulp rotating warning lamp
