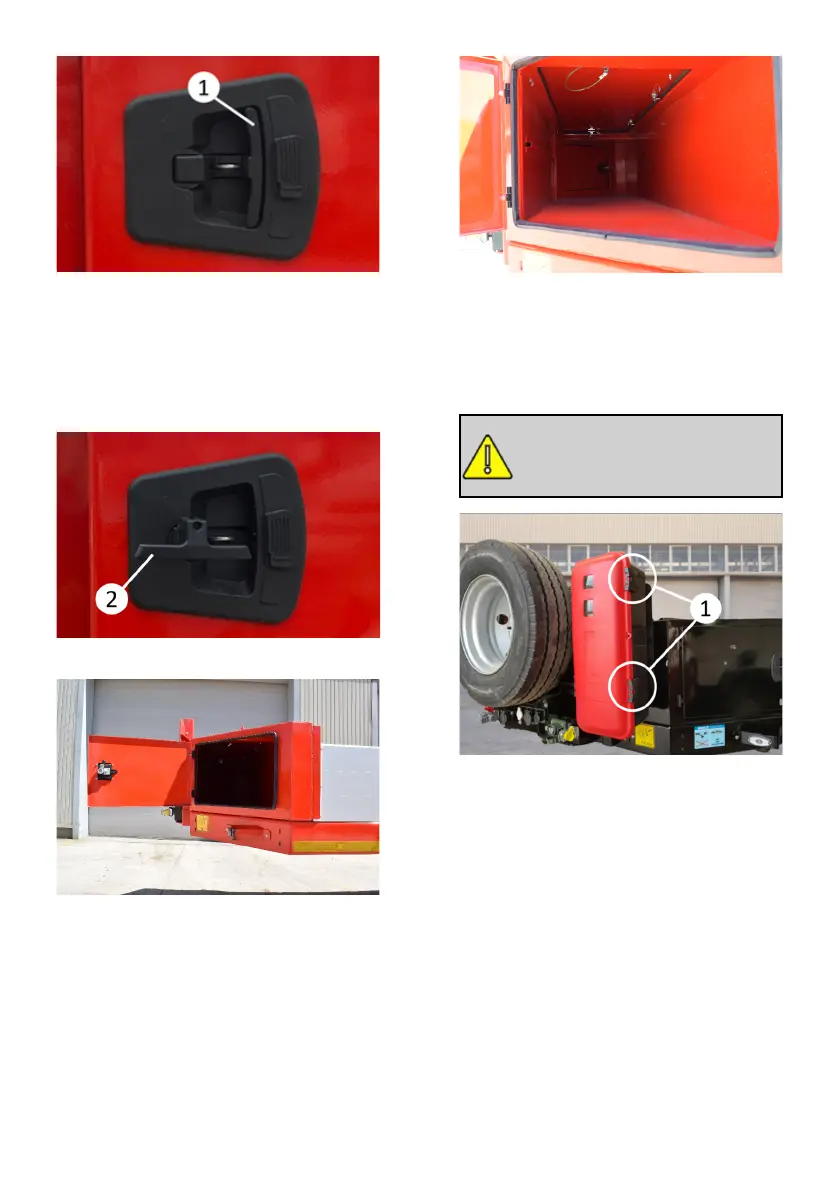

Side cover lock and latch(1)
• Pull the latch (1) on the side cover
lock and remove it.
• Turn the removed latch clockwise
(2). The cover has been opened.
Removing and turning the latch
Opening the corner door
Inside of The cabinet
3.11.2. Fire Extinguisher Cabinet
Fire extinguisher cabinets are used to
protect fire extinguishers from the exter-
nal environment.
Maintenance of fire extinguis-
hers should be done regularly
and expiry dates should be
observed.
Latchs of fire extinguisher cabinet
Opening door
• Open the two plastic latches (1)
holding the cover.
• Lift the latch up and back and un-
latch the cover to open it.
• Open the Velcro that fastening the
fire extinguisher and take the fire
extinguisher.
Closing door
• Place the fire extinguisher and fix it
with Velcro.
