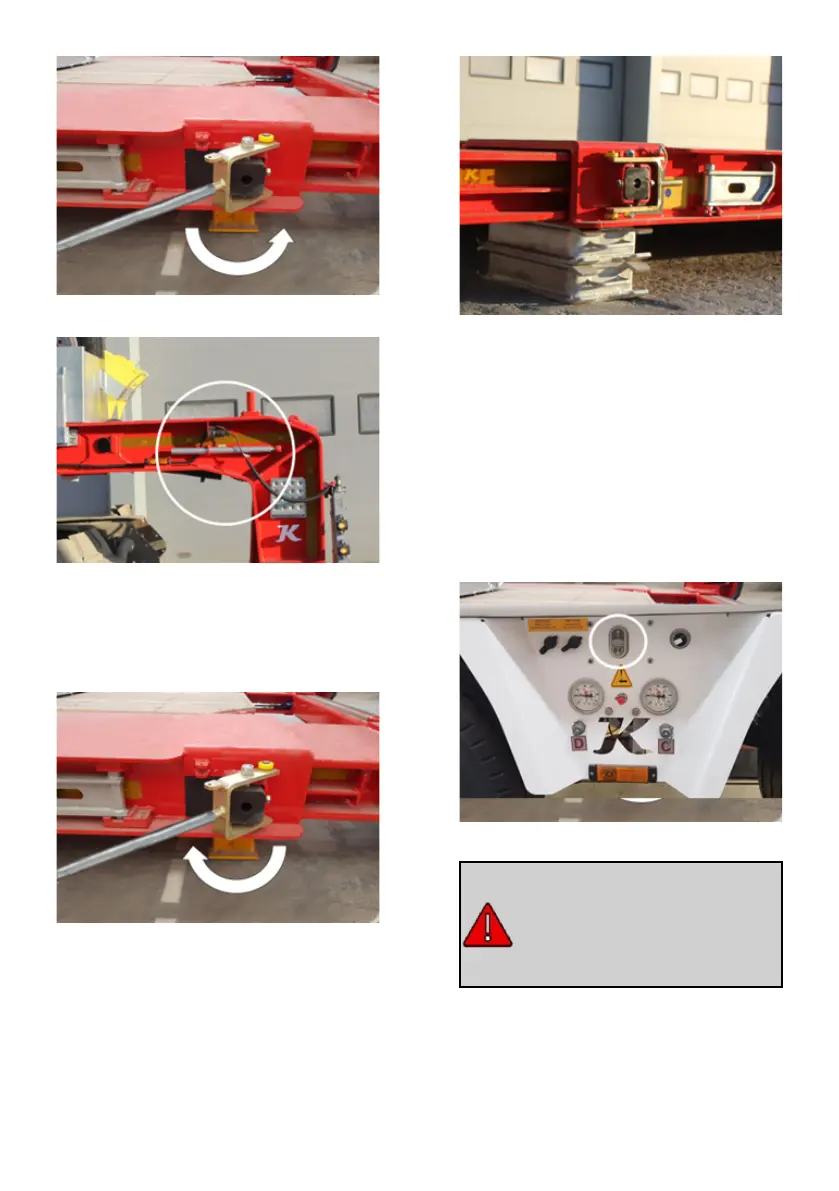

Opening the lock
Position of the screw lever
6)Shorten the tool until it passes the slot
one back of the desired length.
7)Close the lock.
Closing the lock
8) Make sure that the lever is closed by
pushing the lever of the open lock with
your foot. When the locks come into the
slot, the locks will fit into the slot. If one
of the locks is closed and the other is
not, move the vehicle to the right or left
with the truck to ensure that the lock is
seated and insert the safety pin.
Closing the lock
9) Disengage the parking brake of the
vehicle.
3.14.3. Lengthening and Shortening
the Vehicle with Intermediate Platform
Attachment and Removal [Option]
• Depending on the option on the ve-
hicle, raise the axle area to the high-
est level with the lowering/lifting
button or the lowering/lifting valve.
Lifting/Lowering axle buttons
Do not disconnect any electri-
cal or hydraulic connections
before lowering/lifting opera-
tion. Otherwise, the pool chas-
sis and hydraulic equipment
may be damaged.
• Place the aluminum supports under
the platform by connecting the plat-
form from the marked places in the
picture and lifting it with a crane.
