59 / 84

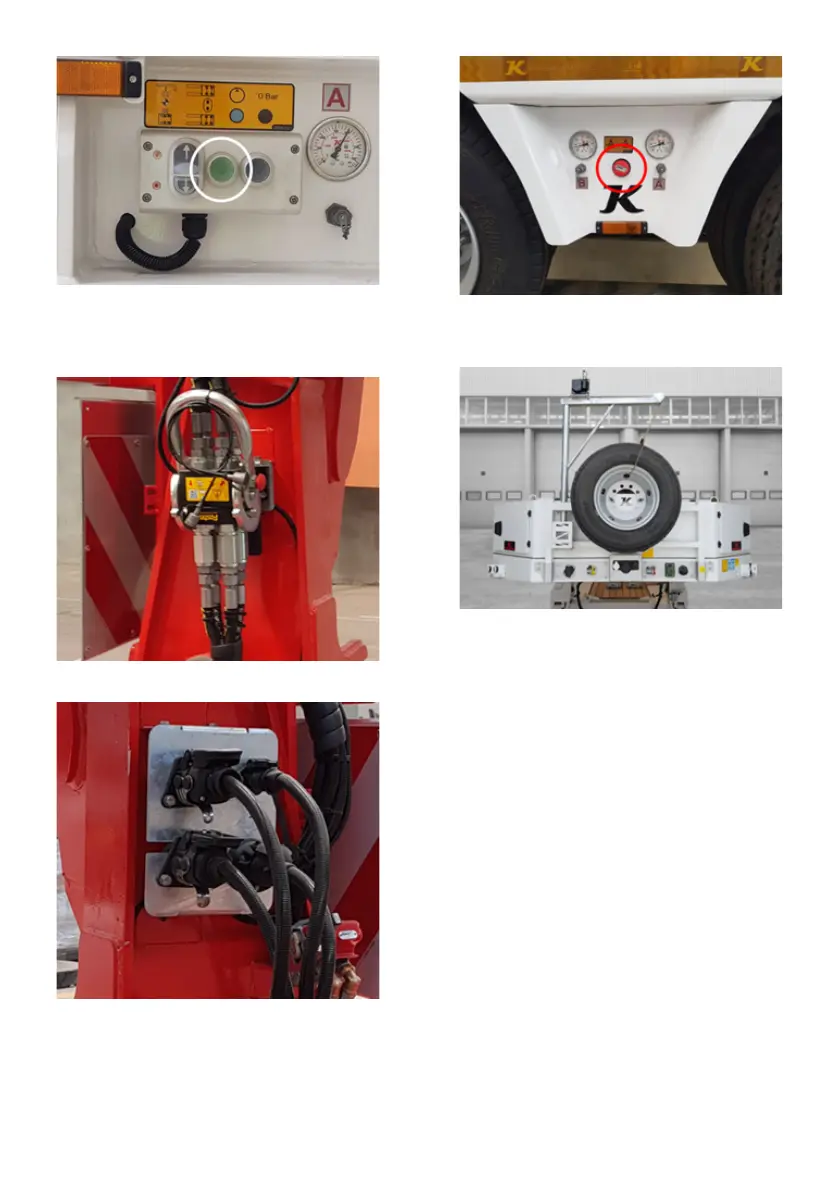

Pump start button
7)Connect the hydraulic, pneumatic and
electrical connections
Hydraulic multi quick coupling
Electrical connections
8) Disengage the parking brake. (Press
the red button.)
Red button
4.1.2. Front Panel
Front area of gooseneck
Couplings, electrical sockets, spare
wheel holder, corner bevel tool cabinet
are located in the front area of
gooseneck.
Spare wheel and spare wheel crane can
be supplied according to customer's
request.
4.1.3. Side Panel
4.1.3.1. Side Panel Covers
The Gooseneck area is surrounded by
covers made of aluminum profiles.
These covers and the pillars on which
the covers are placed can be removed
from the vehicle when necessary.
Lengths, widths and heights may vary
according to customer request.
• Pull the aluminum covers upwards
and remove them from the slide.
To Next Page
