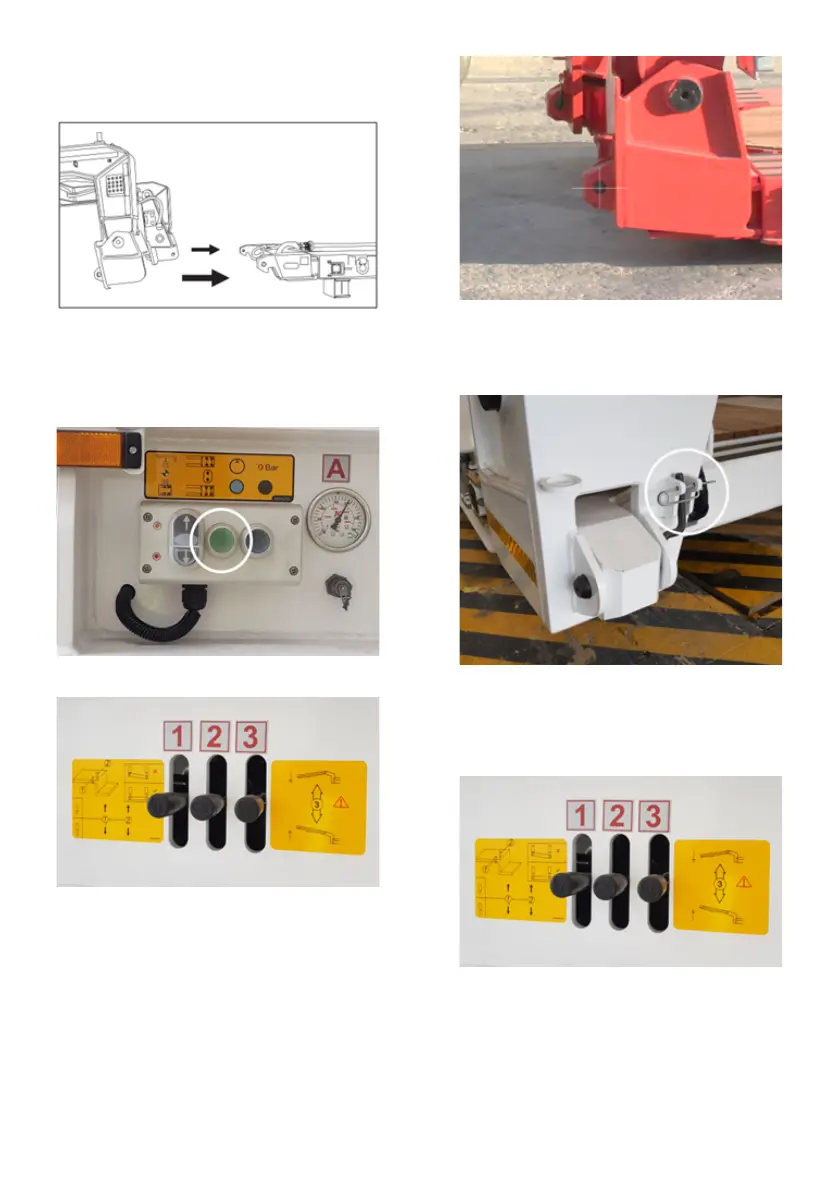

4.1.1.2.2. Gooseneck Connecting
1)Approach to the trailer with the truck.
Approaching to the trailer with the truck.
2)If necessary, keep the pump start but-
ton pressed and adjust the height of the
gooseneck with the number 3 lever.
Pump start button
Hydraulic control levers
3)When the hook is on the console, keep
the pump start button pressed and cen-
ter the hole in the gooseneck and the
hole in the hook with the lever number 3
as seen in the picture.
Centering the holes
4) Attach the safety pin and the goose-
neck pin shown in the picture.
Attaching the safety pin
5) Keeping the pump start button
pressed, lift the gooseneck separation
console from the levers 1 and 2.
Hydraulic command levers
6) Keeping the pump start button
pressed, lift the gooseneck from the lev-
er number 3 and take the supports under
the pool.
