take the wheel chock from its slot by pull-
ing it sideways from the wheel chock
holder.
Placing the wheel chock from Its hold-
er: Place the wheel chocks on the hold-
ers and mount the cotter pin (1) to pin.

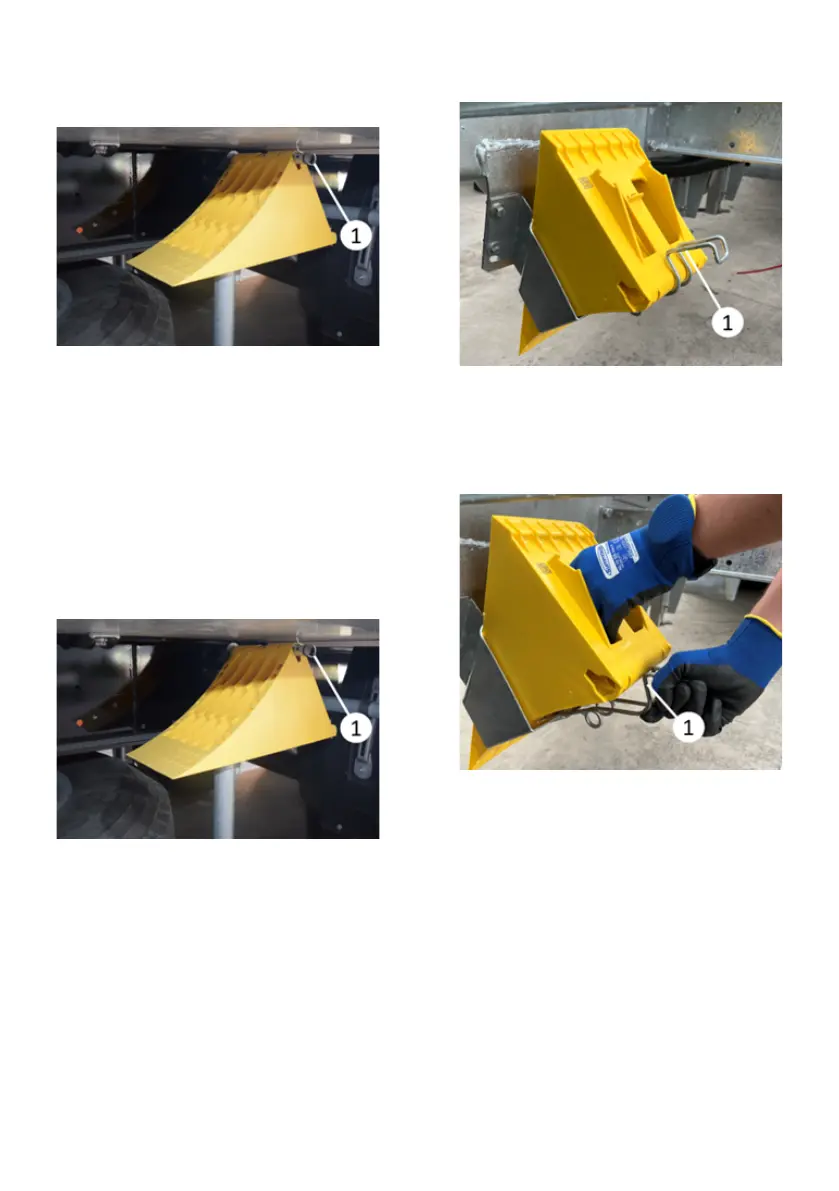

3.10.1.1. Pin Type Wheel Chock
Holder
Removing the wheel chock from hold-
ers:Pull out the cotter pin (1) located at
the end of the wheel chock holder. Then
take the wheel chock from its slot by pull-
ing it sideways from the wheel chock
holder.
Placing the wheel chock from Its hold-
er: Place the wheel chocks on the hold-
ers and mount the cotter pin (1) to pin.
3.10.1.2. Pocket Type Wheel Chock
Holder
Removing the wheel chock from hold-
ers:Remove the wheel chocks by push-
ing the handle (1) which is located at the
end of the chock's holder from the wheel
chock to the other side.
Removing the wheel chock from holders:
Placing the wheel chock from Its hold-
er: Insert the wheel chock by pulling the
handle (1) which is located at the end of
the wheel chock's holder.
