1-12 Performance Verification Model 2701 Service Manual
Verifying DC current
Check DC current accuracy by applying accurate DC currents from the DC current calibra-
tor to the AMPS input of the Model 2701 and verifying that the displayed readings fall within
specified limits.
Follow these steps to verify DC current accuracy:
1. Connect the Model 2701 AMPS and INPUT LO jacks to the calibrator as shown in
Figure 1-3. Be sure the INPUTS switch is in the FRONT position.

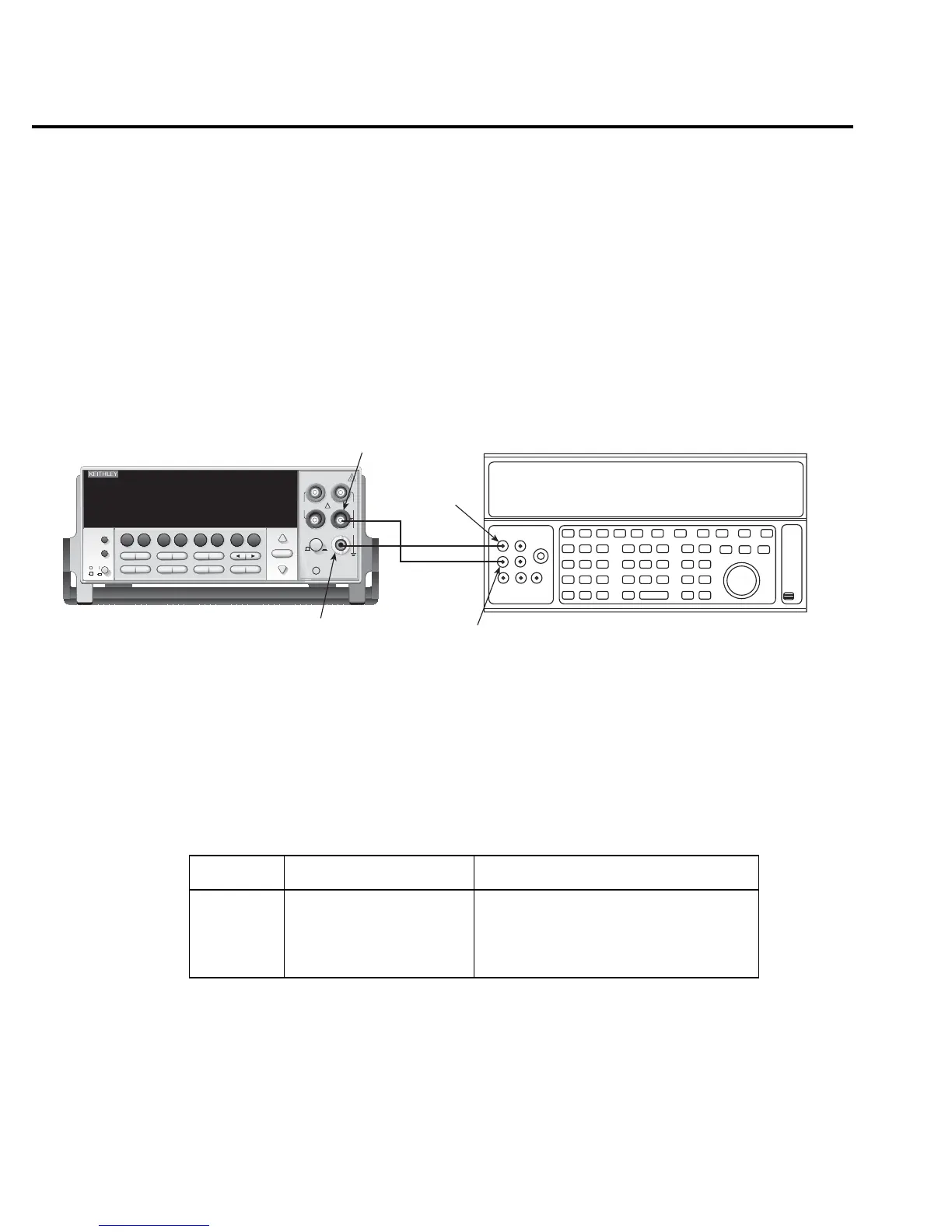

Figure 1-3
Connections for Model 2701 DC current verification
2. Select the DC current measurement function by pressing the
DCI
key.
3. Set the Model 2701 for the 20mA range.
4. Source positive and negative full-scale currents for each of the ranges listed in
Table 1-4 and verify that the readings for each range are within stated limits.
Table 1-4
DCI limits
DCI range Applied DC current* Reading limits (1 year, 18°C to 28°C)
20mA
100mA
1A
3A
20.0000mA
100.0000mA
1.000000A
3.000000A**
19.98840 to 20.011160mA
99.8700 to 100.1300mA
0.999120 to 1.000880A
2.99628 to 3.00372A
* Source positive and negative currents with values shown.
** If the Fluke 5725 amplifier is not available, apply 2.2A from calibrator. Reading limits for 2.2A
input are: 2.197240 to 2.202760A.
!
