Keithley 2701 Service Manual

Model 2701 Service Manual Performance Verification 1-25
Verifying resistance
Check resistance by connecting accurate resistance values to the Model 7700 and verifying
that its resistance readings are within the specified limits.
CAUTION Do not apply more than 300V between plug-in module INPUT or SENSE
H and L terminal, or between any adjacent channels, or instrument dam-
age could occur.
Follow these steps to verify resistance accuracy:
1. Using shielded Teflon or equivalent cables in a 4-wire configuration, connect the
Model 7700 CH1 H and L INPUT terminals and CH11 H and L SENSE terminals to
the calibrator as shown in Figure 1-12.

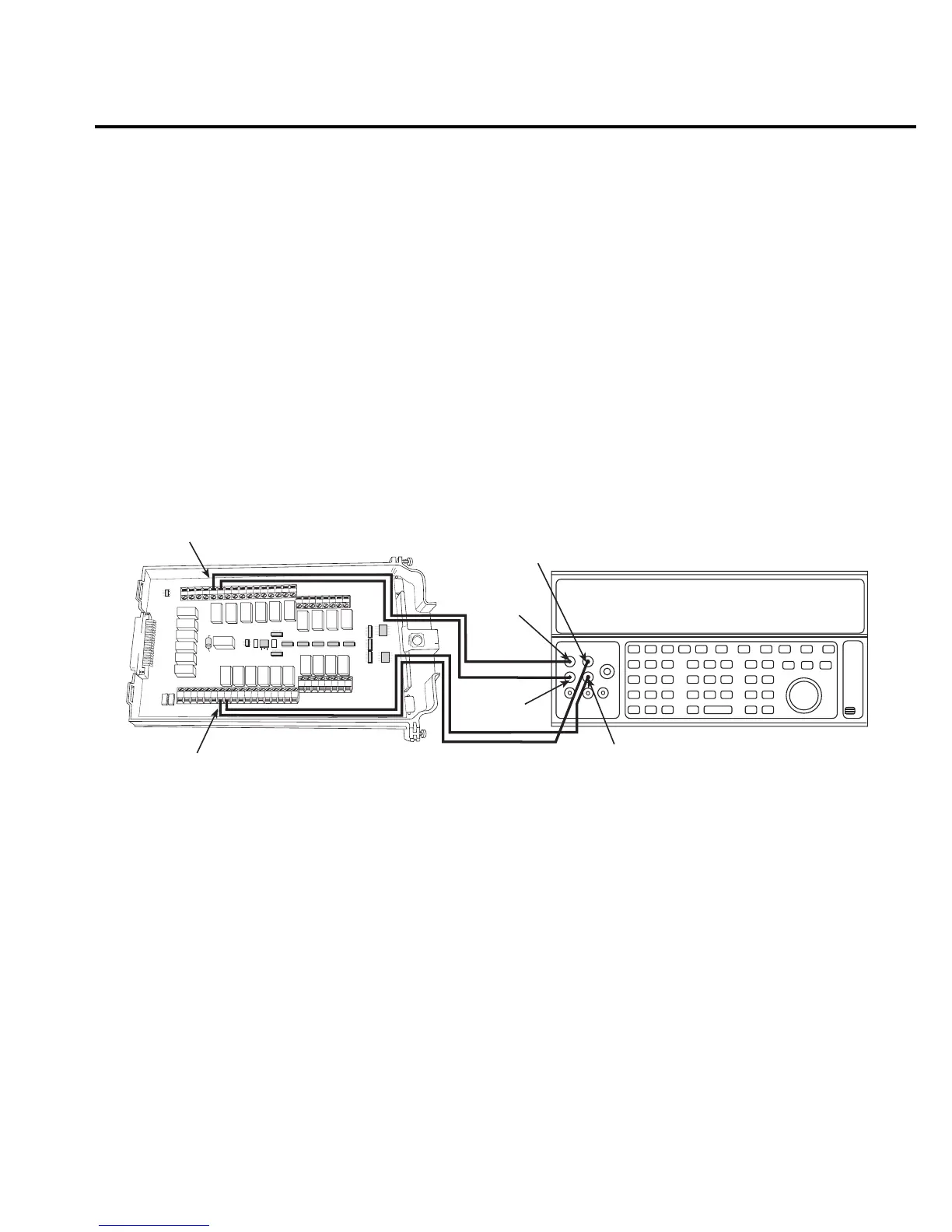

Figure 1-12
Connections for Model 7700 resistance verification (100Ω to 10MΩ ranges)
HLHL
AMPS
HLHLHLHLHLHL
LO
CH21 CH22 CH11 CH12 CH13 CH14 CH15 CH16
HLHLHLHL
CH17 CH18 CH19 CH20
SENSE
(OHMS, 4 WIRE)
INPUT
(V, 2 WIRE)
HLHLHLHL
CH7 CH8 CH9 CH10
HLHL
HLHL
HLHL
HLHL
INPUT SENSE
CH1 CH2
CH3
CH4
CH5
CH6
CH1
CH11
Output
HI
Output
LO
Resistance Calibrator
Note: Use shielded, low-thermal cables
to minimize noise. Enable or disable
calibrator external sense as indicated
in procedure.
Model 7700
Sense HI
Sense LO
