Model 2701 Service Manual Routine Maintenance 3-3

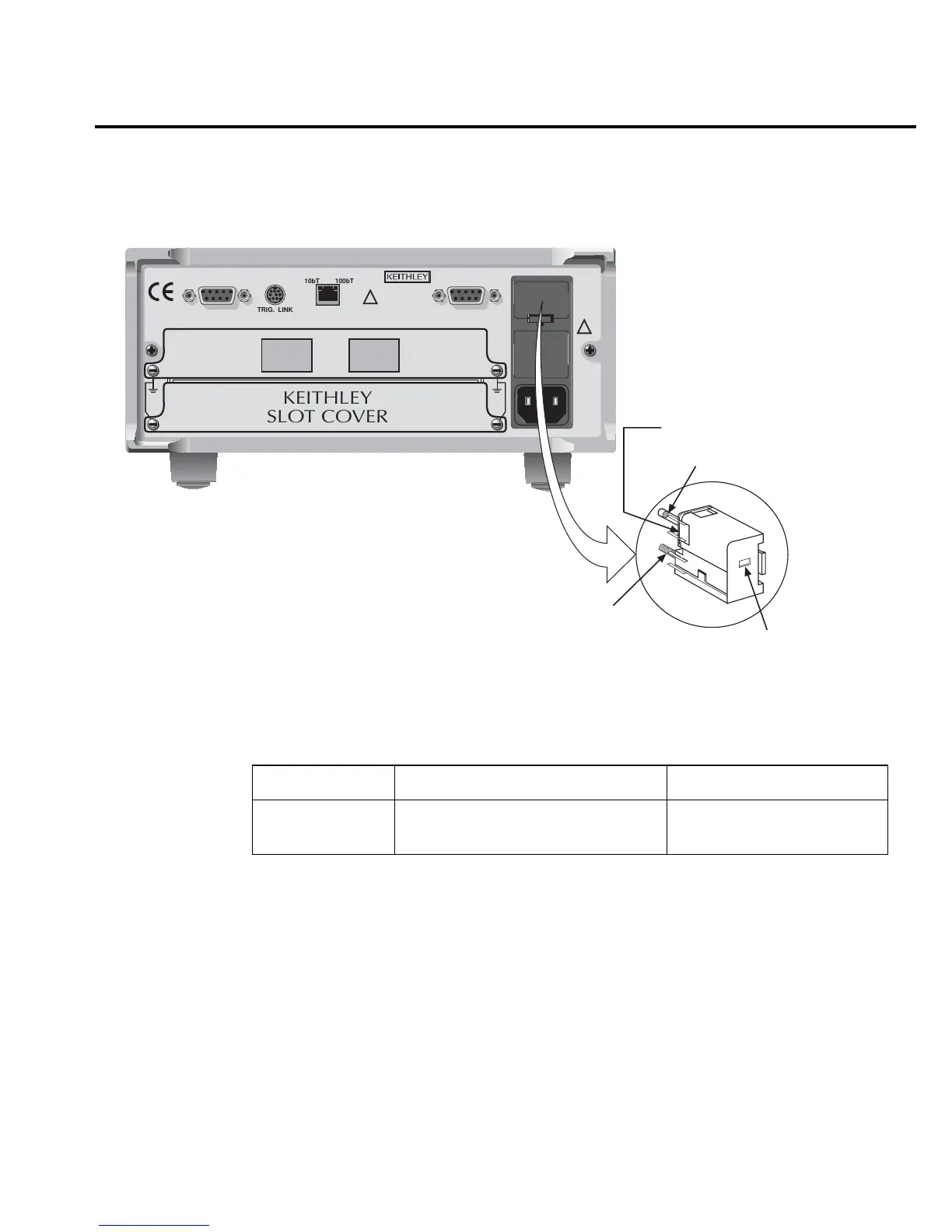

Figure 3-1
Power module
Table 3-1
Power line fuse
Line Voltage Rating Keithley Part No.
100/120V 0.630A, 250V, 5 × 20 mm, slow-blow FU-106-.630
200/240V 0.315A, 250V, 5 × 20 mm, slow-blow FU-106-.315
Model 2701
ETHERNET
10/100 BaseT
KEITHLEY
SLOT COVER
TRIG. LINK
10bT 100bT
WARNING:NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
MADE IN
U.S.A.
!
!
SLT
2
SLT
1
RS232
DIGITAL I/O
(EXT. TRIG.)
CAT I
Fuse
Spring
Window
Line Voltage Selector
Fuse Holder Assembly
120
240
220
100
