3-4 Routine Maintenance Model 2701 Service Manual
Replacing the front terminal AMPS fuse
The front terminal AMPS fuse protects the Model 2701 current input from an over-current
condition. Follow the steps below to replace the AMPS fuse.
WARNING Make sure the instrument is disconnected from the power line and other
equipment before replacing the AMPS fuse.
1. Turn off the power and disconnect the power line and test leads.
2. From the front panel, gently push in the AMPS jack with your thumb and rotate the fuse
carrier one-quarter turn counterclockwise. (See Figure 3-2.) Release pressure on the
jack and its internal spring will push the fuse carrier out of the socket.
3. Remove the fuse and replace it with the same type: 3A, 250V, fast-blow, Keithley part
number FU-99-1.
CAUTION Do not use a fuse with a higher current rating than specified or instrument
damage may occur. If the instrument repeatedly blows fuses, locate and
correct the cause of the trouble before replacing the fuse.
4. Install the new fuse by reversing the above procedure.

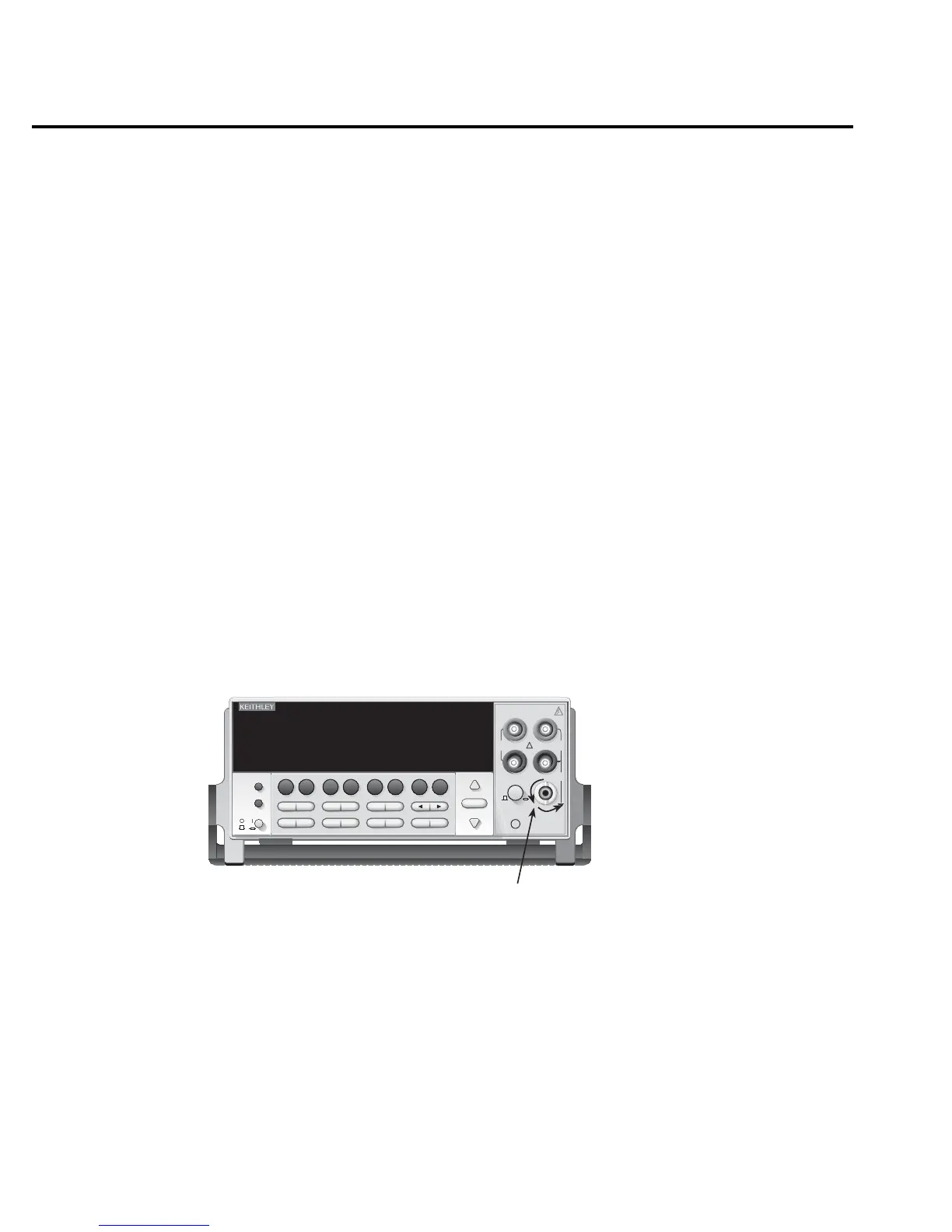

Figure 3-2
Front terminal AMPS fuse
Rotate
Counterclockwise
Model 2701
!
Model 2701 Ethernet Multimeter / Data Acquisition System
RANGE
F
500V
PEAK
FRONT/REAR
3A 250V
AMPS
HI
INPUT
LO
SENSE
Ω 4 WIRE
INPUTS
350V
PEAK
1000V
PEAK
AUTO
SHIFT
LOCAL
POWER
RANGE
R
EXIT ENTER
DIGITS RATE
RELFILTER
TRIG
EX TRIG
STORE RECALL
OPEN
DCV
DCI
MATH
OUTPUT
RATIO
ACV
ACI
Ω2 Ω4
FREQ
TEMP
CH AVG
CONT
PERIOD SENSOR
LIMITS ON/OFFDELAY
HOLD
SAVE SETUP
CONFIG HALT
TYPE
LSYNC
TEST
MONITOR
STEP SCAN
OCOMP
CH-OFF CARD
CLOSE
Integra Series
RS-232ETHERNET
CAT I

Keithley 2701 Specifications

General

Max Voltage	300 V
Max Current	3 A
Frequency Range	3 Hz to 500 kHz
Frequency Accuracy	0.01%
Weight	3.6 kg
Measurement Functions	Frequency, Temperature
Interface	IEEE-488 (GPIB), RS-232
DC Voltage Range	300 V
DC Current Range	3 A
AC Voltage Range	300V
AC Current Range	1 μA to 3 A
Resistance Accuracy	0.01%
Channels	10
Dimensions	213mm x 88mm x 370mm
