6482-901-01 Rev. A / August 2012 Return to Section Topics 8-9
Model 6482 Dual-Channel Picoammeter / Voltage Source Reference Manual Section 8: Triggering

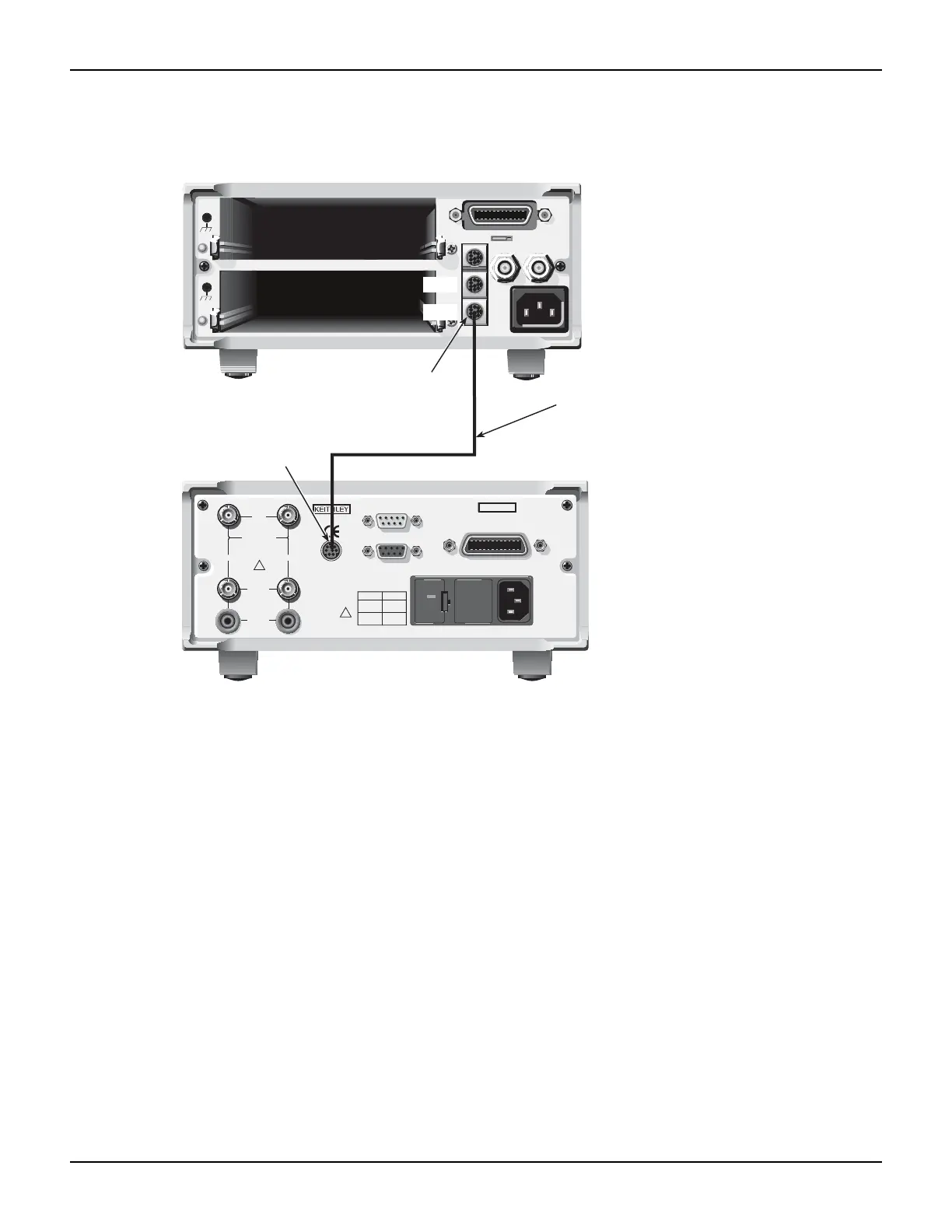

Figure 8-6
Trigger link connections
Step 5. Set trigger input line to #2.
Select #2 and then press the ENTER key three times to return to the CONFIGURE TRIG-LAYER
menu.
Step 6. Set trigger output line to #1.
1. Select TRIGGER-OUT and then press the ENTER key.
2. Select LINE and then press the ENTER key.
3. Select #1 and then press the ENTER key.
Step 7. Set trigger out events to MEAS=ON (all others to OFF).
1. Select EVENTS, and then press the ENTER key.
2. Set MEAS=ON (toggle the value to ON using the EDIT  key).
3. Make sure SOURCE=OFF and DELAY=OFF (set if necessary).
4. Press the ENTER key, and then press the EXIT key to return to the CONFIGURE TRIG-LAYER
menu.
Step 8. Set trigger count to 10.
1. Press the EDIT  key to scroll to the end of the menu selections and select COUNT, and then
press the ENTER key.
2. Set the count to 10, and then press the ENTER key.
WARNING:
NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION:
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
SERIAL NO.
120
LINE RATING
50, 60Hz
60 VA MAX
FUSE LINE
630 mAT
(SB)
315 mAT
(SB)
100 VAC
120 VAC
220 VAC
240 VAC
CAT I
MADE IN
U.S.A.
OUTPUT ENABLE
RS-232
TRIGGER LINK
INPUT
RATINGS MAX.
30 V @ 20mA
CHANNEL 1
CHANNEL 2
RATINGS MAX.
COMMON
MODE
200V
!
!
IEEE-488
(CHANGE IEEE ADDRESS
WITH FRONT PANEL MENU)
ANALOG
OUT
RATINGS MAX.
30 V @ 20mA
VOLTAG E
SOURCE
OUT
30 V @ 20mA
Model 7001 or 7002 Switch System
Model 6482
WARNING:
NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL O NLY.
WARNING:
NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL O NLY.
CAUTION:
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
CAUTION:
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
MADE IN USA
WARNING: NO INTERNAL OPERATOR SERVICABLE PARTS, SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE FUSE WITH SAME TYPE AND RATING.
OUT
IN
Trigger
link cable
(Model 8501)
Trigger
link connector
Trigger
link connector
