6482-901-01 Rev. A / August 2012 Return to Section Topics 18-3
Model 6482 Dual-Channel Picoammeter / Voltage Source Reference Manual Section 18: Routine Maintenance

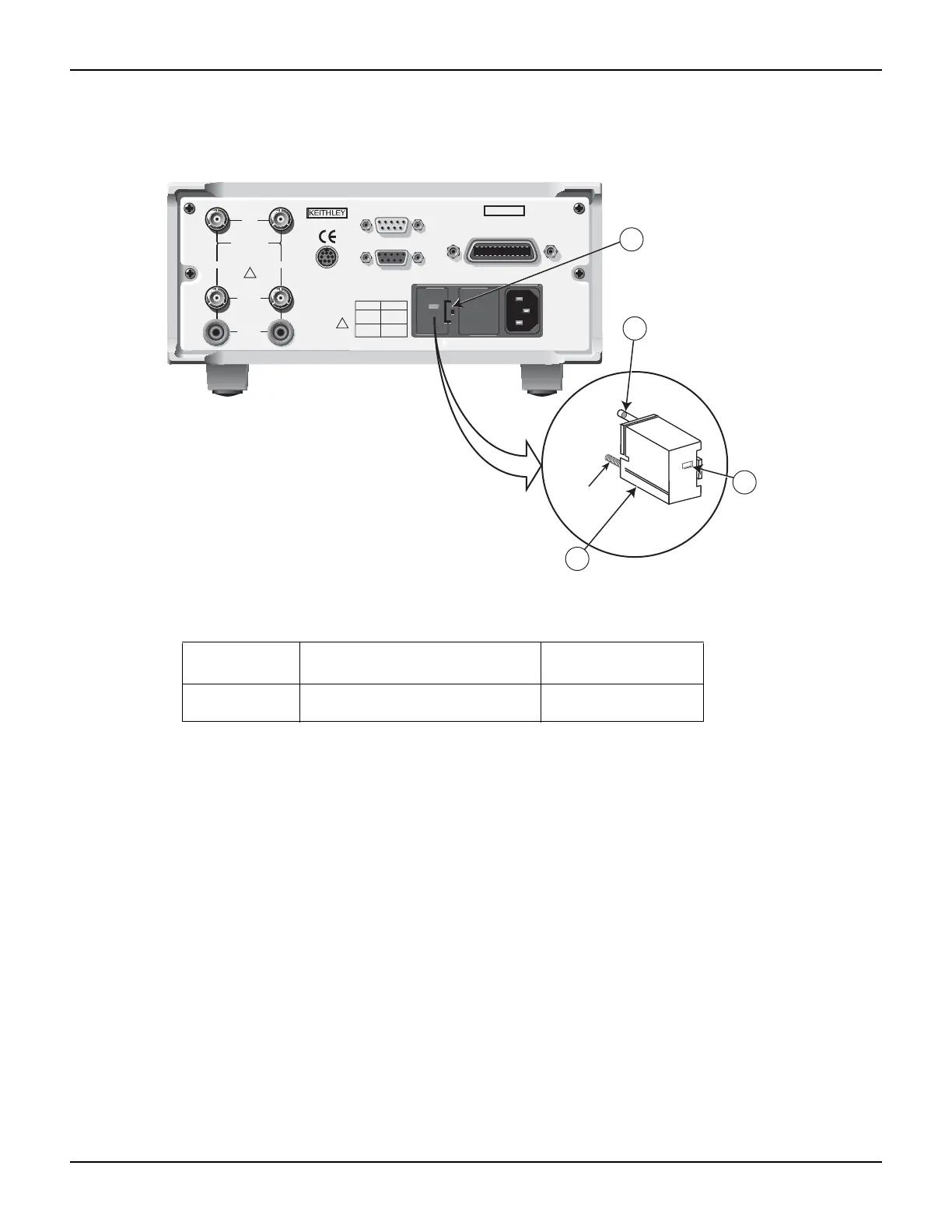

Figure 18-1
Model 6482 rear panel line fuse
Table 18-1
Power line fuses
Line voltage Fuse rating
Keithley Instruments
part number
100 V, 120 V 0.630 A Slo Blo, 250 V, 5 × 20mm FU-106-.630
220 V, 240 V 0.315 A Slo Blo, 250 V, 5 × 20mm FU-106-.315
WARNING:
NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION:
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
SERIAL NO.
120
LINE RATING
50, 60Hz
60 VA MAX
FUSE LINE
630 mAT
(SB)
315 mAT
(SB)
100 VAC
120 VAC
220 VAC
240 VAC
CAT I
MADE IN
U.S.A.
OUTPUT ENABLE
RS-232
TRIGGER LINK
INPUT
RATINGS MAX.
30 V @ 20mA
CHANNEL 1
CHANNEL 2
RATINGS MAX.
COMMON
MODE
200V
!
!
IEEE-488
(CHANGE IEEE ADDRESS
WITH FRONT PANEL MENU)
ANALOG
OUT
RATINGS MAX.
30 V @ 20mA
VOLTAG E
SOURCE
OUT
30 V @ 20mA
Model 6482
120
1
Spring
120
3
2
4
