Getting Started
14
2.2 Operating Elements
2.2.1 TCE80xx-E, TCE80xx-W and compact version

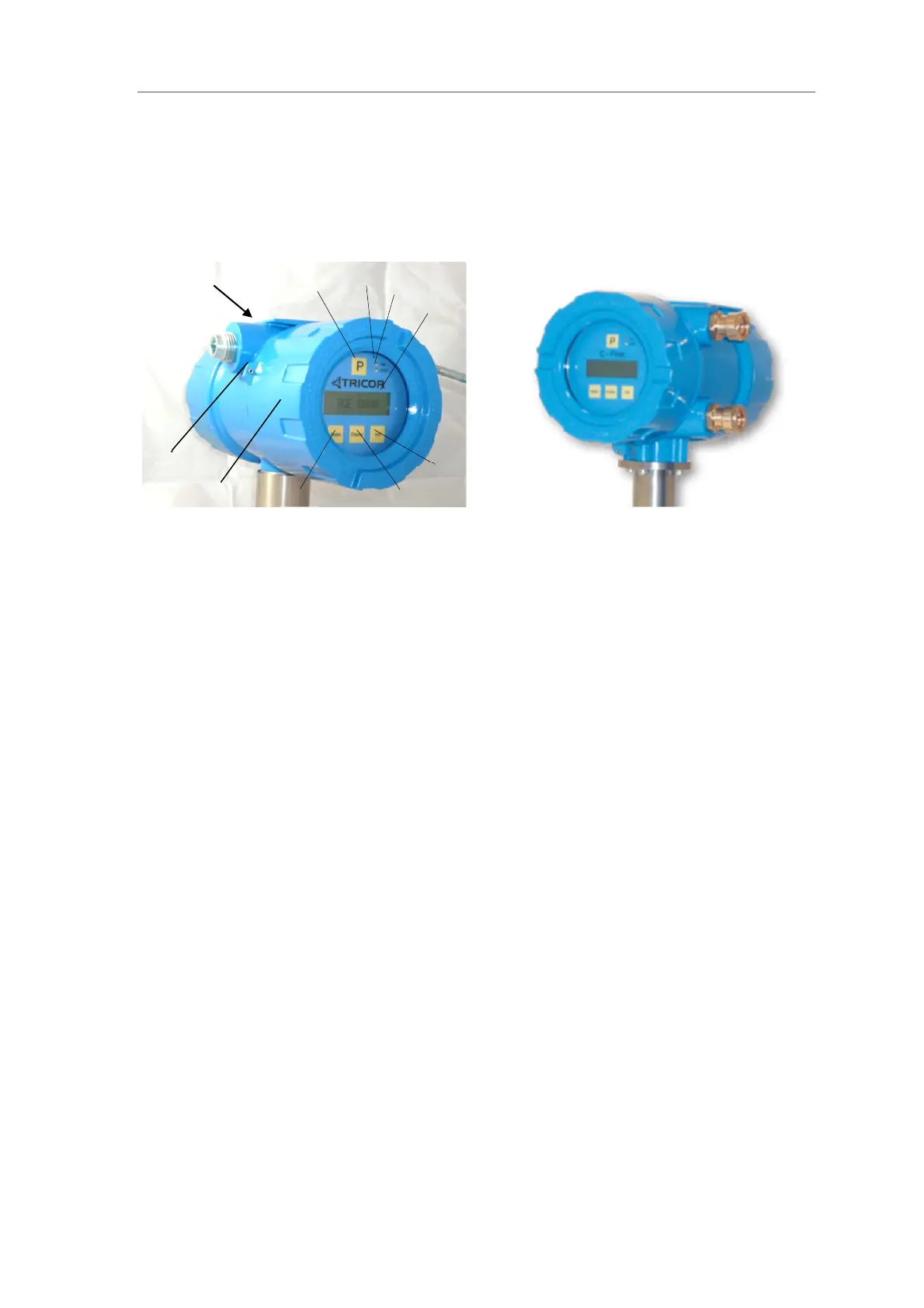

Fig. 4: Operating Elements of TCE80xx-E (right), TCE80xx-W (left) and compact version
1 = Pushbutton “P”, activates / selects the different menus and confirms the settings
2 = LED “OK”, flashes green when there is no error
3 = LED “ERR”, flashes red when an error occurs
4 = Display
5 = Pushbutton “Info”, normal: selects the error menu, SETUP: softkey
6 = Pushbutton “Display”, normal: toggles the display, SETUP: softkey
7 = Pushbutton “Reset”, normal: resets the batch counter, SETUP: softkey
8 = Front cover
9 = Set screw for front cover (varying position)
10 = Screw for protective ground
Wall mount version only (not shown on the pictures):
Cable to the meter TCMnnnn, length as ordered (standard 3m) or junction box
Wall mounting bracket
For the rear view see chapter 2.3
10
1
2
3
4
6
7
5
8
9
