X8 MIG WELDER 2.5 Operation

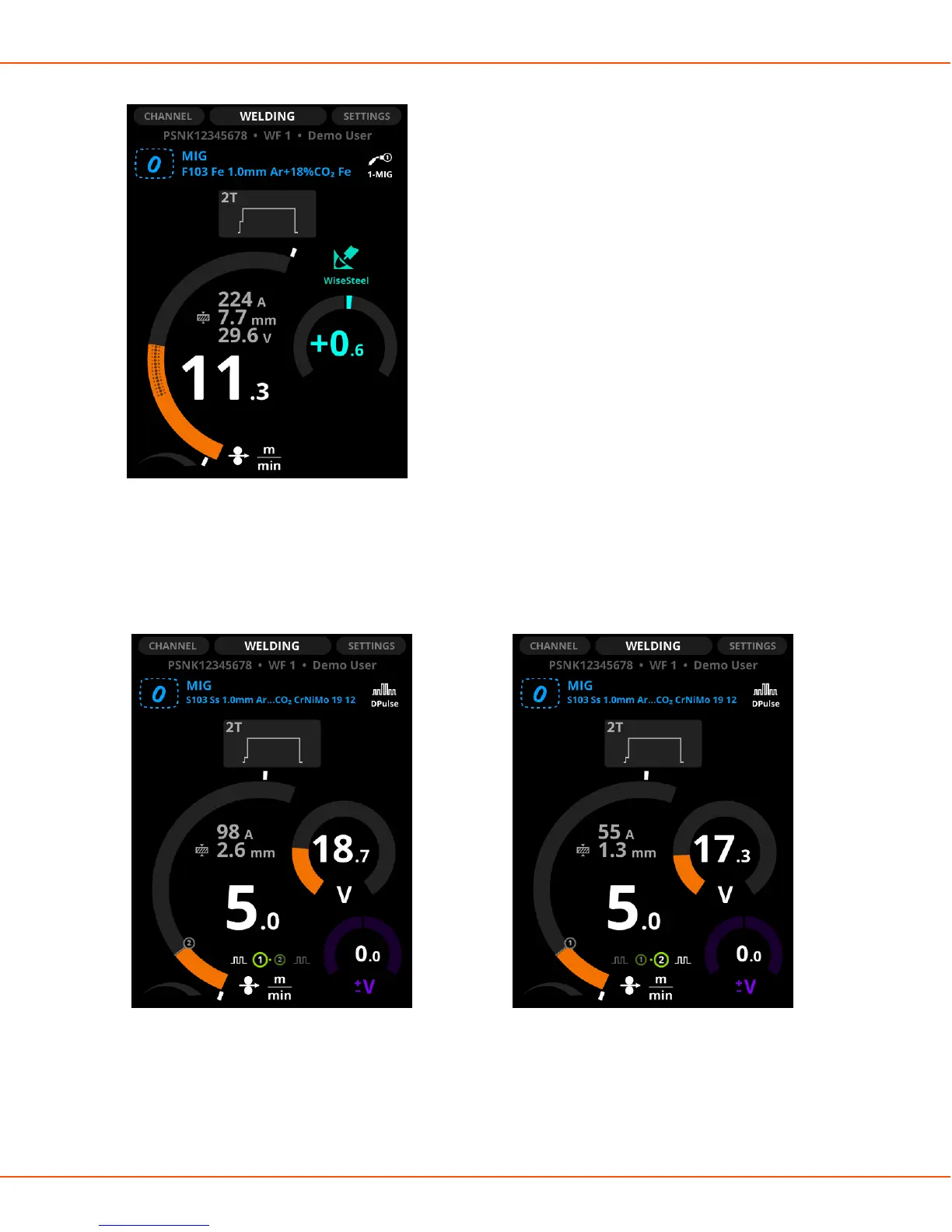

Figure 12: Raster pattern in the wire feed arc
In DPulse and WP Switch, you can adjust two value sets: the first level and the second power level.
Press the left green button to toggle between them. Adjust the values with the control knobs. The
other power level is shown with gray line on the wire feed speed diagram.
Figure 13: Toggling DPulse (1) Figure 14: Toggling DPulse (2)
You can specify the minimum and maximum values of the wire feed speed. They are displayed as
white stoppers beside the wire feed speed diagram.
OPERATING MANUAL | EN 98
©
KEMPPI 2017 | 1817
