Kenwood DDX3021 - USB;iPod;iPhone Connection Diagram

70 DDX6021BT/DDX6051BT/DDX4021BT/DDX4051BT/DDX3021/DDX3051
KCA-iP22F
(Optional Accessory)
iPod
(commercially available)
Audio Visual input 2
(iPod/AV Input 2 switchable)
USB terminal
CA-U1EX
(Optional Accessory)
USB device
(commercially available)
For DDX4021BT/DDX4051BT/DDX3021/DDX3051
KCA-iP202
(Optional Accessory)
iPod (commercially available)
Audio Visual input 2
(iPod/AV Input 2 switchable)
USB terminal
CA-U1EX
(Optional Accessory)
USB device
(commercially available)
For DDX6021BT/DDX6051BT

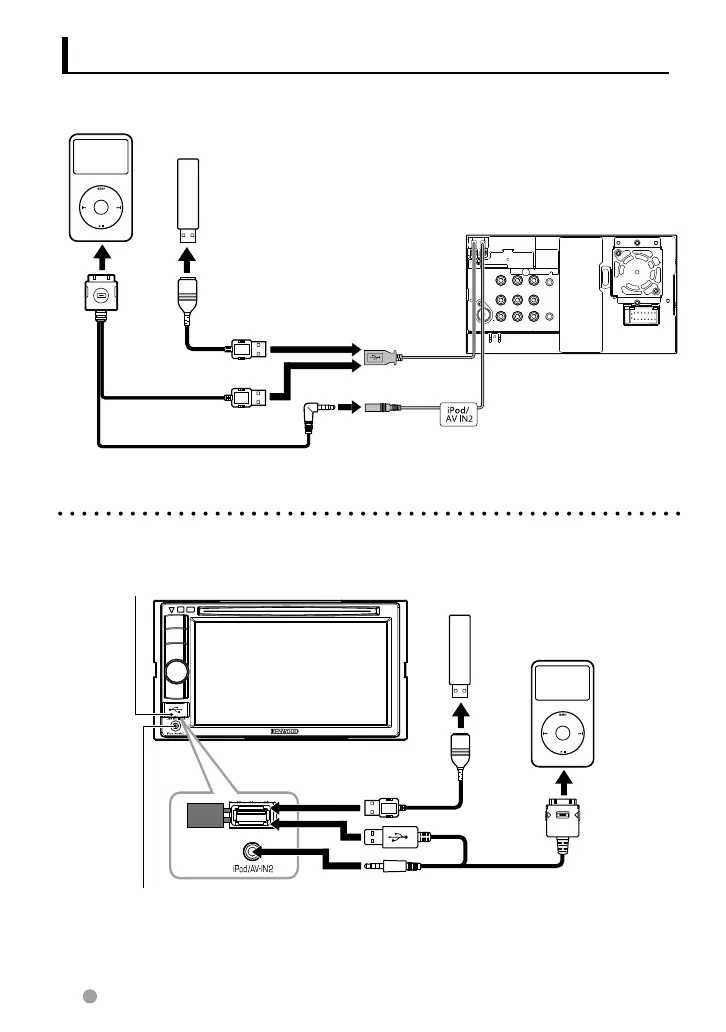

Connecting a USB device/iPod/iPhone
(0.8 m)
(1.8 m)
