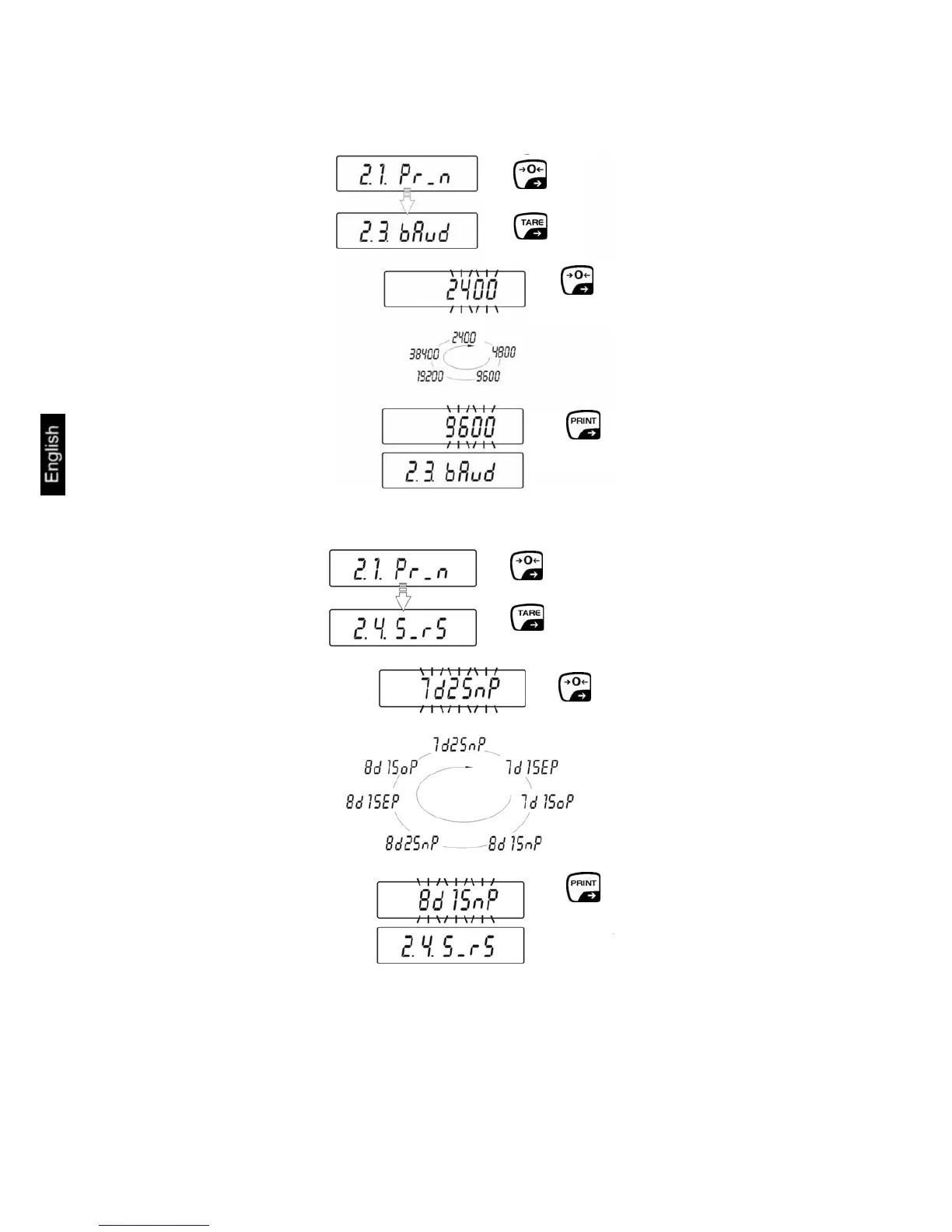

14.2.4 Setting for Baud rate "P2.3" bAud”
⇒
⇒
⇒
⇒
14.2.5 Parameters for RS232 interface "P2.4 S_rS"
⇒
⇒
⇒
⇒
7d2SnP : 7 data bit, 2 stop bit, no parity
7d1SEP : 7 data bit, 1 stop bit, EVEN parity
7d1SoP : 7 data bit, 1 stop bit, ODD parity
8d1SnP : 8 data bit, 1 stop bit, no parity
8d2SnP : 8 data bit, 2 stop bit, no parity
8d1SEP : 8 data bit, 1 stop bit, EVEN parity
8d1SoP : 8 data bit, 1 stop bit, ODD parity
