DAQM907A Multifunction Module

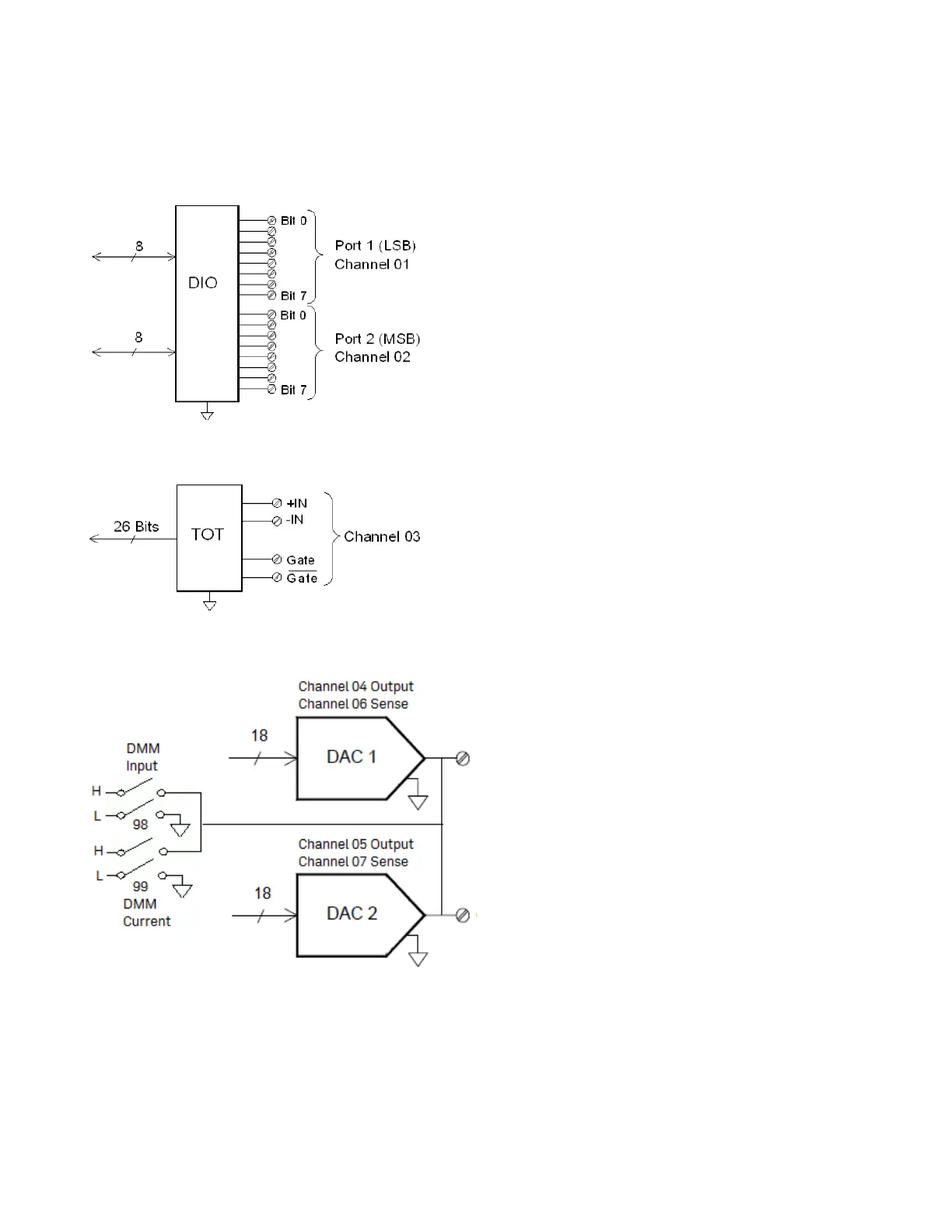

Simplified schematic diagram

Digital Input/Output (channels 01 and 02):

Totalizer channel (channel 03):

DAC output and sense channels (channels 04 through 07):

Keysight DAQ970A/DAQ973A Programming Guide 383

4Plug-in Modules Reference
