FORMat Subsystem
During a scan, the instrument automatically adds a time stamp to all readings and stores them in reading memory.
Each reading is also stored with measurement units, time stamp, channel number, and alarm status information.
You can specify which information you want to return with the readings. Examples below show a reading in relative
and absolute format with all fields enabled.
Reading format applies to all readings being retrieved from the instrument; you cannot set the format on a
per-channel basis. CONFigure and MEASure? commands automatically disable the channel setting.
Relative format - shows the time since the start of the scan.
1
Reading with units (26.195
°C) 3
Channel number
2
Elapsed time (17 ms)
4
Alarm limit threshold crossed (0 = No alarm, 1 = LO, 2 = HI)

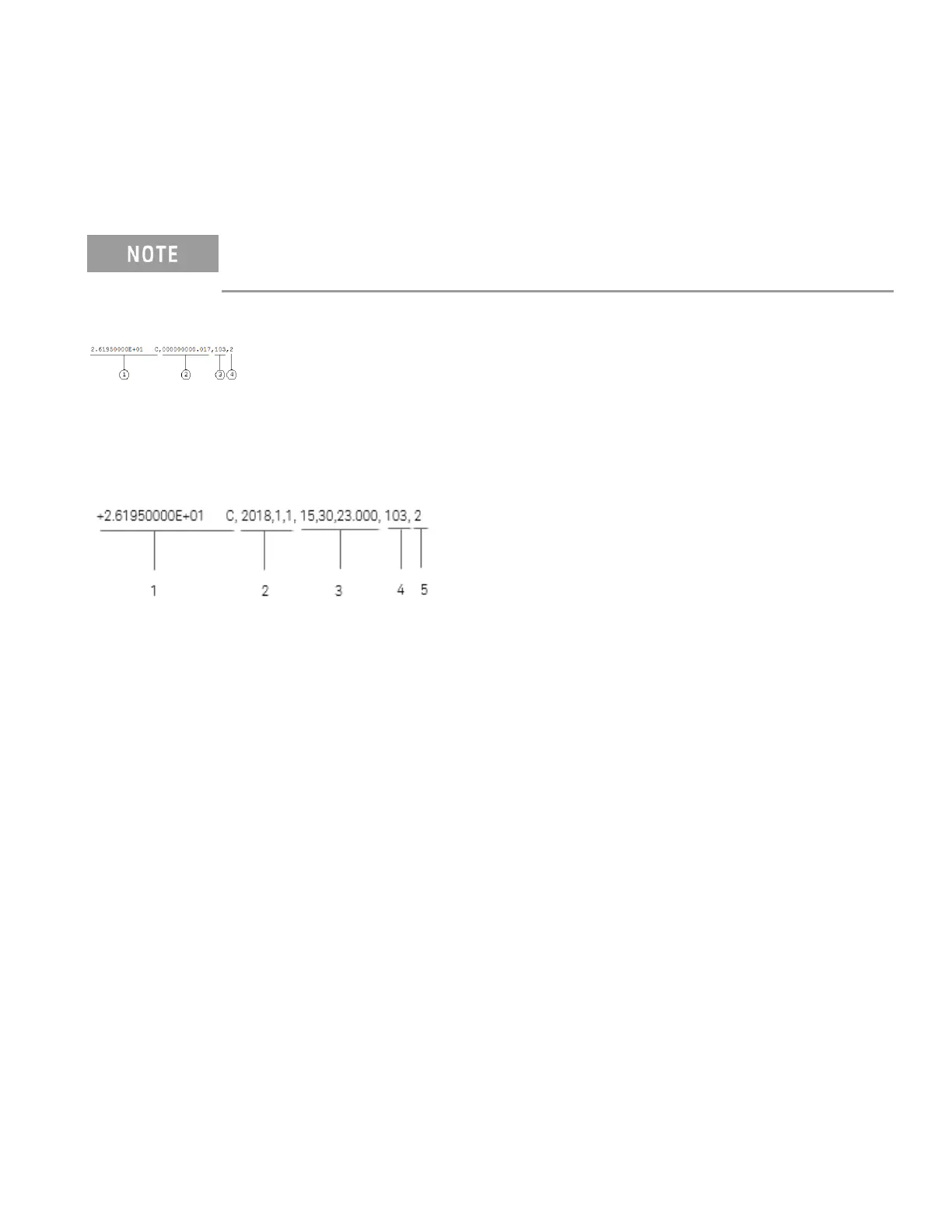

Absolute format - shows the time of the day with the date.
1
Reading with units (26.195
°C) 4
Channel number
2
Date (January 1, 2018)
5
Alarm Limit Threshold Crossed (0 = No alarm, 1 = LO, 2 = HI)
3
Time of day (3:30:23.000 PM)
Command Summary
FORMat:READing:ALARm
FORMat:READing:CHANnel
FORMat:READing:TIME
FORMat:READing:TIME:TYPE
FORMat:READing:UNIT
FORMat:BORDer
FORMat[:DATA]
