1- 32 Keysight E5260/E5270 Programming Guide, Edition 4
Programming Basics
Data Output Format
Data Elements
The measurement data (Data), source output data (Source_data), and search data
(Data_search and Data_sense) are the 4 byte data as shown below.
There are 6 data elements. Details of the elements are described in the following
pages.
A: Measurement or source output data type. One bit.
B: Data type. One bit.
C: Measurement or output range. Five bits.
D: Data. 17 bits.
E: Status. Three bits.
F: Channel number. Five bits.

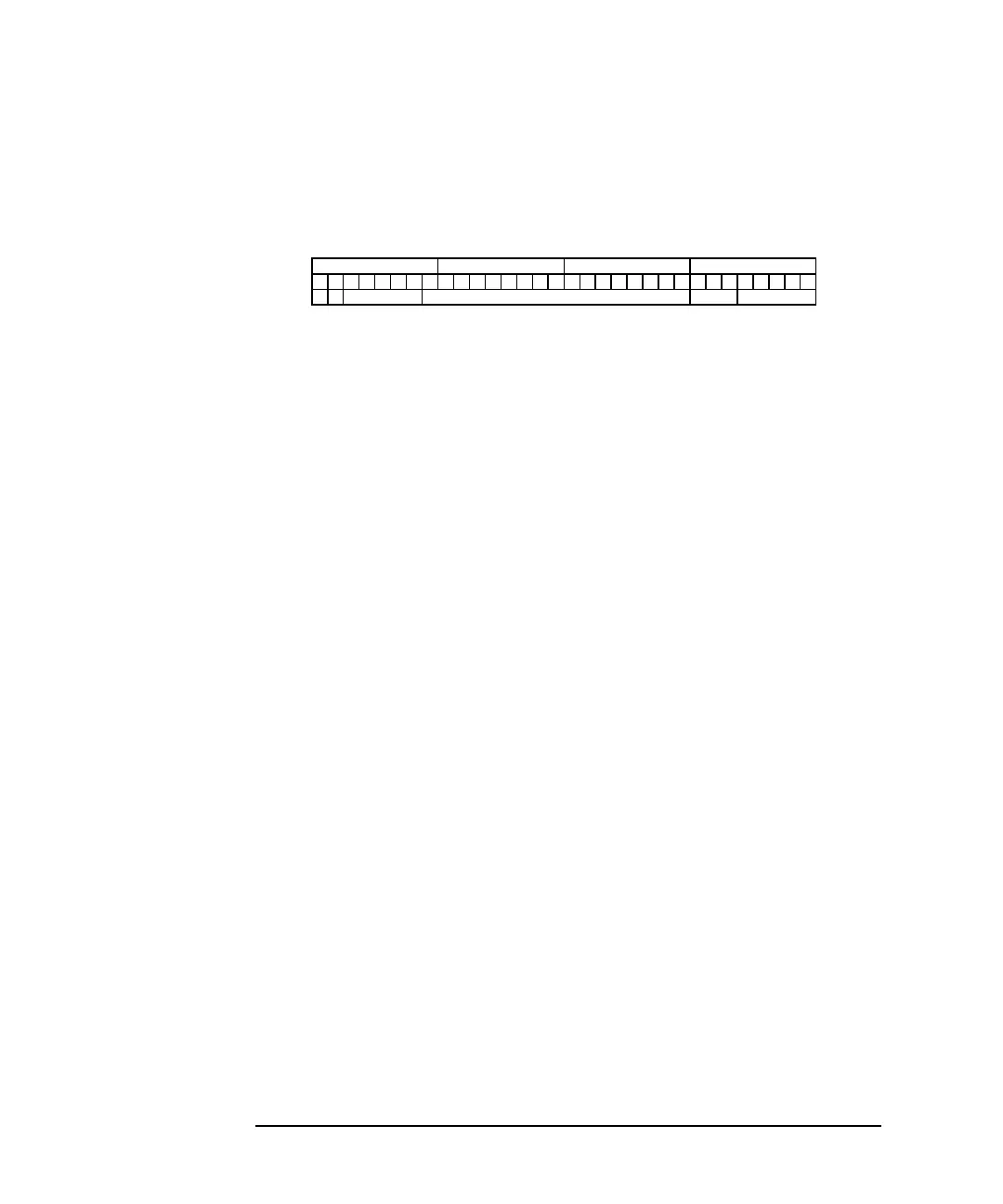

65432107 6543210765432107 65432107
Byte 1Byte 2Byte 3Byte 4
AB C D E F
