Getting Started Guide 47
Control Panel Functions
The Control Panel
Control Panel Icons
The functions listed in the table below are available by selecting the various
E7515B Control Panel icons. For more information about these functions, see
the "E7515B UXM 5G Wireless Test Platform - User's and Programmer's
Guide", which is available in the Document Library tab of this site:
http://www.keysight.com/find/uxm

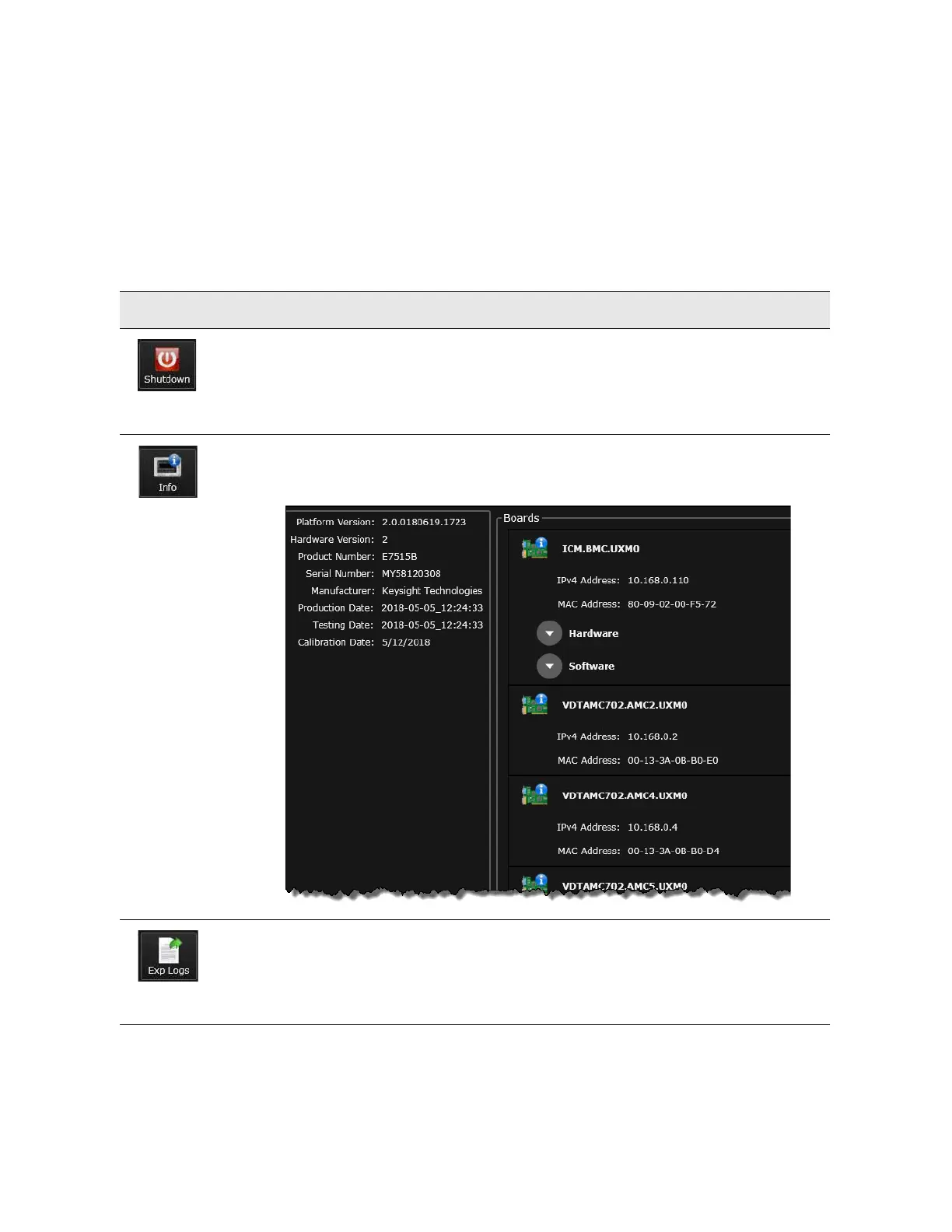

Icon Description
Shuts down the UXM 5G hardware and software. It is recommended that you close all application
software before selecting this E7515B Control Panel option.
As a shutdown is a "destructive" operation, you will be asked to click "Ok" in a confirmation window
("This action will shut down Windows. Do you want to continue?".)
Opens window with two options for obtaining instrument traceability information. Use this
information when you need to discuss your test platform with an authorized Keysight representative.
Below is a partial example of what you might see displayed.
Opens a file window at C:\Users\Administrator\Desktop\ngp\fr1_celloff_2cc_error
which enables you to browse to a different location or to designate this location to save a zipped set
of encrypted log files from the instrument. These files can be used to assist Keysight with remote
diagnosis of instrument problems. The .zip file is password-protected; the password is:
Keysight4u!
