Front and Rear Panel Functions
Rear Panel Features
DCB+ Connectors

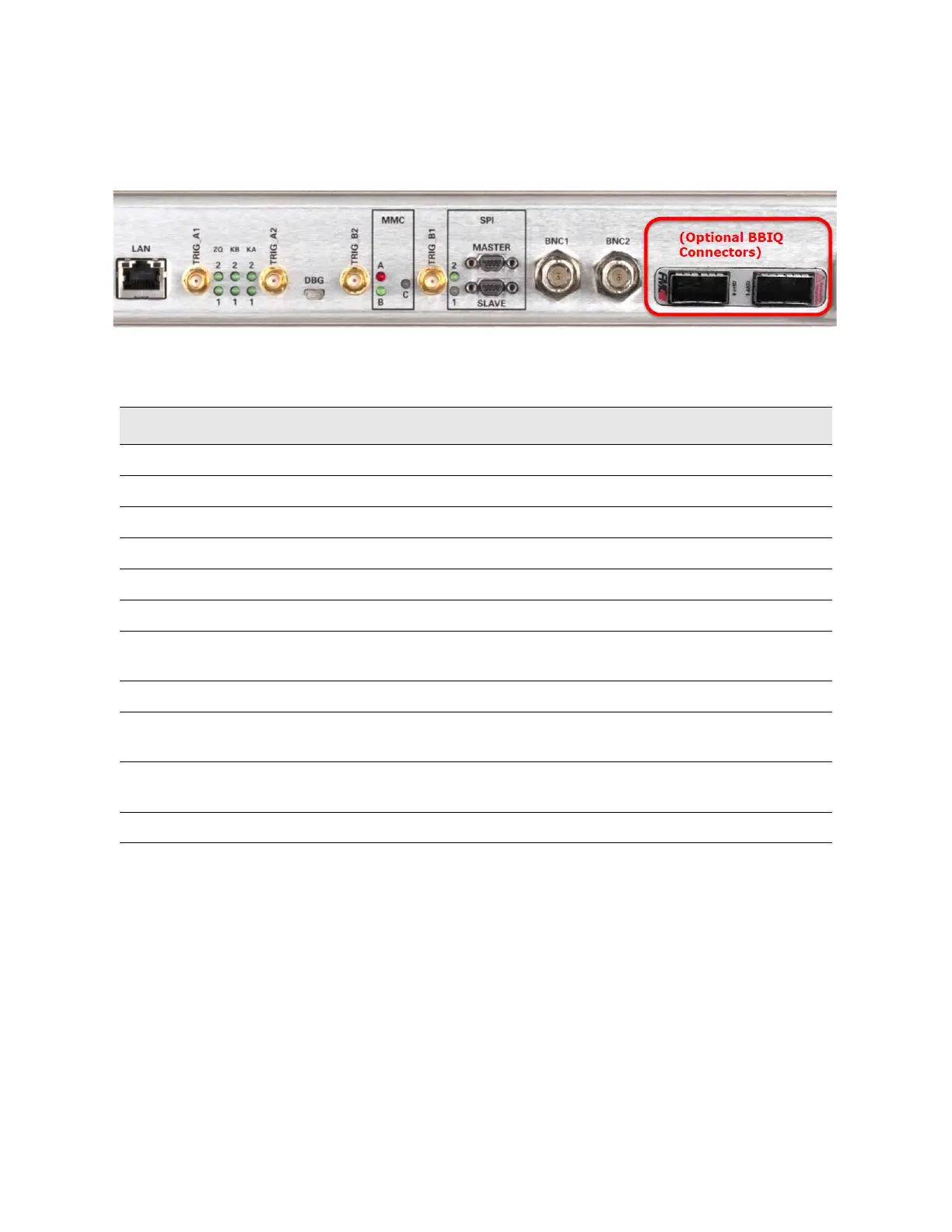

Figure 5-8 UXM 5G Rear Panel -- DCB+ Connectors
These connectors relate to the DCB+ circuit board within the UXM 5G. (There is
a second board, with an identical set of connectors for it.)
Name Description Notes
LAN RJ-45 (Reserved for future use.)
TRIG_B1 SMA Input/output triggers
ZQ, KB, KA Indicators LEDs (Reserved for future use.)
TRIG_B2 SMA Input/output triggers
DBG (Reserved for future use.)
TRIG_A1 SMA Input/output triggers
MMC A, B, C
Indicators
LEDs (Reserved for future use.)
TRIG_A2 SMA Input/output triggers
SPI MASTER
SPI SLAVE
Synchronism ports
BNC1
BNC2
Input/output triggers
FMC BBIQ connectors (Optional)
