76 Getting Started Guide
Front and Rear Panel Functions
Rear Panel Features
VDTAMC Cards

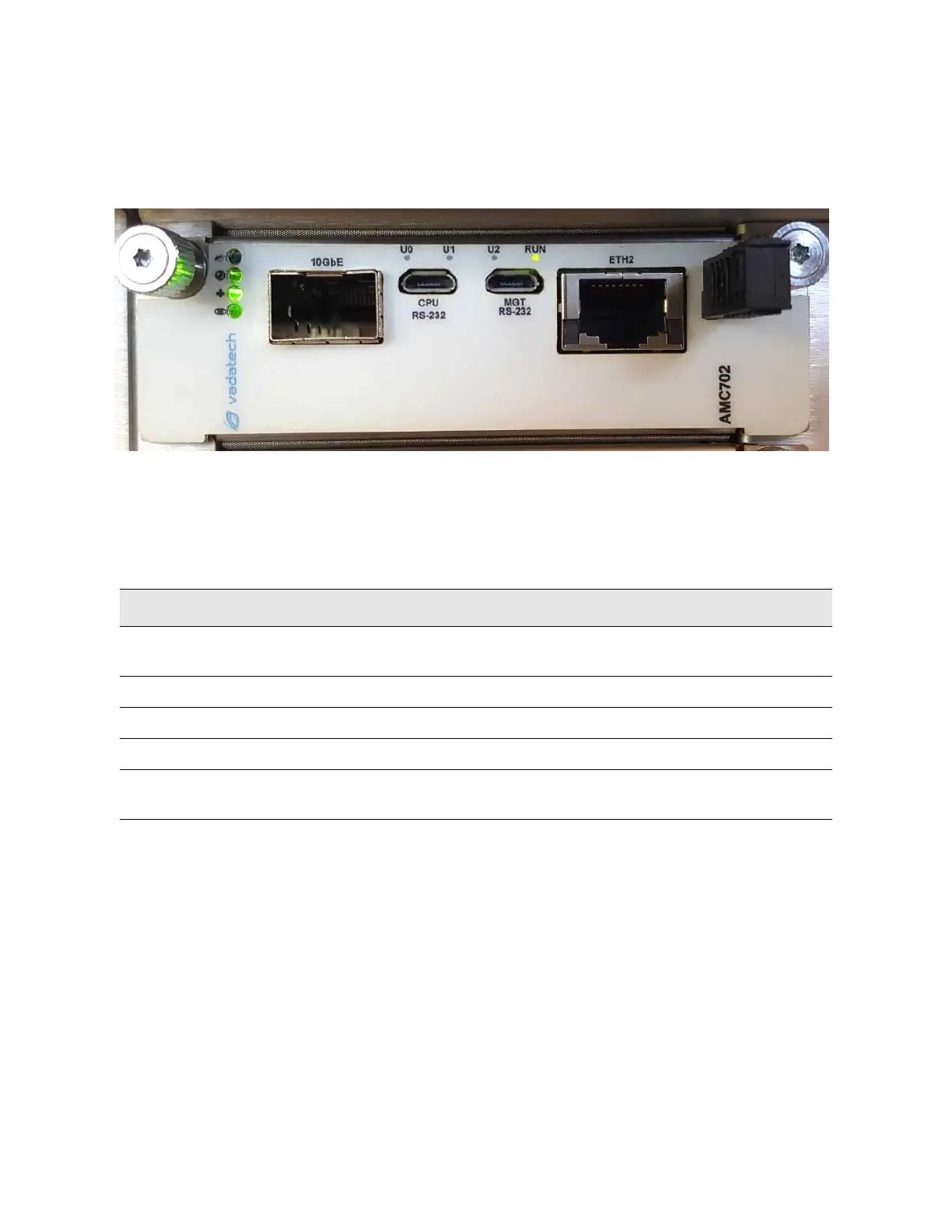

Figure 5-3 UXM 5G Rear Panel -- VDTAMC card connectors
These connectors relate to the VDTAMC card (of which there are three, in slots
2, 4, and 5) within the UXM 5G.
The VDTAMC card (also known as the Vadatech AMC 702) handles processing
of the PHY and PDCP layers in the simulated 5G NR stack.
Name Description Notes
10GBbE SFP+ connector Usage depends on the hardware configuration selected on the
HCCU Setup tab.
UO, U1, U2, RUN LEDs (Reserved for future use.)
CPU RS-232 Micro-USB connector (Reserved for future use.)
MGT RS-232 Micro-USB connector (Reserved for future use.)
ETH2 RJ-45 connector Usage depends on the hardware configuration selected on the
HCCU Setup tab.
