Front and Rear Panel Functions
Rear Panel Features
CCTAMC Card

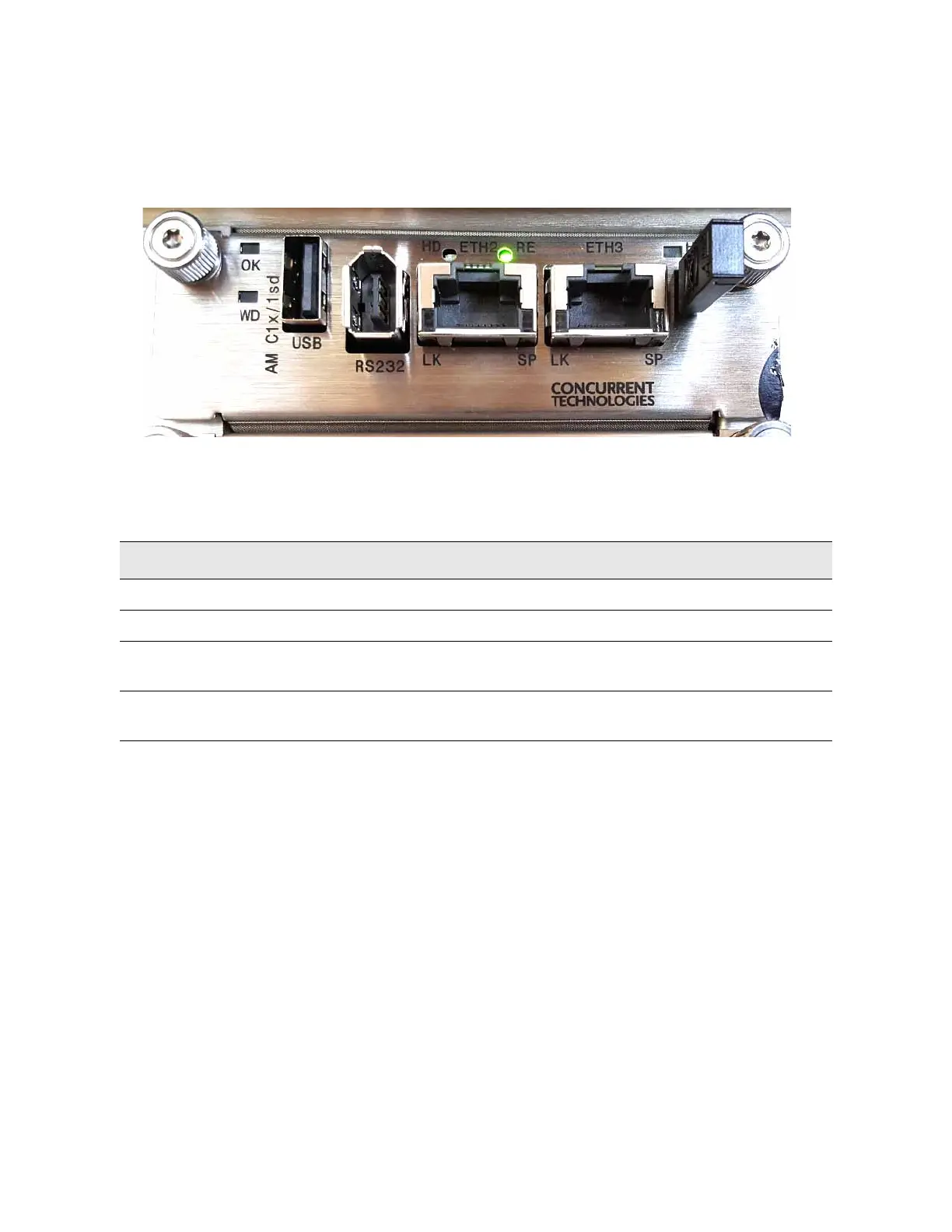

Figure 5-4 UXM 5G Rear Panel -- CCTAMC card connectors
These connectors relate to the CCTAMC card within the UXM 5G.
The CCTAMC card (also known as the Concurrent Technologies AMC14)
handles processing of the RLC and MAC layers in the simulated 5G NR stack.
Name Description Notes
USB USB 2.0 connector (Reserved for future use.)
RS-232 IEEE 1394 connector (Reserved for future use.)
ETH2 RJ-45 connector Usage depends on the hardware configuration selected on the
HCCU Setup tab.
ETH3 RJ-45 connector Usage depends on the hardware configuration selected on the
HCCU Setup tab.
