The Control Panel was formerly used to add the UXM to an array ("Array
Mode") containing a second UXM, or to run it independently of an array
("StandAlone Mode"). The HCCU now performs this type of configuration.
The UXM runs in "StandAlone" mode by default, and has a default IP address
of 201.20.2.176. The second UXM in the array should be given a different
address (usually 201.20.2.177). Use the Control Panel for the second E7515B
to change the address, by clicking on Edit, as illustrated below.

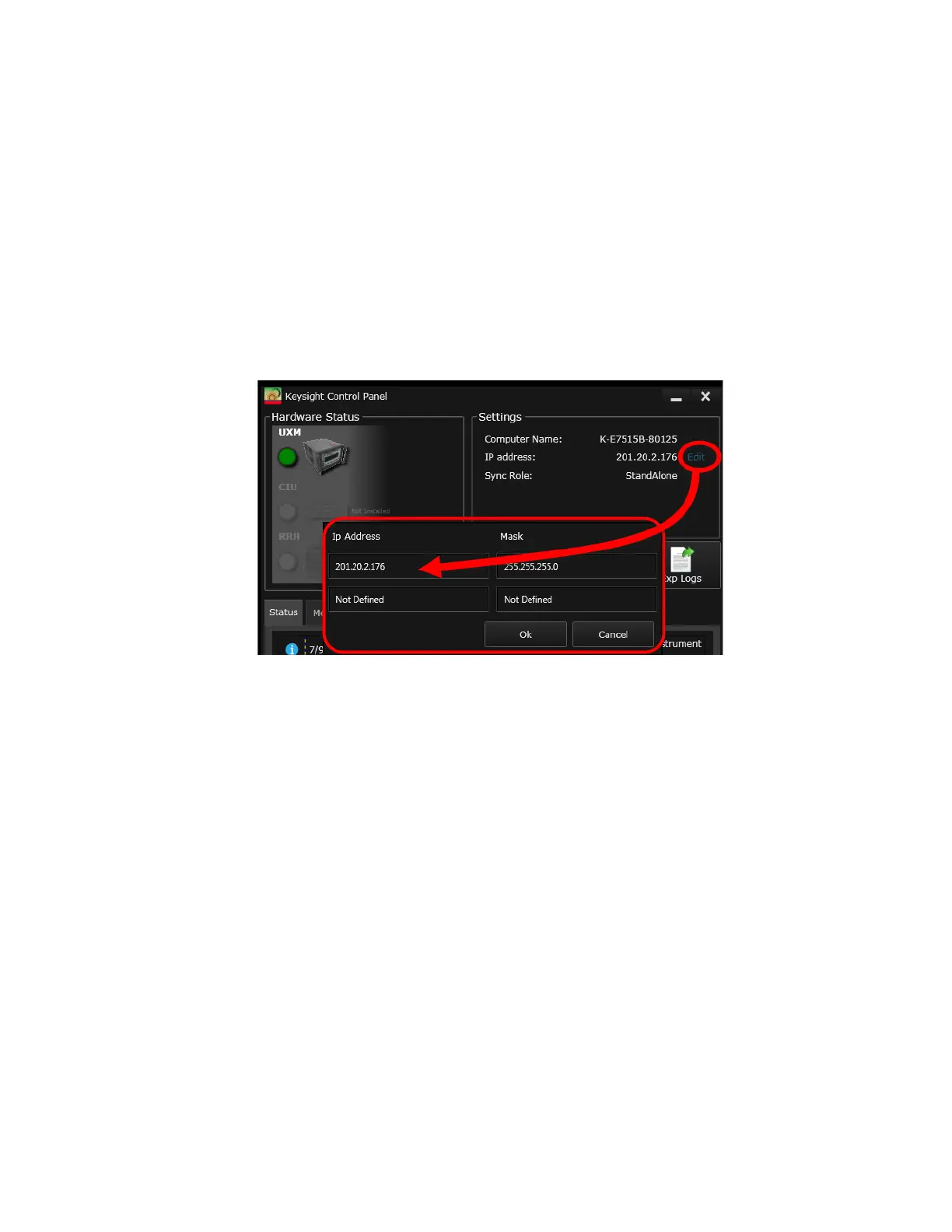

Figure 4-20 Editing the IP address of the second E7515B
To use the UXM in an array, begin by selecting a new setup in the Change
Setup wizard on the System tab (see “Change Setup” on page 56.
