10 PCIe Link Configuration
The PCIe Link configuration is fixed in both the M9010A and M9019A PXIe
Chassis at 2 Link x8 x16 Gen 3 speed. You cannot change or modify the PCIe Link
Configuration on these two chassis.
On the M9018B, the PCIe Link is configurable as either 2-Link (1x8), 2-Link (2x8),
or 4-Link (4x4).
View the PCIe link configuration from the Soft Front Panel tab as follows:

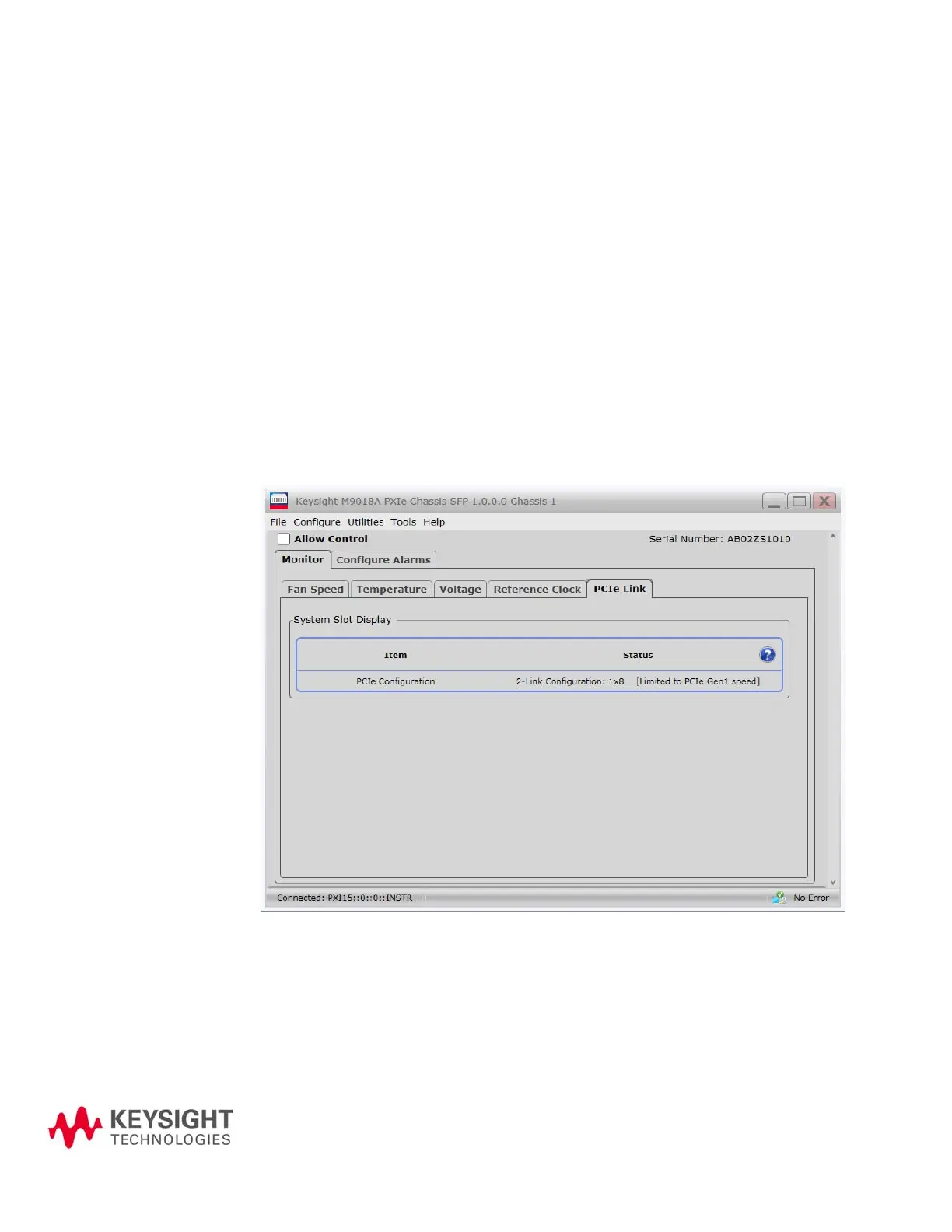

Figure 58 M9018A and M9018B Soft Front Panel PCIeLink Tab
