12 Keysight PXIe Chassis Family User Guide
Introduction to the PXIe Chassis Key Chassis Features
Key Chassis Features
The Keysight family of PXIe chassis is designed for easy integration into large
systems containing multiple PXIe chassis and other, non-PXI instrumentation.
The Keysight PXIe chassis have these key features:
– Up to 16 PXIe hybrid slots (the M9010A has 8 hybrid slots), 1 PXIe timing
slot, and 1 PXIe system slot.
– 4U chassis with innovative cooling design.
– Ultra high performance PCIe interface
-- The M9010A has Gen 3 PCIe with a two-link (x8, x16) system slot and x8
links to the hybrid/timing slots.
-- The M918B provides configurable 2-Link (2x8) and 4-Link (4x4) plus
M9021A configuration (1x8).
-- The M9019A provides Gen 3 PCIe with a two-link (x8, x16) system slot
and x8 links to the hybrid/timing slots.
– High data bandwidth (maximum 24 GB/s system and 8 GB/s slot-to-slot).
– Multi-chassis power-sequencing using rear panel RJ-45 connectors.
– Front panel external trigger input/output ports.
– One common driver supports IVI-C and IVI.NET for all three chassis (and
the M9018A PXIe chassis).
Figure 1 shows a front view of the M9019A chassis. The M9018B chassis is
similar; the M9010A chassis is similar but has ten slots.

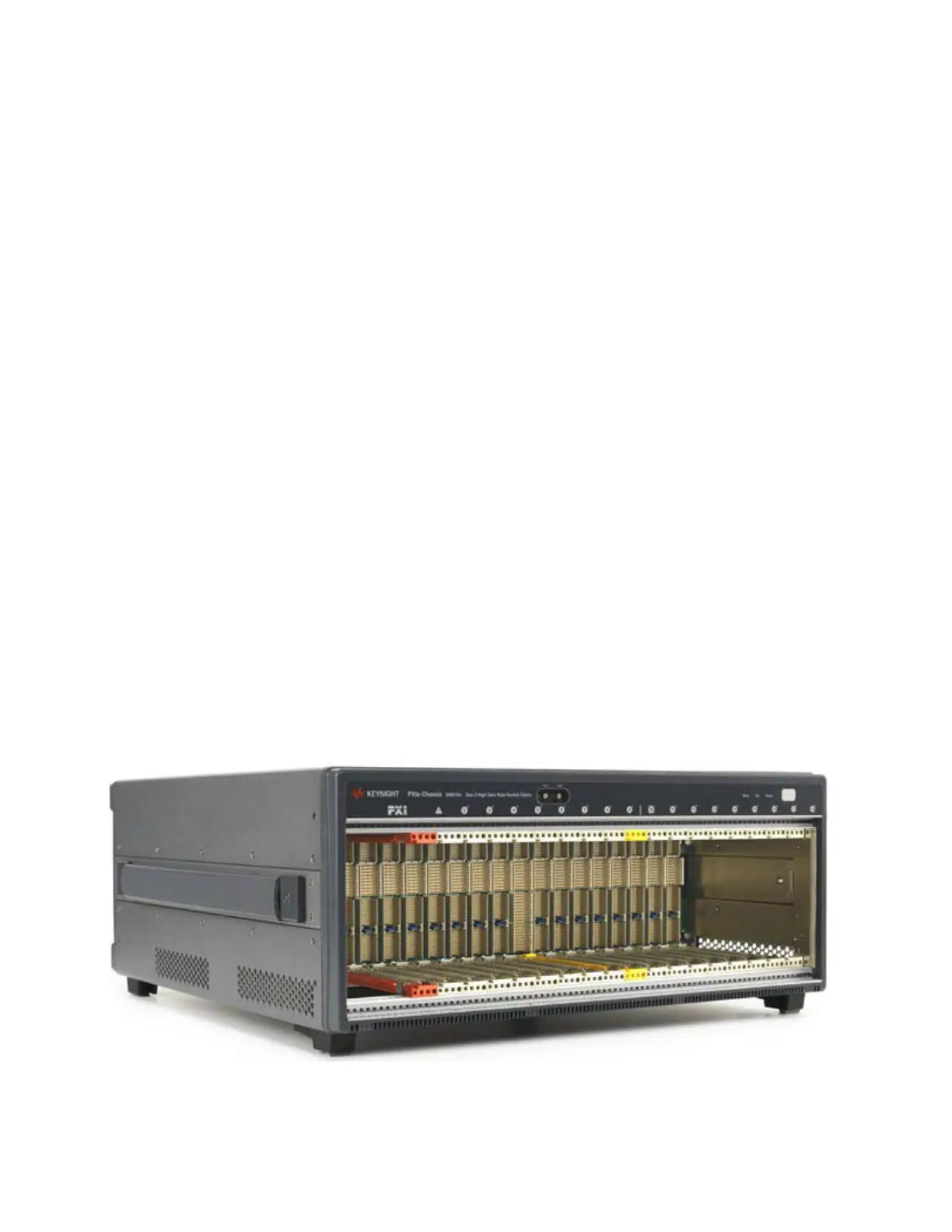

Figure 1 Keysight M9019A PXIe Chassis Front and Side View (The other chassis are similar)
