Configuring the PXI Trigger Bus Chassis Trigger Lines
Close Connection Expert and reboot your PC. Then you restart Connection
Expert, and check the Trigger Routing, you see the following:
The persistent reservations are still present (have persisted) after the reboot. The
volatile reservations are gone, and those trigger lines are available for new
reservations.
Configuring PXI Trigger Bus Connections
Volatile routes and reservations are made programmatically using the PXIe
Family Chassis Driver KtMTrig IVI driver. For information on using the KtMTrig IVI
driver, see the KtMTrig Help file:
Windows Start button > All Programs > Keysight > KtMTrig Help
Persistent routes and reservations can only be made through the Keysight
Connection Expert Chassis Triggers view. For detailed information on using
Connection Expert and the Chassis Triggers view, see the Keysight IO Libraries
help file.

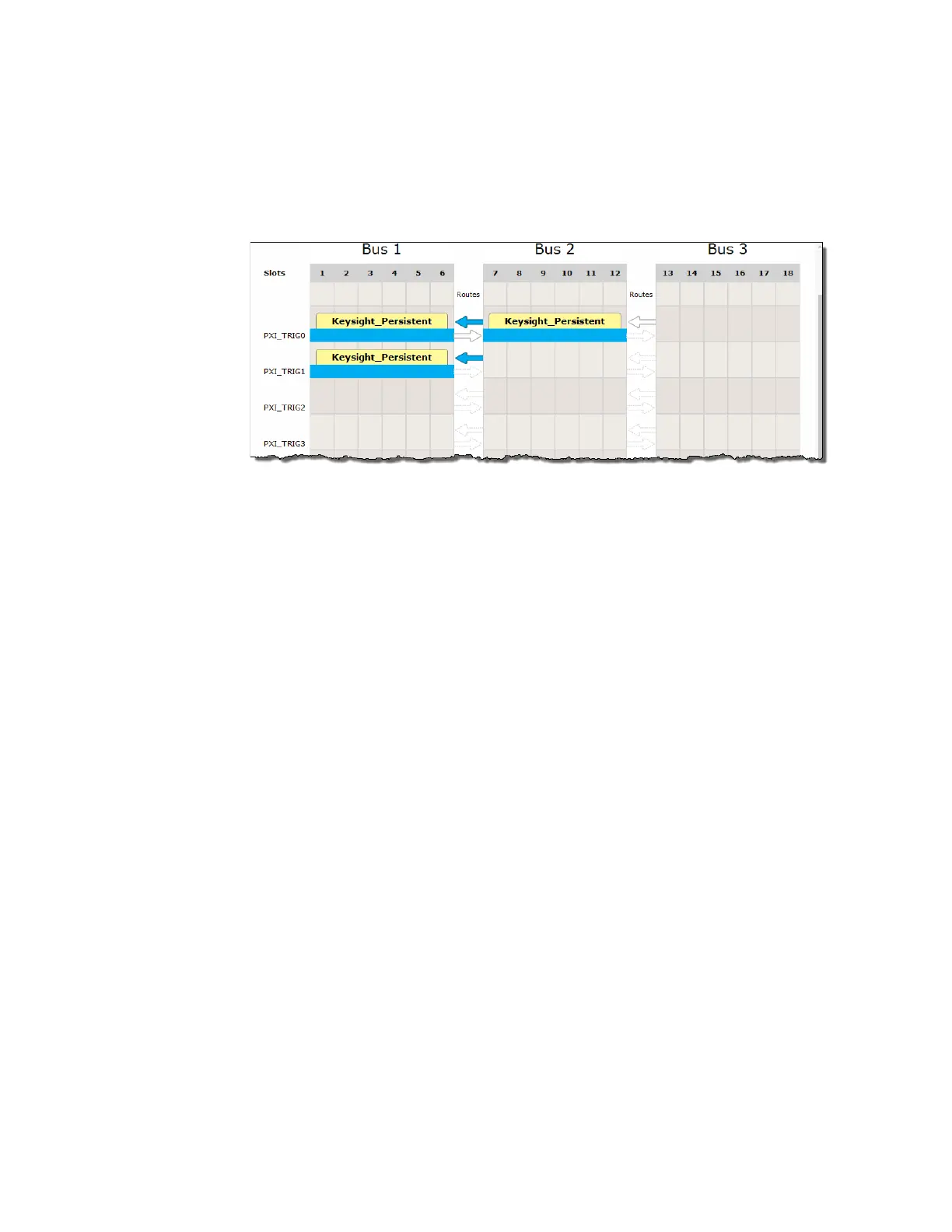

Figure 40 Trigger Routing after Reboot
