Keysight PXIe Chassis Family User Guide 13
Key Chassis Features Introduction to the PXIe Chassis

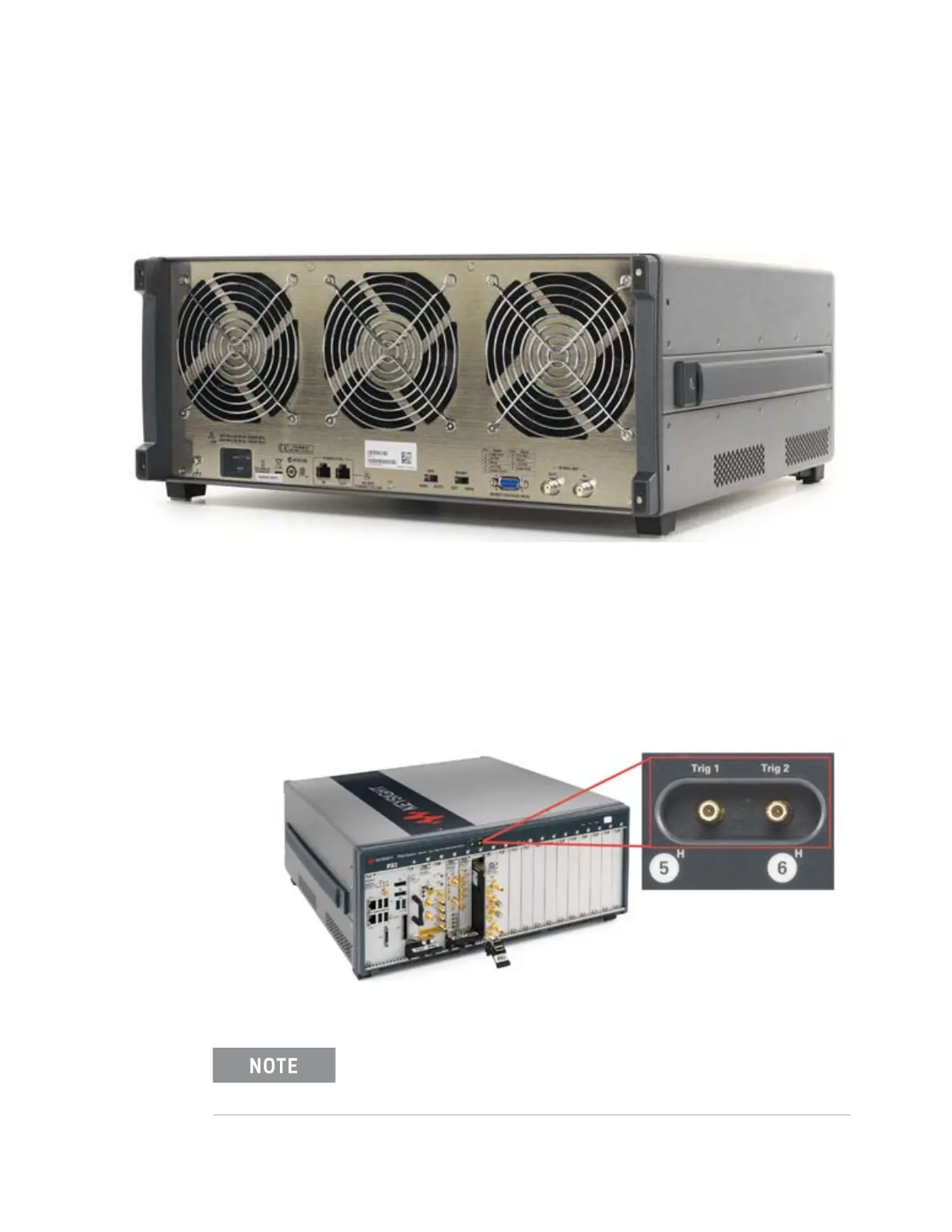

The following figure shows the M9019A chassis rear panel. The M9018B chassis
rear panel is similar; the M9010A chassis has two fans.
Front Panel Trigger Ports
Two front panel SMB trigger connectors connect to the PXI [0:7] backplane
trigger bus in Trigger Bus Segment 1 and 2 in the M9010A chassis and Trigger
Bus Segments 1, 2 and 3 in the M9018B and M9019A chassis. For information on
using these two trigger ports, see “Front Panel Trigger Ports” on page 89.
Figure 2 Keysight M9019A PXIe Chassis Rear and Side View (The other chassis are similar)
Figure 3 Chassis Front Panel Trigger Ports (M9019A shown)
Make certain that your test system application is not running when
you reconfigure these two trigger ports. Reconfiguring the ports
may cause an unexpected pulse on the trigger port lines.
