Chassis Maintenance Performing a Chassis Self Test
Performing a Chassis Self Test
This section describes how to perform a chassis self test and lists the codes and
messages generated by self test. For detailed information on the self test
messages and how to use the self test results to troubleshoot issues with the
chassis, see the Troubleshooting Based on the Self Test Results chapter in the
Keysight PXIe Chassis Service Guide.
Performing Self Test using the Soft Front Panel
Self test can be initiated from the SFP or programmatically using the IVI or
LabVIEW drivers.The following image shows how to initiate self test from the
PXIe chassis Soft Front Panel (SFP). Note that the Allow Control check box must
be checked in order to perform a self test.

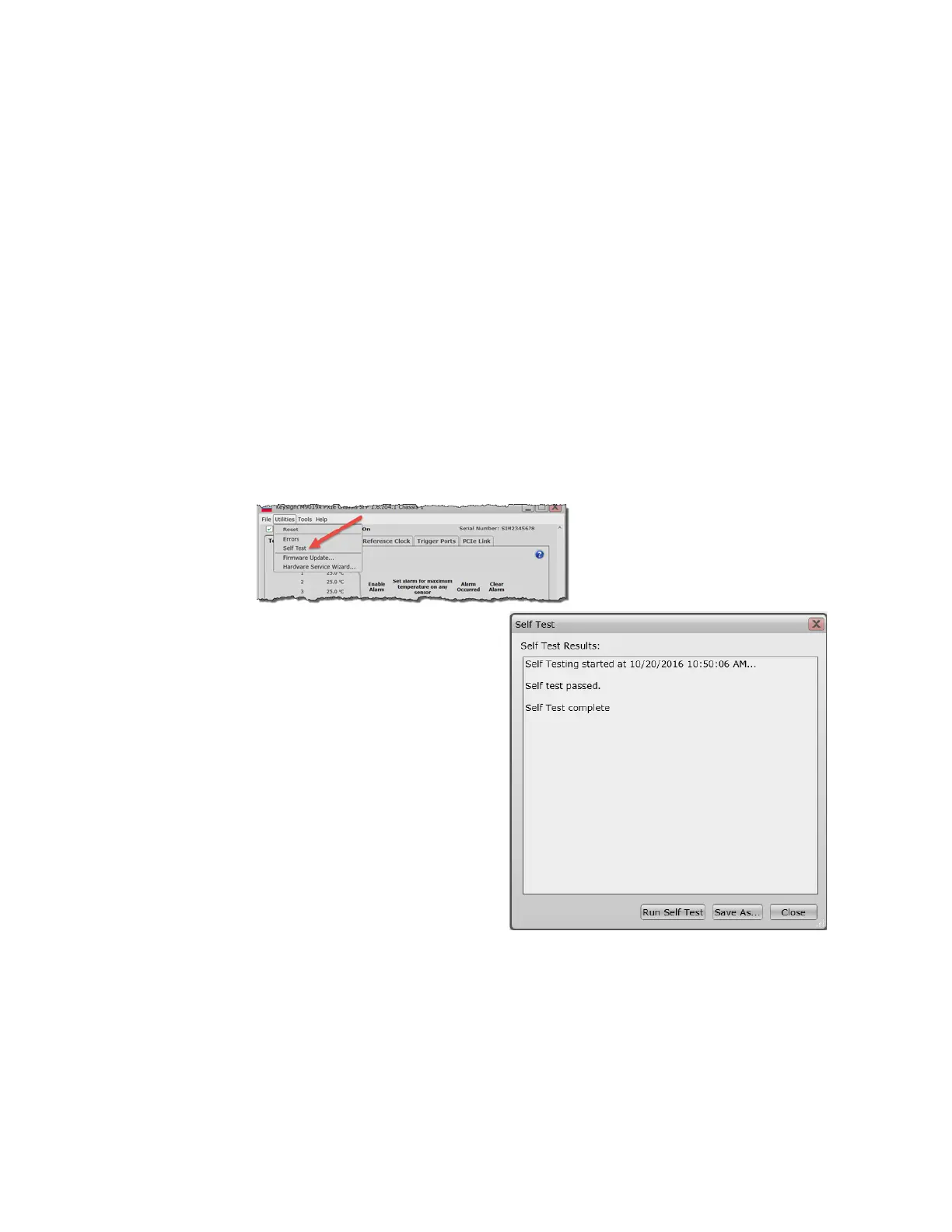

Figure 76 Running the Chassis Self Test from the Soft Front Panel
