Configuring the PXI Trigger Bus Chassis Trigger Lines
An example of an invalid Trigger Bus Route would be if the same trigger line in
both Segment 1 and Segment 3 tried to drive that Trigger Line line in Segment 2.

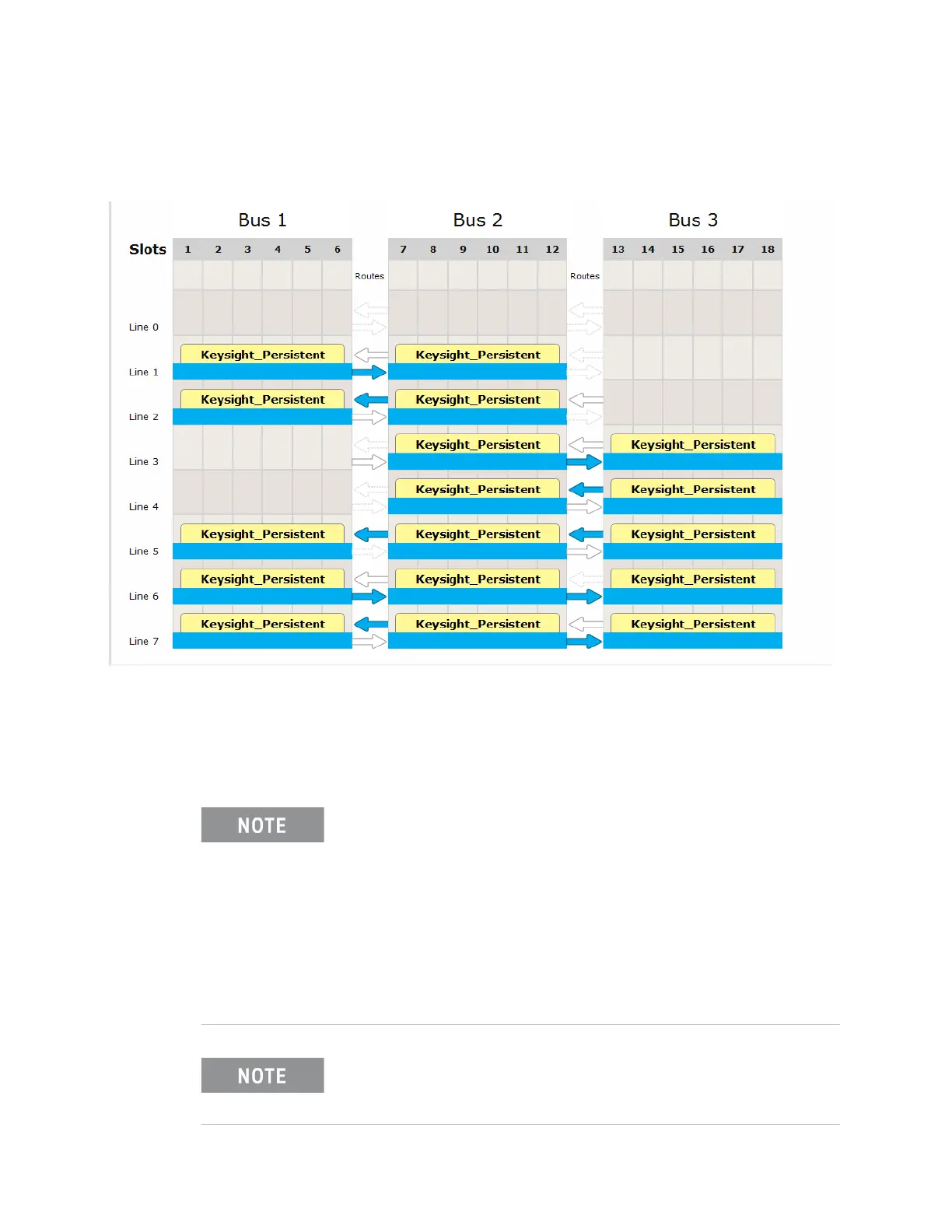

Figure 38 Example Showing the Eight Different Triggering Bus Routes
In the PXIe Family Chassis driver Soft Front Panel, trigger
reservations and trigger routes are not configurable. To configure
the Trigger Bus, use either the KtMTrig Trigger IVI driver or the IO
Libraries Suite Connection Expert. Connection Expert makes
Persistent Trigger Reservations with the Client ID of
Keysight_Persistent for a Graphical User Interface control
.
In past driver releases, chassis trigger routes were configurable
with the old, AgM9018 chassis driver for the M9018A. It
automatically made volatile Trigger Reservations with the Client
ID of AgM9018IviDriver_DefaultClient.
We strongly recommend that you make Trigger Bus Reservations
before you actually use the Trigger Lines in your application
programs.
