1-6 General Description PLZ-U

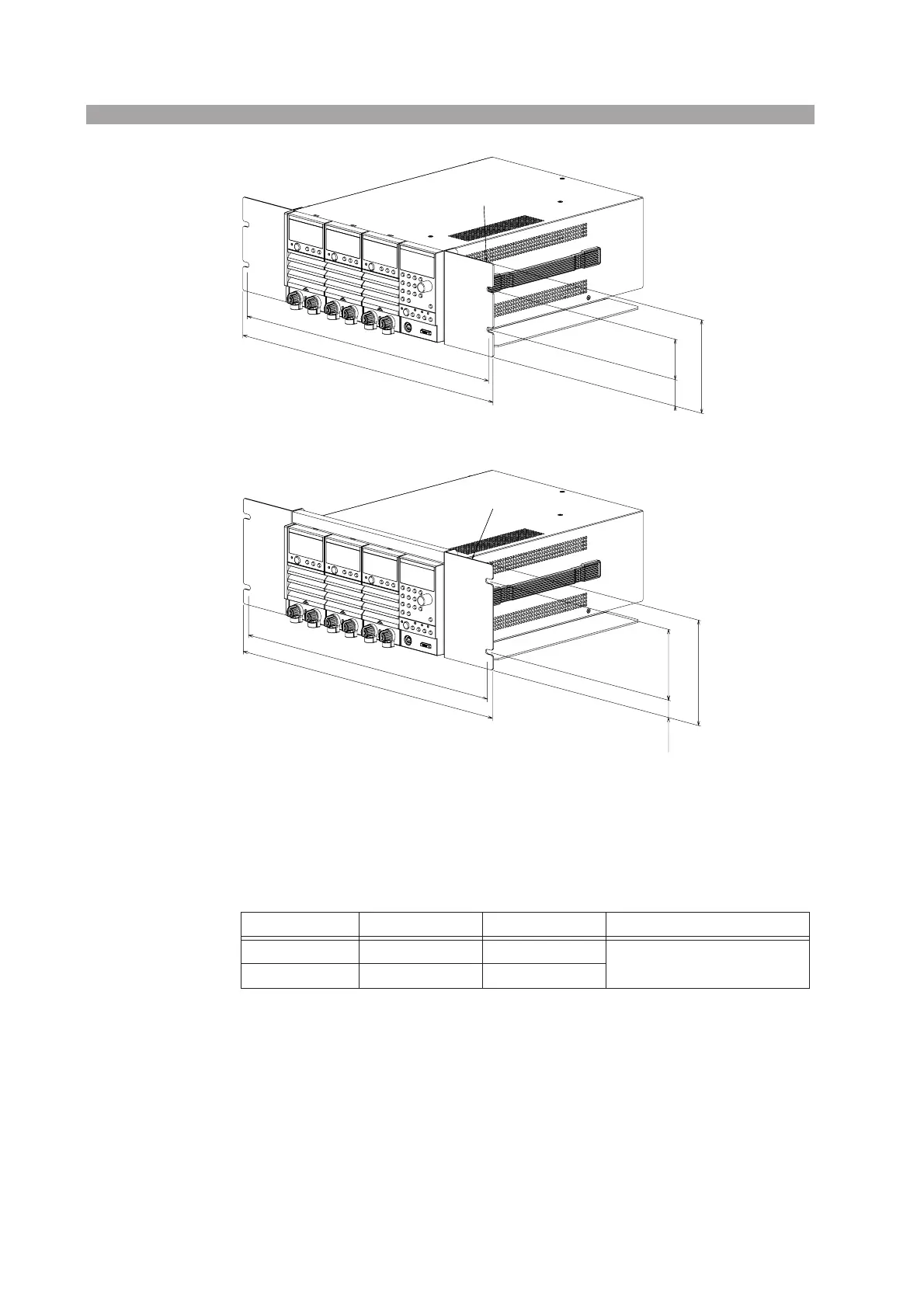

Fig. 1-2 Rack mount bracket (PLZ-30F)
Control flat cables
Control cables that connect frames for inter-frame control. The following two types
of cables are available.
Model
Cord Length
Application
PC01-PLZ-4W 84540 300 mm
Connection between frames
PC02-PLZ-4W 84550 550 mm
149
24.5 100
460
480
KRB150-PLZ-30F
132 (5.20)
37.5
(4.48)
57 (2.24)
482 (18.98)
465 (18.31)
KRB3-PLZ-30F
Unit: mm (inch)
Unit: mm
