4-6 Basic Operation PLZ-U
4.3 Basic Operation
The following three operation modes are available on the PLZ-U. Furthermore, con-
stant voltage mode (+CV) can be added to CC and CR modes.
• Constant current mode (CC mode and CC+CV mode)
• Constant resistance mode (CR mode and CR+CV mode)
• Constant voltage mode (CV Mode)
For a description of each mode, see appendix A.2, “Basic Operation Modes.”
You set the current (A), resistance (Ω), and voltage (V) in CC, CR, and CV modes,
respectively.

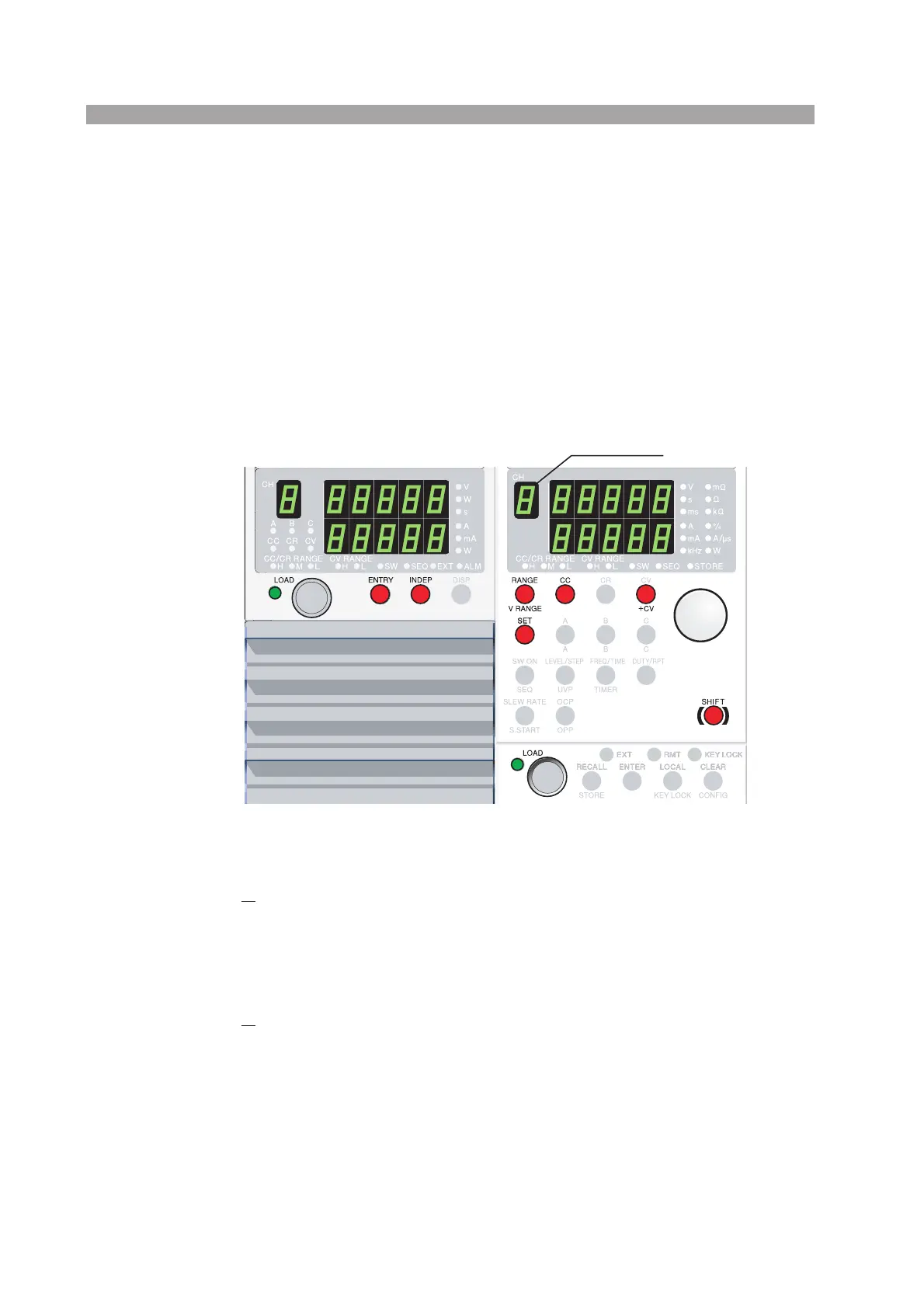

Fig. 4-3 Keys used in CC mode
■ Procedure
1. Select the channel.
Press the ENTRY key of the desired channel.
The ENTRY key of the channel blinks.
The channel display of the frame shows the selected channel number,
and the settings of the channel can be changed.
2.
Set the operation mode.
Press the CC, CR , or CV key.
The selected key illuminates and the operation mode is entered.
If you wish to add CV mode to CC or CR mode, press the +CV (SHIFT + CV)
key. To clear +CV mode, press the +CV (SHIFT + CV) key again.
Load unit Frame
Channel display
