PLZ-U Installation and Preparation 2-15
2.7.2 Connection to the Load Input Terminal on the Rear
Panel
• Do not touch the load input terminal while the PLZ-U is turned ON, as it
may lead to electric shock. In addition, be sure to use the load input termi-
nal cover.
• The load input terminals on the front and rear panels are coupled inside
the PLZ-U. A voltage applied to one end will appear at the other end.
• Do not connect equipment to the load input terminals on the front and rear
panels simultaneously, as it can cause damage.
• There is a danger of overheating. Attach crimping terminal to the wire and
use the set of screws that came with the package for connection.
■ Connection procedure of the load input terminal on the rear
panel
1. Turn off the POWER switch.
2.
Check that the output of the equipment under test is off.
3.
Connect the load wire to the load input terminal on the rear panel (Fig.
2-11).
4.
Attach the load input terminal cover on the rear panel. For details on
how to use the terminal cover, see Fig. 2-12 and Fig. 2-13.
5.
Check the polarity of the connection and connect the load wire to the
output terminal of the equipment under test.

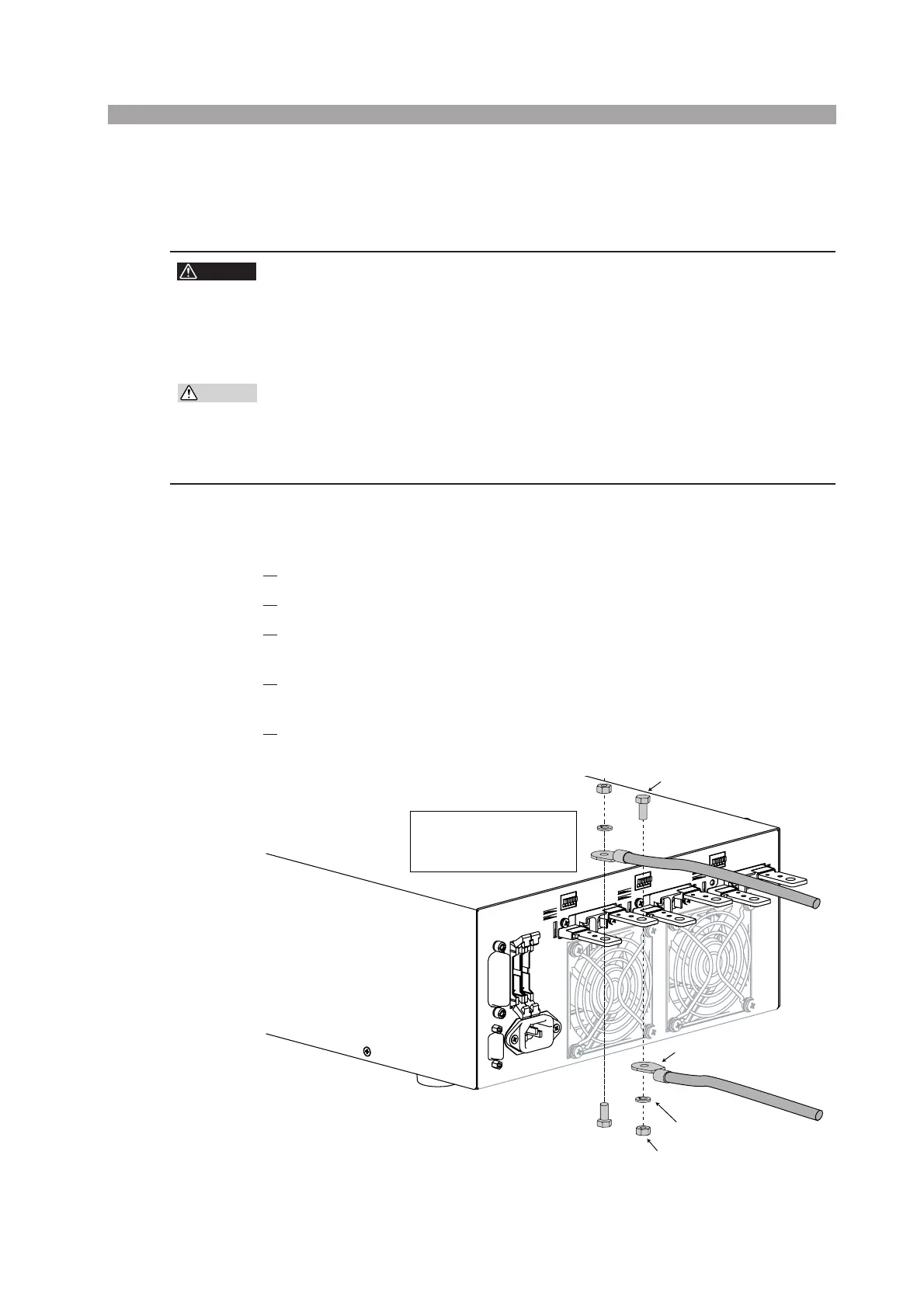

Fig. 2-11 Connection to the load input terminal on the rear panel
WARNING
CAUTION
Bolt (M6)
Spring washer (M6)
Nut (M6)
Crimp terminal
Be sure to use the set
of screws provided
with the package.
To Next Page
