PLZ-U Application Operation 5-31
5.12 Setup Memories
The setup memory can save up to four sets of settings indicated below. Saving and
recalling are done on all channels simultaneously.
■ Settings that are saved
Below are the settings that are saved to the setup memory.
• Operation mode (CC, CR, CV, and enabled/disabled condition of +CV)
• Current, resistance, or voltage value present at the time of saving
• Range setting (RANGE/VRANGE)
• Slew rate value (SLEW RATE)
• Switching frequency, duty cycle, and level (FREQ, DUTY, and LEVEL)
• Soft start
• Configuration setting (CONFIG number 2 to 7)
• Contents of ABC preset memories (A/B/C)
• Auto load off timer
• Sequence
For factory default settings, see section 5.13.3, “Factory Default Settings of Setup
Memories.”

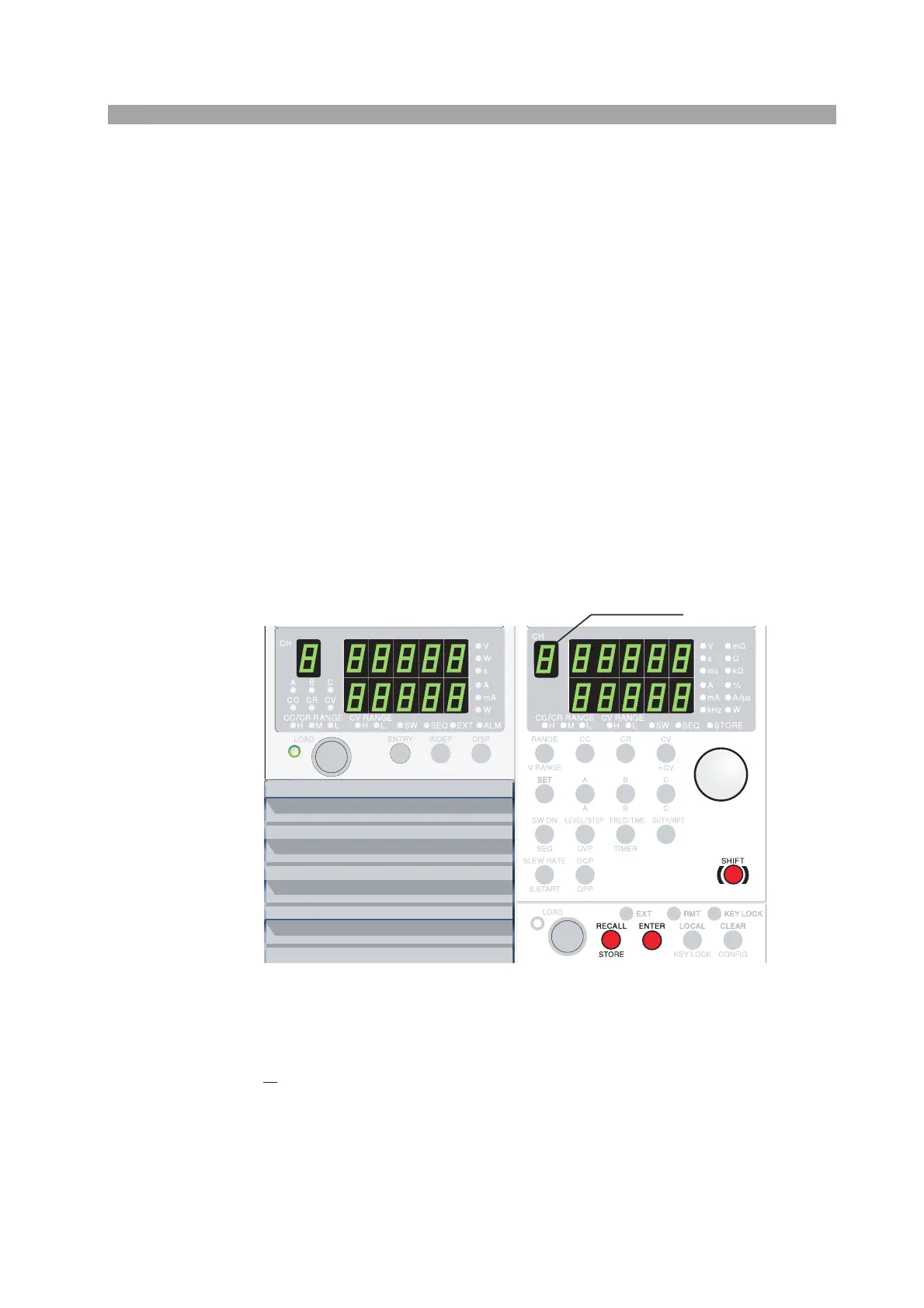

Fig. 5-23 Keys for the setup memory
Saving to the memory
1. Press the STORE (SHIFT + RECALL) key.
The display switches to the setup memory number display. The STORE key
and STORE indicator illuminate.
Load unit
Frame
Channel display
To Next Page
