3-2 Names and Functions of Parts PLZ-U
3.1 Front Panel
• Do not touch the load input terminal while the PLZ-U is turned ON, as it
may lead to electric shock. In addition, be sure to use the load input termi-
nal cover.
• The load input terminals on the front and rear panels are coupled inside
the PLZ-U. A voltage applied to one end will appear at the other end.
• Do not connect equipment to the load input terminals on the front and rear
panels simultaneously, as it can cause damage.
• Be sure to attach the blank panels to unused slots.
• Avoid using the PLZ-U in a dusty environment or an environment with poor
ventilation.
• Do not obstruct the air inlet on the front panel and the air outlet on the rear
panel.
3.1.1 Frame

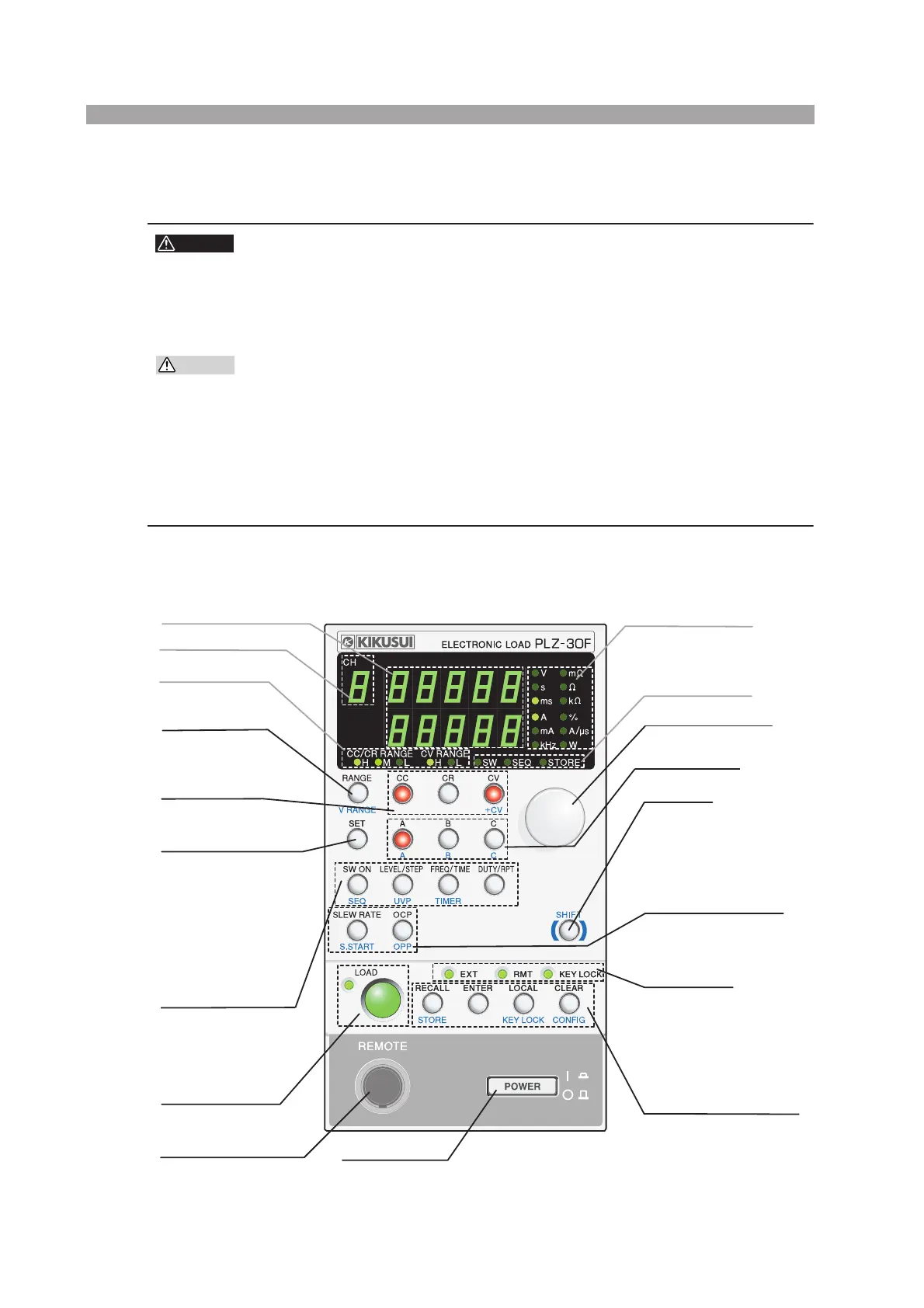

Fig.3-1 Frame front panel
WARNING
CAUTION
[5] RANGE/
V RANGE
[1] POWER
[6] SET
[8] SHIFT
[17]
[17-1] EXT
[17-3] KEY LOCK
[18-1] RECALL/STORE
[18]
[18-2] ENTER
[18-4] CLEAR/CONFIG
[17-2] RMT
[9] Range indicator
[10] Channel display
[11] Setting display
[12] Unit indicator
[13-1]SW
[14] A,B,C
[16]
[16-1] SLEW RATE/
S.STAT
[16-2] OCP/OPP
[15-1] SW ON/SEQ
[15-2] LEVEL/STEP/
UVP
[15-3] FREQ/TIME/
TIMER
[15-4] DUTY/RPT
[15]
[13]
[13-2]SEQ
[13-3]STORE
[7] Rotary knob
[2] REMOTE
[3] LOAD
[4-1] CC
[4-2] CR
[4-3] CV/+CV
[4]
[18-3] LOCAL/
KEY LOCK
