PLZ-U Names and Functions of Parts 3-11
3.2 Rear Panel
• Do not touch the load input terminal while the PLZ-U is turned ON, as it
may lead to electric shock. In addition, be sure to use the load input termi-
nal cover.
• The load input terminals on the front and rear panels are connected in par-
allel inside the PLZ-U. A voltage applied to one end will appear at the other
end.
• The remote sensing terminals on the front and rear panels are connected
in parallel inside the PLZ-U. A voltage applied to one end will appear at the
other end.
• Do not connect equipment to the load input terminals on the front and rear
panels simultaneously, as it can cause damage.
• Be sure to attach the blank panels to unused slots.
• Avoid using the PLZ-U in a dusty environment or an environment with poor
ventilation.
• Do not obstruct the air intake on the front panel and air exhaust on the rear
panel with objects. In particular, allow at least 20 cm of space behind the
PLZ-U.

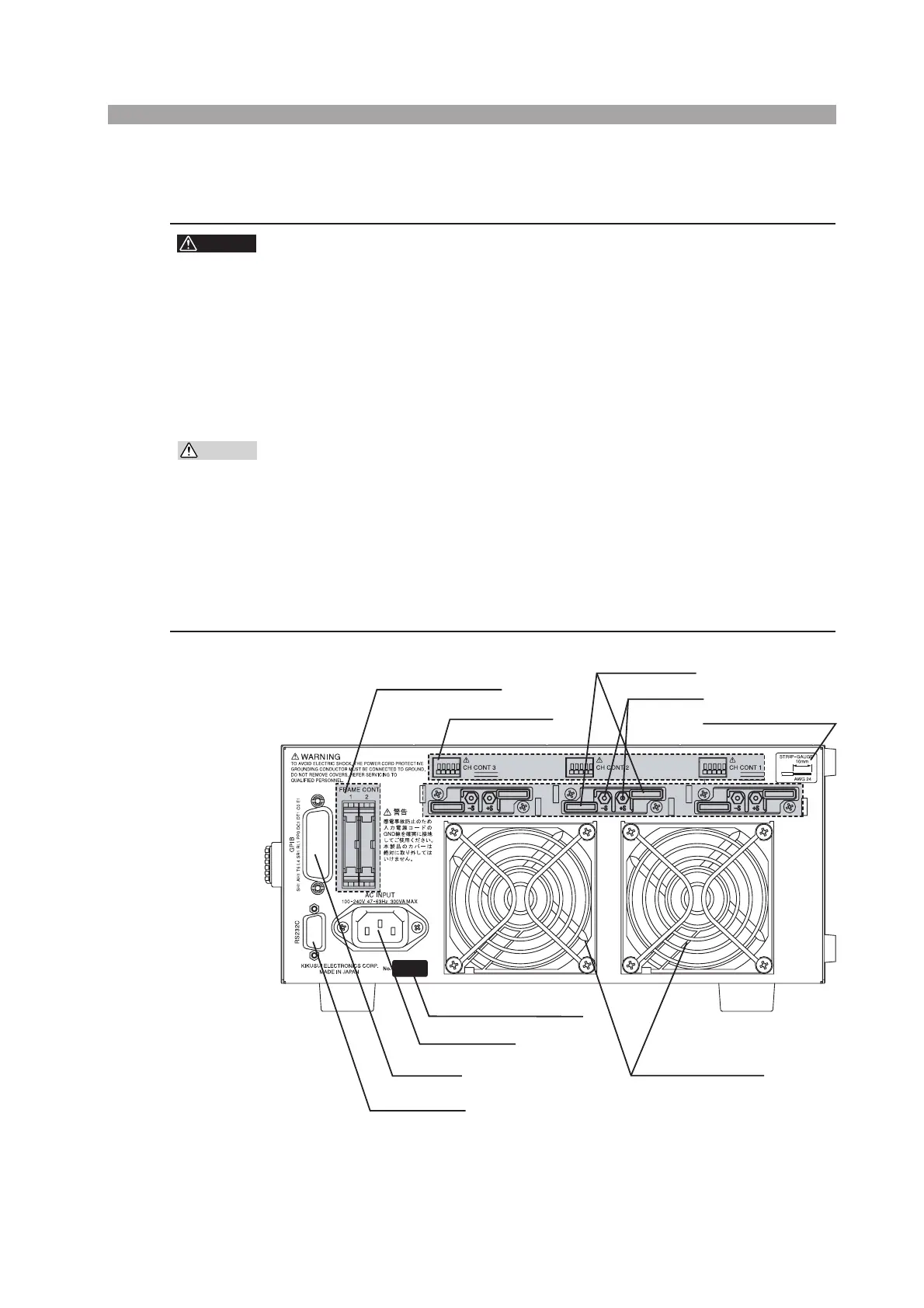

Fig. 3-3 PLZ-30F rear panel (when load units are installed)
WARNING
CAUTION
[1] DC INPUT
[2] +S ,
–S
[8] FRAME CONT
[9] CH CONT
[10] Strip gauge
[7] RS-232C
[6] GPIB
[5] AC INPUT
[4] Manufacturing number
[3] Air outlet
To Next Page
