PLZ-U Application Operation 5-7
5.4 Setting the Slew Rate
The slew rate defines the slope at which the current changes when the current is
drastically changed such as in a transient response test. On the PLZ-U, you set the
amount of change in the current per unit time according to the CC/CR range.
The slew rate setting does not apply to current that flows when the load is turned on.
■ Procedure

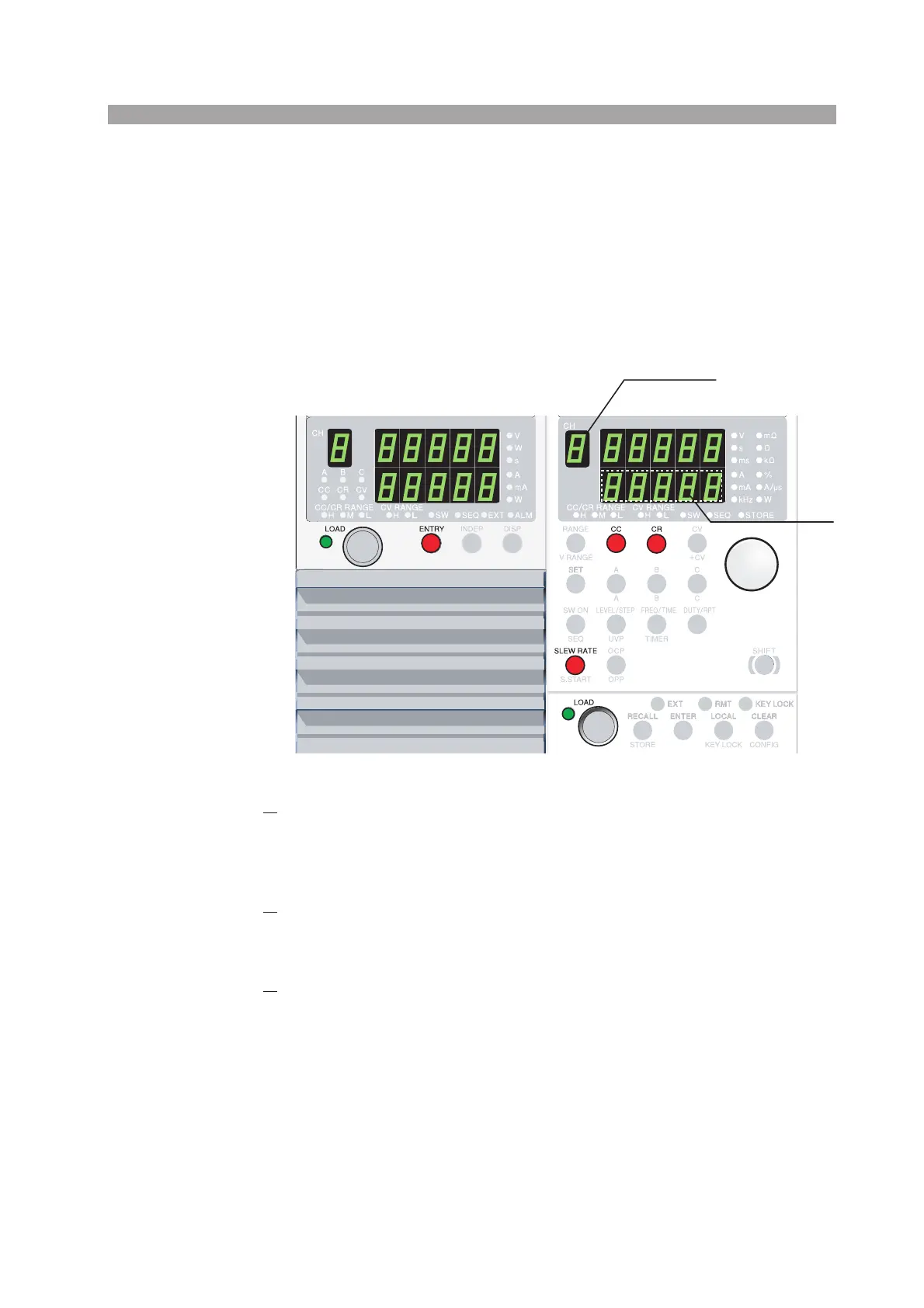

Fig. 5-6 Keys for the slew rate
1.
Select the channel.
Press the ENTRY key of the desired channel.
The channel display of the frame shows the selected channel number,
and the settings of the channel can be changed.
2.
Switch to slew rate setting.
Press the SLEW RATE key.
The SLEW RATE key illuminates, and the “A/us” unit LED illuminates.
3.
Select the slew rate.
Turn the rotary knob to show the desired slew rate.
To change the slew rate of another channel, press the ENTRY key of the
desired channel to switch the channel display.
