Kikusui PLZ-U Series User Manual

3-8 Names and Functions of Parts PLZ-U
3.1.2 Load Unit (Channel)

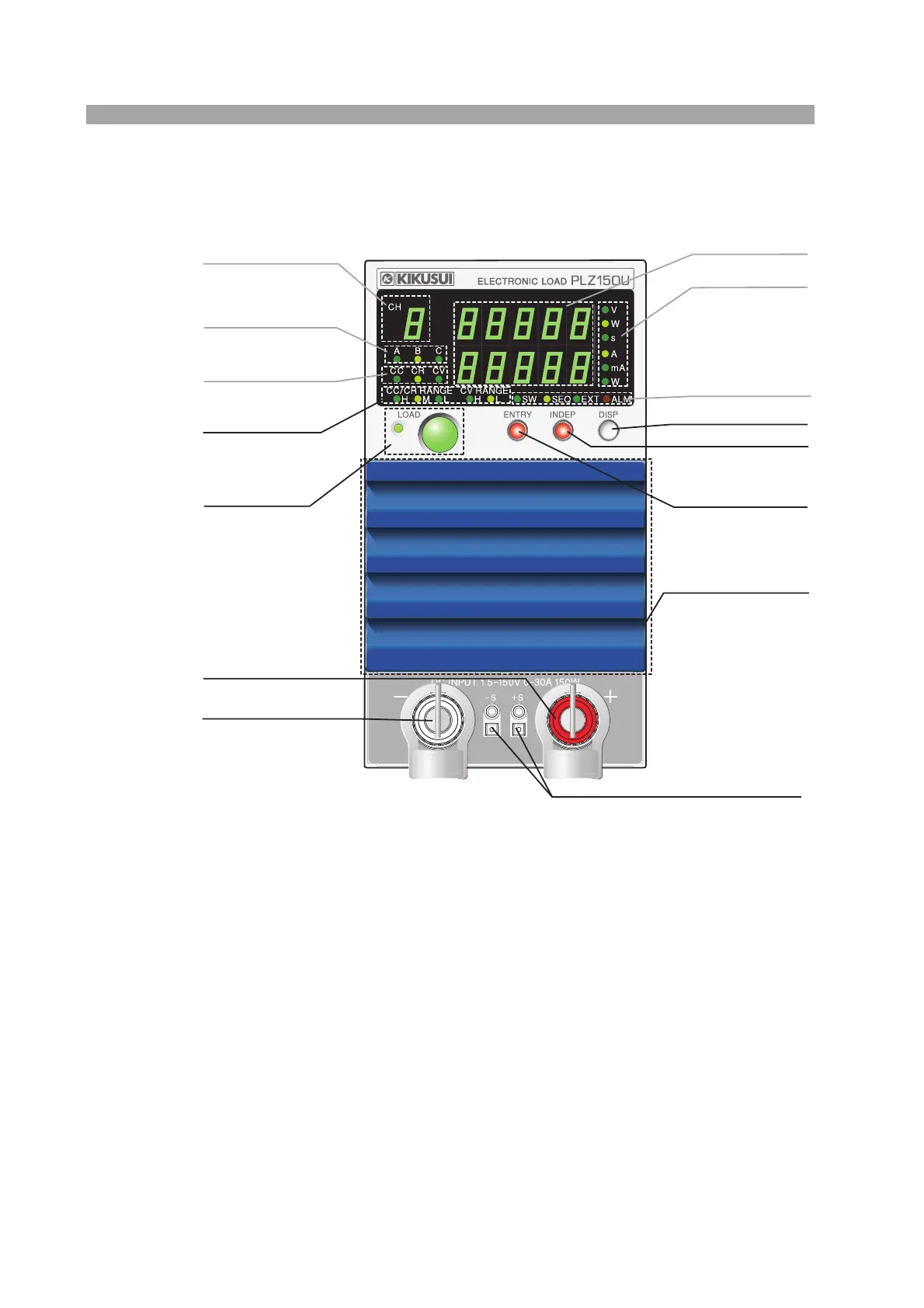

Fig. 3-2 Front panel (load unit)
[1] DC INPUT (load input terminal on the front panel)
Terminals used to connect the equipment under test to the PLZ-U. The load input
terminals are located on the front and rear panels, and they are connected in parallel
inside the PLZ-U.
[2] Front panel remote sensing terminal
Terminals used to connect the sensing wires. The remote sensing terminals are
located on the front and rear panels, and they are connected in parallel inside the
PLZ-U.
[3] LOAD key
Turns on/off the load on each channel. When the load is turned on, the LOAD LED
illuminates.
[4] Range indicator
The LED indicating the range of CC, CR, or CV mode illuminates.
[14] Air inlet
(Louver)
[2] Front remote sensing terminal
[1] DC INPUT(–)
[1] DC INPUT(+)
[3] LOAD
[4] Range indicator
[5] Operation mode
indicator
[6] ABC preset memory
indicator
[7] Channel display
[8] Measured value
display
[9] Unit indicator
[10-1] SW
[10]
[10-2] SEQ
[10-3] EXT
[10-4] ALM
[11] DISP
[12] INDEP
[13] ENTRY
