Kinco FV20 Series User Manual

36
36
Preset frequency only determined by main
reference frequency, auxiliary reference frequency
is 0Hz by default.
1：Set by AI1 terminal
The auxiliary frequency is set by AI1 terminal.
2：Set by AI2 terminal
The auxiliary frequency is set by AI2 terminal.
3： Set by Keyboard potentiometer
The auxiliary frequency is set by the keyboard
potentiometer.
4：Set by DI (PULSE）terminal
The auxiliary frequency determined by the
frequency of input pulse and can be set only by X6
terminal.
5：Set by output frequency of PID.
A2.01 Main and auxiliary reference
frequency calculation
0～3【0】
0：”+”
Preset frequency=Main+auxiliary.
Set preset frequency as 0Hz when the polarity of
preset frequency is opposite to main frequency.
1：”－”
Preset frequency=Main-auxiliary.
Set preset frequency as 0Hz when the polarity of
preset frequency is opposite to main frequency.
2： MAX
Set the max. absolute value between Main and
auxiliary reference frequency as preset frequency.
Set Main reference frequency as preset frequency
when the polarity of auxiliary frequency is opposite
to main frequency.
3： MIN
Set the min. absolute value between Main and
auxiliary reference frequency as preset frequency.
Set preset frequency as 0Hz when the polarity of
auxiliary frequency is opposite to main frequency.
A2.02 UP/DN rate
0.01~99.99Hz/s【1.00】
A2.02 is used to define the change rate of reference
frequency that is changed by terminal UP/DN or ▲/▼
key.

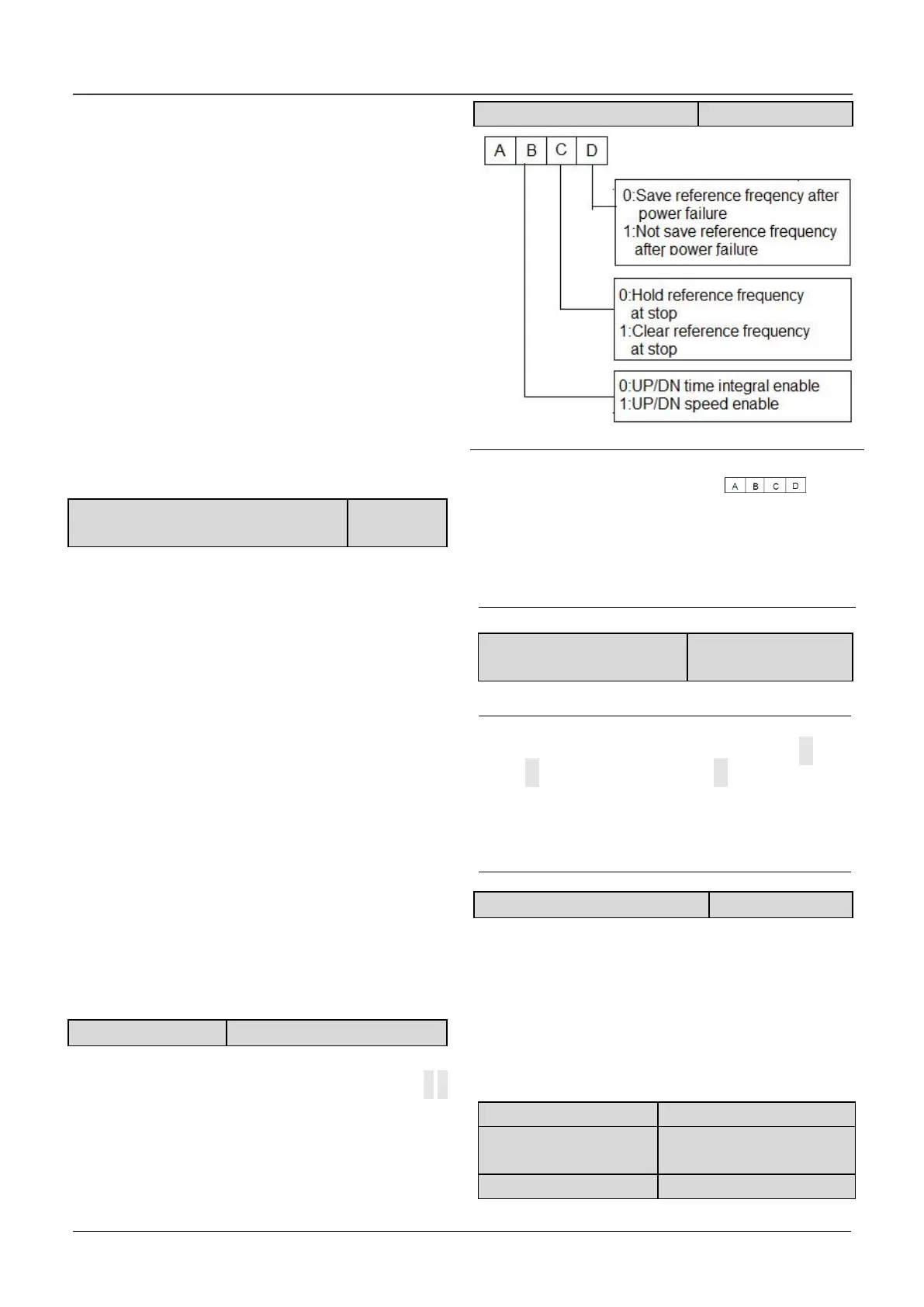

A2.03 UP/DN regulating control
000~111H【000】
Note：
In this manual, there are many . Their
meanings are as following：
A means the thousand’s place of LED display.
B means the hundred’s place of LED display.
C means the ten’s place of LED display.
D means the unit’s place of LED display.
A2.04 Jog operatin
frequency
0.01～50.00【5.00Hz】
A2.04 is used to set the jog operating frequency.
Note：
1. Jog operation can be controlled by panel(M key).
Press M key to run and release M to stop with stop
method (A1.05).
2. Jog operation can also be controlled by terminals.
Set jog forward and jog reserve function for DI to
make jog operation.
A2.05 Interval of Jog operation
0.0～100.0s【0.0】
Interval of Jog operation (A2.05) is the interval from
the time when the last Jog operation command is
ended to the time when the next Jog operation
command is executed.
The jog command sent during the interval will not be
executed. If this command exists, until the end of
the interval, will it be executed.
A2.06 Skip frequency 1
0.00～300.0Hz【0.00Hz】
A2.07 Range of skip
frequency 1
0.00～30.00Hz【0.00Hz】
A2.08 Skip frequency 2
0.00～300.0Hz【0.00Hz】
