Kintech Engineering ORBIT 360 - Installation (Logger Side); Fig. 65. Satellite: BGAN; Fig. 66. Direct COM Terminals: 44 and 43

KINTECH ENGINEERING
ORBIT 360 | USER GUIDE
120

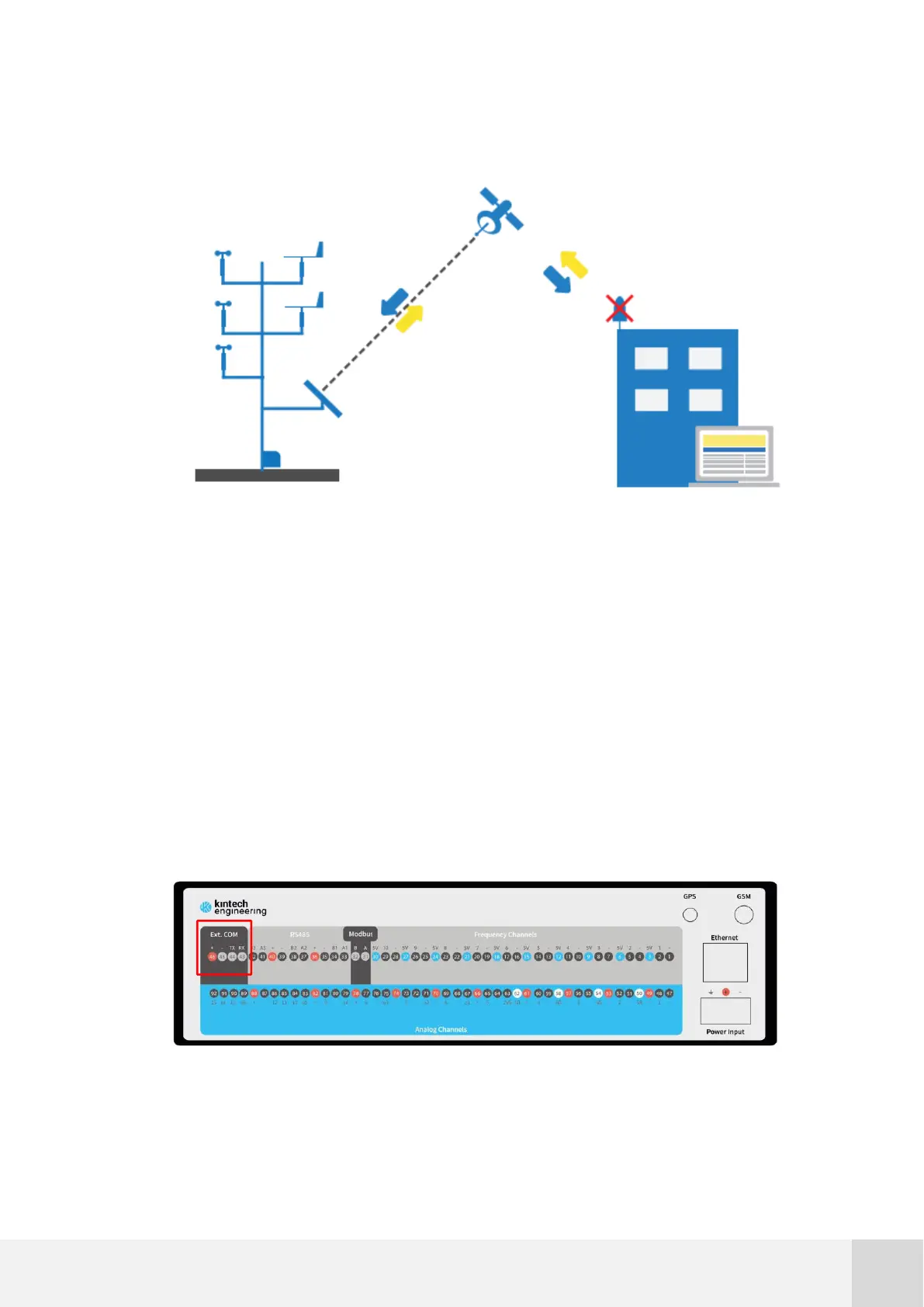

Fig. 65. Satellite: BGAN
9.2.2.2 Installation (logger side)
The BGAN antenna must be oriented to a particular position that depends on the exact
location. Detailed instructions are provided together with the purchased equipment.
The BGAN modem needs to be connected to the Ext. Com RS-232 terminals 44 and 43.
The modem can be powered directly from the logger terminals 46 and 46.
Fig. 66. Direct COM terminals: 44 and 43
