KINTECH ENGINEERING
ORBIT 360 | USER GUIDE
39

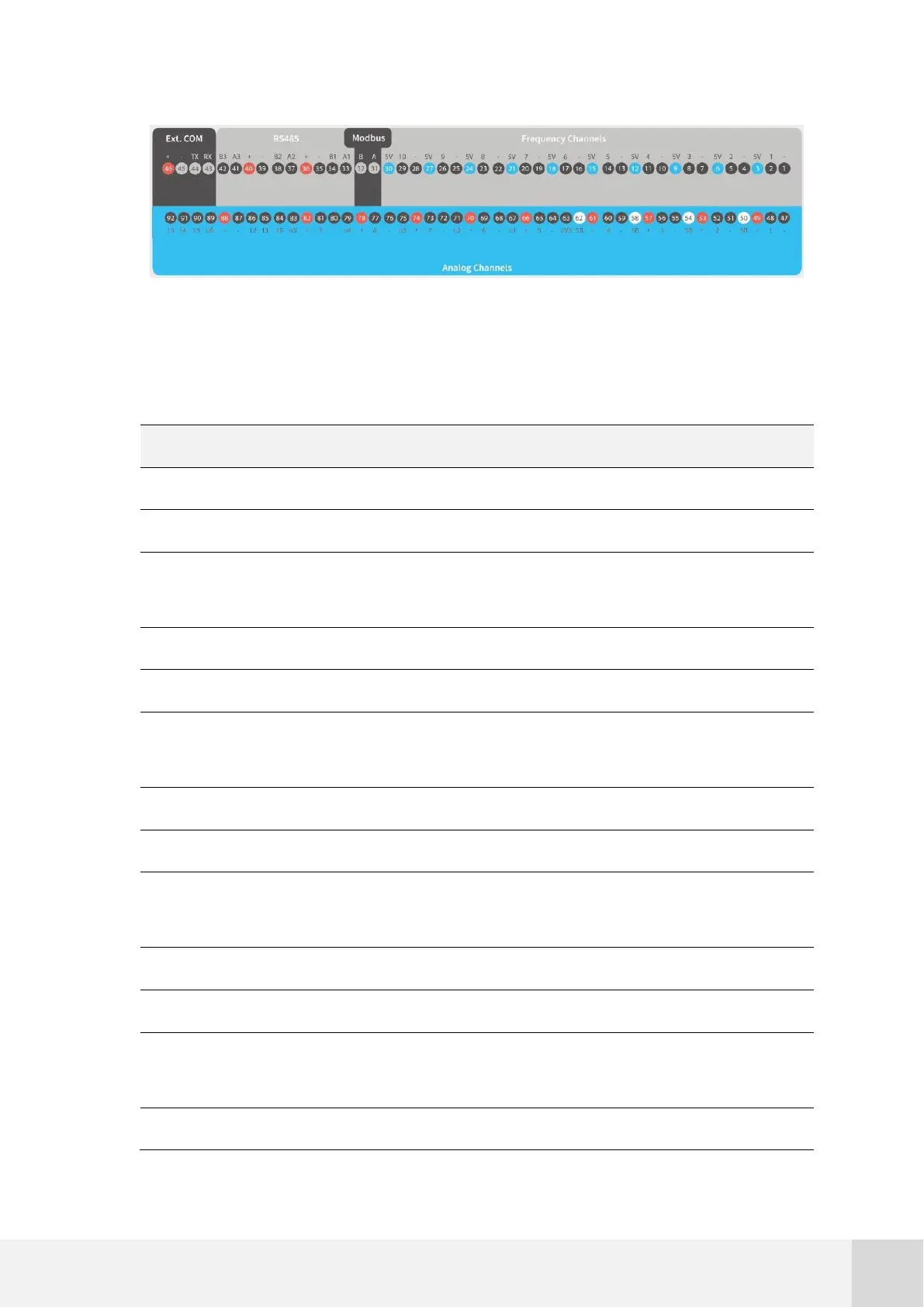

Fig. 10. Orbit 360 terminal map drawing
The complete terminal description can be consulted on Table 2.
Terminal #
Label
Function
Details
1
-
Sensor GND
Sensor supply(-) / signal reference
2
1
Sensor signal
Input channel 1 (freq. / pulses)
3
5V
5V DC supply
Continuous power supply limited to
40mA for Thies FC, K611P, K620A…
4
-
Sensor GND
Sensor supply(-) / signal reference
5
2
Sensor signal
Input channel 2 (freq. / pulses)
6
5V
5V DC supply
Continuous power supply for Thies FC,
K611P, K620A…
7
-
Sensor GND
Sensor supply(-) / signal reference
8
3
Sensor signal
Input channel 3 (freq. / pulses)
9
5V
5V DC supply
Continuous power supply for Thies FC,
K611P, K620A…
10
-
Sensor GND
Sensor supply(-) / signal reference
11
4
Sensor signal
Input channel 4 (freq. / pulses)
12
5V
5V DC supply
Continuous power supply for Thies FC,
K611P, K620A…
13
-
Sensor GND
Sensor supply(-) / signal reference
