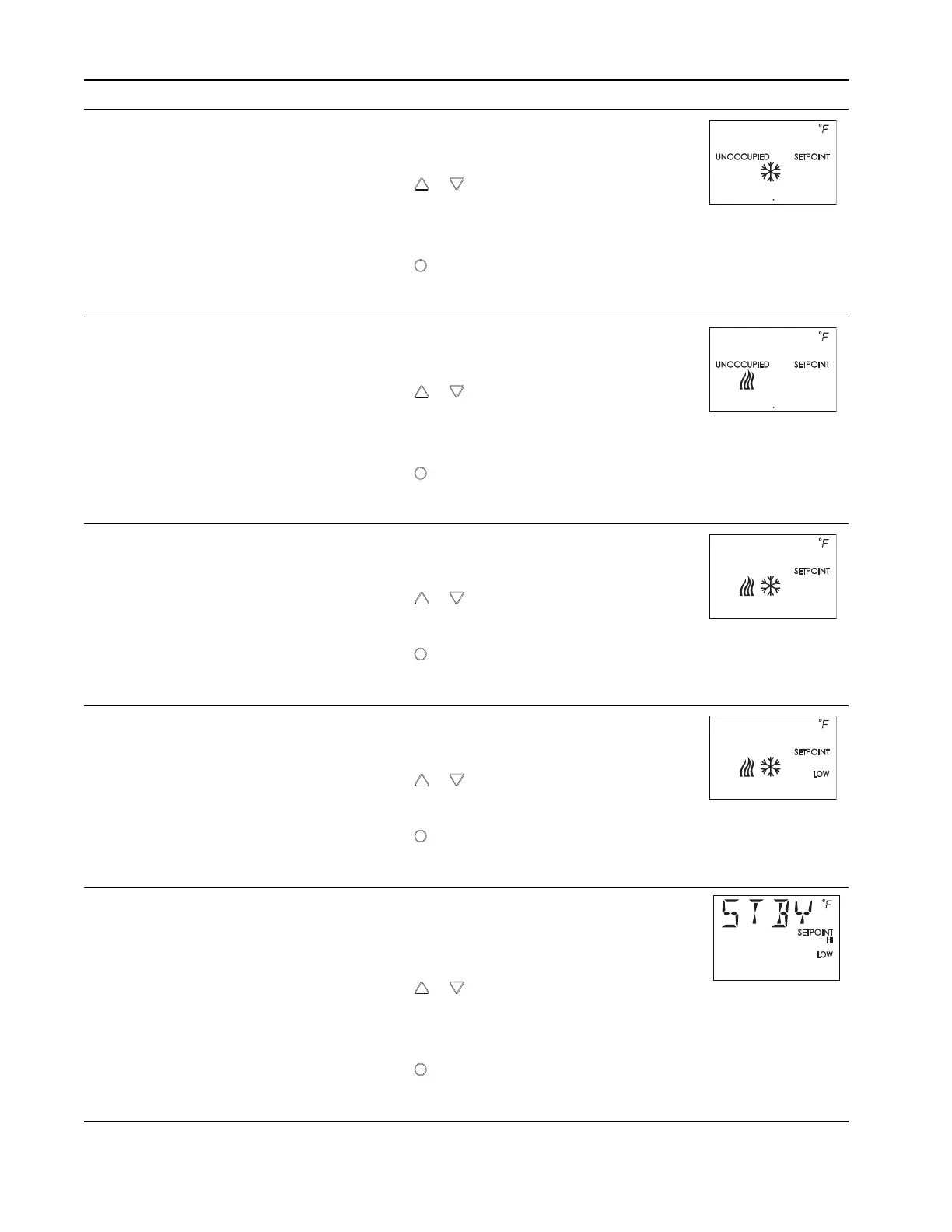

Procedure Detailed steps Sensor display
7 Set the unoccupied cooling
setpoint.
This setpoint is used as the active setpoint when the
space is unoccupied.
1.
Press the or buttons to set the unoccupied
cooling setpoint. The setpoint will change in 0.5°
increments.
2.
Press the
button to save the setpoint and advance
to the next function.
8 Set the unoccupied heating
setpoint.
This setpoint is used as the active setpoint when the
space is unoccupied.
1.
Press the or buttons to set the unoccupied
heating setpoint. The setpoint will change in 0.5°
increments.
2.
Press the
button to save the setpoint and advance
to the next function.
9 Set the supply air temperature
changeover setpoint.
Not used in all models.
This setpoint sets the supply air temperature at which
the controller will change between heating to cooling.
1.
Press the or buttons to set the changeover
setpoint. The setpoint will change in 1° increments.
2.
Press the
button to save the setpoint and advance
to the next function.
10Set the minimum temperature
differential setpoint.
The minimum allowable temperature value between the
cooling and heating setpoints.
1.
Press the or buttons to set the differential
setpoint. The setpoint will change in 1° increments.
2.
Press the
button to save the setpoint and advance
to the next function.
11Set the standby differential
setpoint.
The standby setpoint is calculated by adding or
subtracting the offset value to or from the value of the
occupied setpoint.
1.
Press the or buttons to set the standby
differential setpoint. The setpoint will change in 1°
increments.
2.
Press the
button to save the setpoint and advance
to the next function.
Procedure to set the temperature setpoints (continued)
SimplyVAV Section 4: Configuring the controllers
Revision H 25
