Section 11

Parts List

20479307

2-2012/Rev 04

11-7

Table 11-3

Hydraulic Cartridge Seal

05130091

Item

Part

Number Description Quantity Item

Part

Number Description Quantity

1 05130109 Seal Bushing 1 7 05129515 Backup Ring, 1.127 x 0.891 1

2 05015060 Packing Ring W/O-Ring 2 8 05027255 Packing Seal, U-Cup W/O-Ring 1

3 10193522 O-Ring, 1.19 x 1.38 x .09 1

4 05050760 Backup Ring, 1.188 x 1.375 1

80084759 Rebuild Kit

5 05129481 O-Ring, 1.0 x 1.13 x .06 1 Includes Items 2-8

6 05013024 O-Ring, 1.25 x 1.38 x .06 1

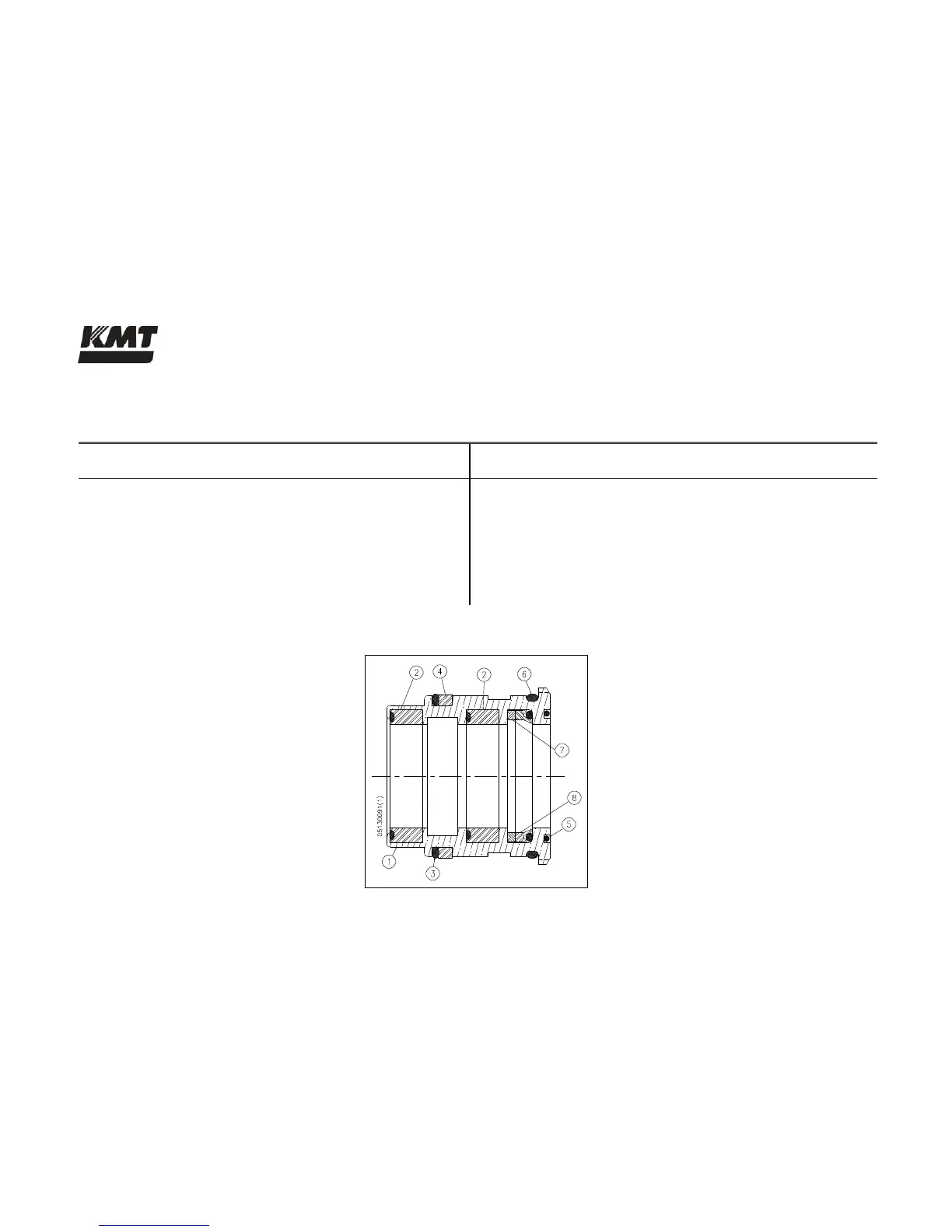

Figure 11-3: Hydraulic Cartridge Seal
