Section 11

Parts List

20479307

2-2012/Rev 04

11-8

Table 11-4

Sealing Head Assembly

20481005

Item

Part

Number Description Quantity Item

Part

Number Description Quantity

1 20481009 Sealing Head 1 7 05147863 Compression Spring 1

2 20453619 Inlet Poppet Valve 1 8 20474391 Poppet Retainer 1

3 05116777 Gland 1 9 05116751 Poppet Pin 1

4 05112768 Seat 1

5 05116561 Discharge Poppet Valve 1

20489495 Rebuild Kit

6 20474395 Poppet Retainer Screw 1 Includes items 2, 4, 5, 6, 7 and 9

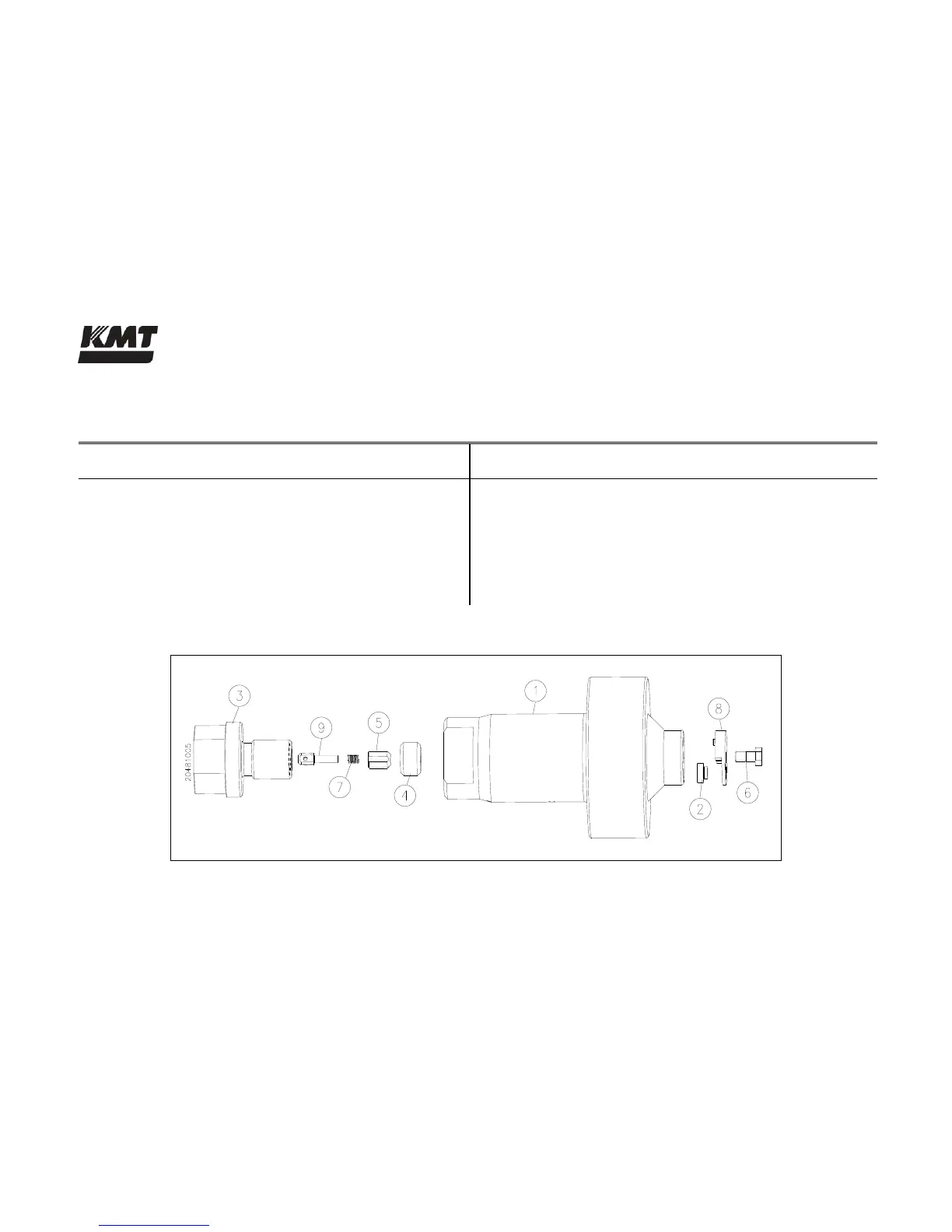

Figure 11-4: Sealing Head Assembly
